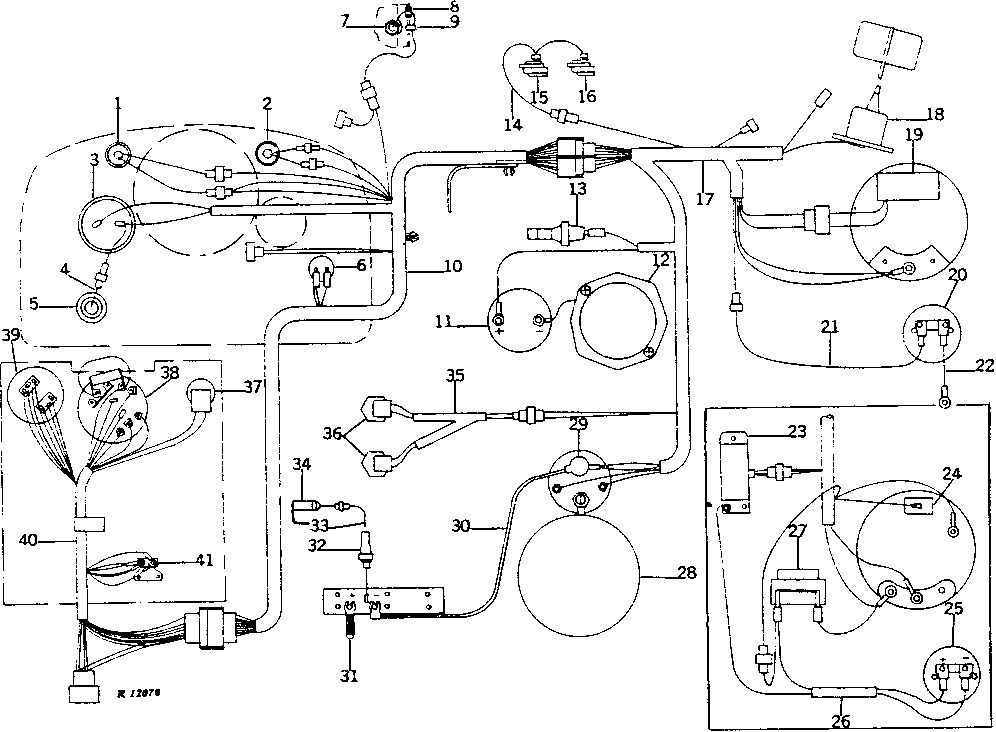

ALTERNATOR, IGNITION AND STARTER WIRING (GASOLINE) (SERIAL NO. 68000- ) [02D15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR27944	1	LAMP	-
2	AT14699	1	INDICATOR LAMP	-
3	R34262	1	GAUGE	-
4	-	1	Part 4	305 MM (12") (MAKE FROM R32007, R32018, R32025 AND R32027 FROM AR84006 WIRE REPAIR KIT) (SUB FOR R34585)
5	AR46079	1	LIGHTER	(SUB FOR AR34556)
6	AR21823	1	SWITCH	(SUB FOR AR20235)
7	AR33479	1	LAMP	-
8	A3411R	1	Grommet	DASH LAMP LEAD TO DASH REINFORCEMENT
9	F2084R	1	CLIP	DASH LAMP LEAD TO DASH
10	AR44953	1	WIRING HARNESS	(SUB FOR R39641)
10	R27539	1	CLAMP	INSTRUMENT HARNESS TO CONTROL SUPPORT
10	21H1029	1	Screw	5/16" X 3/4", INSTRUMENT HARNESS CLAMP TO CONTROL SUPPORT
10	12H291	1	Lock Washer	INTERNAL TOOTH, 0.312" INSTRUMENT HARNESS CLAMP TO CONTROL SUPPORT SCREW
10	14H785	1	Nut	5/16", INSTRUMENT HARNESS CLAMP TO CONTROL SUPPORT SCREW
10	T13814	1	Clamp	INSTRUMENT HARNESS TO L.H. REAR DASH TO CONTROL SUPPORT SCREW
10	B1828R	1	Bushing	INSTRUMENT HARNESS TO L.H. REAR DASH TO CONTROL SUPPORT SCREW
10	24H1302	1	Washer	13/32" X 11/16" X 0.035", INSTRUMENT HARNESS TO L.H. REAR DASH TO CONTROL SUPPORT SCREW
11	AR46064	1	ELECTRICAL COIL	WITH CLAMP (6-VOLT) (SUB FOR AM791T)
12	AR11162	1	IGNITION DISTRIBUTOR	(DELCO-REMY NO. 1112624)
13	AR27977	1	TOUCH SWITCH	-
14	R39650	1	WIRING HARNESS	( R39650 NO LONGER AVAILABLE)
15	R11276	1	HORN	(LOW NOTE, 12-VOLT)
16	R64700	1	High Note Horn	(HIGH NOTE, 12-VOLT) (SUB FOR R11277)
17	R39646	1	WIRING HARNESS	-
17	AR40454	1	WIRING HARNESS	-
17	R44302	5	Tie Band	ENGINE HARNESS TO STEERING OIL PIPES, (SUB FOR R27457)
17	R32320	2	Clip	ENGINE HARNESS TO CONTROL SUPPORT
17	R32320	1	Clip	ENGINE HARNESS TO REGULATOR MOUNTING BRACKET
18	AR27730	1	SENDER	-
19	AR40420	1	ALTERNATOR	LESS PULLEY, (12-VOLT) (MOTOROLA)
20	AR39848	1	HOUR METER	-
21	-	1	Part 32	457 MM (18") (MAKE FROM R32007, R32024, R32025 AND(2) R32027 IN AR84006 WIRE REPAIR KIT) (SUB FOR AR40500)
22	-	1	Part 33	154 MM (6") (MAKE FROM R32007, R32025, R32021 AND R32027 IN AR84006 WIRE REPAIR KIT) (SUB FOR AR40501)
23	R15018	1	REGULATOR	(SUB AR40781 REGULATOR WITH MISC. HARDWARE)
24	AR15009	1	ALTERNATOR	LESS PULLEY, (12-VOLT) (MOTOROLA)
25	AR39848	1	HOUR METER	-
26	AR40498	1	WIRING HARNESS	(SUB FOR R39664)
27	R15005	1	RESISTOR	ENGINE HARNESS TO ALTERNATOR
28	AR11160	1	STARTER MOTOR	(12-VOLT) (DELCO-REMY) (SUB FOR AR11300)
29	R30964	1	Cover	-
30	R39717	1	CABLE	POSITIVE L.H.
30	R34557	1	Clamp	CABLE TO CLUTCH HOUSING
30	R34557	1	Clamp	CABLE TO BATTERY BOX
30	19H2284	1	Cap Screw	3/8" X 7/8", CABLE CLAMP TO BATTERY BOX
30	12H304	1	Lock Washer	3/8", CABLE CLAMP TO BATTERY BOX
31	AT18702	1	GROUND CABLE	NEGATIVE L.H. (SUB FOR AR27367)
31	19H1936	1	Cap Screw	3/8" X 3/4", GROUND STRAP TO BATTERY BOX
31	12H304	1	Lock Washer	3/8", GROUND STRAP TO BATTERY BOX SCREW
31	14H812	1	NUT	3/8", GROUND STRAP TO BATTERY BOX SCREW
32	AR26756	1	WIRING LEAD	WITH FUSE
33	-	1	Part 51	-
34	AR26571	1	SOCKET	-
34	21H1019	2	SCREW	0.190" X 1/2", FOR ATTACHING ELECTRICAL OUTLET
34	12H295	2	Lock Washer	INTERNAL TOOTH, NO. 10 FOR ATTACHING ELECTRICAL OUTLET
34	14H778	2	Nut	0.190", FOR ATTACHING ELECTRICAL OUTLET
34	AR40710	1	PLUG	WITH CABLE, (SUB FOR AA5691R)
34	AA5692R	1	ELEC. CONNECTOR TERMINAL	LESS CABLE
35	R34869	1	WIRING HARNESS	SAFETY SWITCH TO ENGINE HARNESS, (POWER SHIFT)
35	R33823	1	WIRING HARNESS	SAFETY SWITCH TO ENGINE HARNESS, (COLLAR SHIFT)
35	R44302	2	Tie Band	SAFETY HARNESS TO BATTERY CABLE, (SUB FOR R1646R)
35	R44302	2	Tie Band	SAFETY HARNESS TO BATTERY CABLE, (SUB FOR R27457)
36	R36265	1	SWITCH	(1 USED COLLAR SHIFT) (2 USED POWER SHIFT)
37	R39554	1	Switch	-
38	R39551	1	SWITCH	-
39	AR39505	1	ROTARY SWITCH	(SUB FOR R39552)
40	R39555	1	WIRING HARNESS	CONTROL SUPPORT HARNESS TO INSTRUMENT HARNESS
41	AR28403	1	CIRCUIT BREAKER	-
