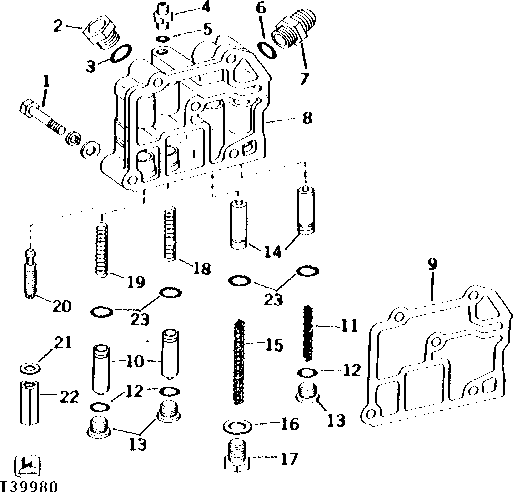

TRANSMISSION OIL FILTER VALVE HOUSING (COLLAR SHIFT) [01J02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3197	1	CAP SCREW	HS, SAE 8, 7/16" X 4"
1	19H2500	1	CAP SCREW	HS, SAE 8, 7/16" X 1-3/8"
1	24H1325	5	Washer	15/32" X 59/64" X 0.065"
1	12H293	5	Lock Washer	7/16"
1	19H2227	1	CAP SCREW	HS, SAE 8, 7/16" X 2-1/2"
1	19H2055	2	CAP SCREW	HS, SAE 8, 7/16" X 2-1/4"
2	R33610	1	FITTING	-
3	B2762R	1	O-Ring	-
4	AR30762	1	Tee Fitting	(SUB FOR R27272)
5	R26286	1	O-Ring	-
6	U12547	1	O-Ring	(SUB FOR F3171R)
7	R27267	1	Fitting	-
8	AR52630	1	HOUSING	(ALSO ORDER (2) R57561 AND (2) R33259) (MARKED R49200) (SUB FOR AR45542) (MARKED R40664 OR R44006)
8	R39112	1	Fitting	-
8	R26448	1	O-Ring	(SUB FOR R26375)
8	400R	2	Ball	-
9	R49758	1	GASKET	(SUB FOR R41463)
10	R57559	2	VALVE	(ALSO ORDER R33259) (SUB FOR R33162)
11	R26686	1	SPRING	-
12	R26448	3	O-Ring	(SUB FOR R26375)
13	R36943	3	Fitting	-
14	R57560	2	VALVE	(SUB FOR R49198) (ALSO ORDER R33259)
14	R57561	2	VALVE	(USED WHEN AR52630 HAS BEEN INSTALLED AS A REPLACEMENT PART) (ALSO ORDER R33259) (SUB FOR R49197)
15	R39808	1	SPRING	-
16	R1742R	1	WASHER	-
17	R52589	1	FITTING PLUG	(SUB FOR R33163)
18	R28914	1	SPRING	-
19	R42057	1	Spring	-
20	R39587	1	SET SCREW	-
21	F2846R	1	WASHER	-
22	F2847R	1	NUT	-
23	R33259	4	O-Ring	-

TRANSMISSION OIL FILTER VALVE HOUSING (COLLAR SHIFT) [01J02]

Нет текстового описания
