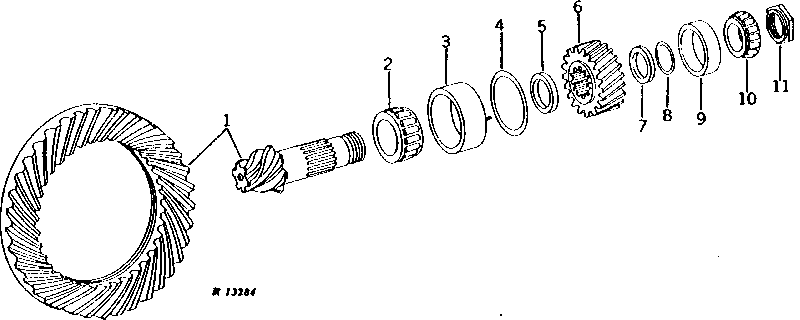

TRANSMISSION DIFFERENTIAL DRIVE (POWER SHIFT) [01H19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR34736	1	BEVEL GEAR DRIVE	(MARKED R34875) SPIRAL BEVEL (56 TEETH), DIFFERENTIAL DRIVE GEAR (9 TEETH) (MARKED R34874 OR R33006) AND BEVEL PINION, WITH SHIMS (MATCHED SET) (WITHOUT DIFFERENTIAL LOCK) (SUB AR56961, THIS APPLICATION)
1	AR34736	1	BEVEL GEAR DRIVE	SPIRAL BEVEL (56 TEETH), DIFFERENTIAL DRIVE GEAR (9 TEETH) (MARKED R34874 OR R33006), AND BEVEL PINION, WITH SHIMS (MATCHED SET) (WITH DIFFERENTIAL LOCK) (SUB AR56962, THIS APPLICATION) (MARKED R34875)
2	JD8973	1	BEARING CONE	-
3	JD8246	1	Bearing Cup	-
4	-	1	Part 5	(A) ( R26227 NO LONGER AVAILABLE) 0.08 MM (.003") STEEL
4	-	1	Part 6	(A) ( R26228 NO LONGER AVAILABLE) 0.13 MM (.005") STEEL
5	R33125	1	BUSHING	-
6	R33097	1	GEAR	-
7	R33121	1	WASHER	-
8	-	1	Part 11	(B) ( R33414 NO LONGER AVAILABLE) (SUB R51196, R51197, (2) R51198, R51199 AND R51200) 0.13 MM (.005") (SUB R51196, R51197, (2) R51198, R51199 AND R51200, THIS APPLICATION)
8	-	1	Part 16	(C) (USE WITH R51200) 0.38 MM (.015") STEEL ( R51199 NO LONGER AVAILABLE)
8	-	1	Part 15	(C) (USE WITH R51200) 0.3 MM (.012") STEEL ( R51198 NO LONGER AVAILABLE)
8	-	1	Part 14	(C) (USE WITH R51200) 0.25 MM (.010") STEEL ( R51197 NO LONGER AVAILABLE)
8	-	1	Part 13	(C) (USE WITH R51200) 0.18 MM (.007") STEEL ( R51196 NO LONGER AVAILABLE)
8	-	1	Part 12	(B) ( R33415 NO LONGER AVAILABLE) (SUB R51196, R51197, (2) R51198, R51199 AND R51200, THIS APPLICATION) 0.25 MM (.010") STEEL
8	-	1	Part 10	(B) ( R33413 NO LONGER AVAILABLE) 0.08 MM (.003") STEEL (SUB R51196, R51197, (2) R51198, R51199 AND R51200, THIS APPLICATION)
9	JD8258	1	Bearing Cup	-
10	JD8971	1	Bearing Cone	-
11	R33219	1	LOCK NUT	(SUB R51196, R51197, (2) R51198, R51199 AND R51200, THIS APPLICATION)
11	R51200	1	Lock Nut	(USED WHEN R51196, R51197, R51198 OR R51199 HAVE BEEN INSTALLED AS REPLACEMENT PARTS)
