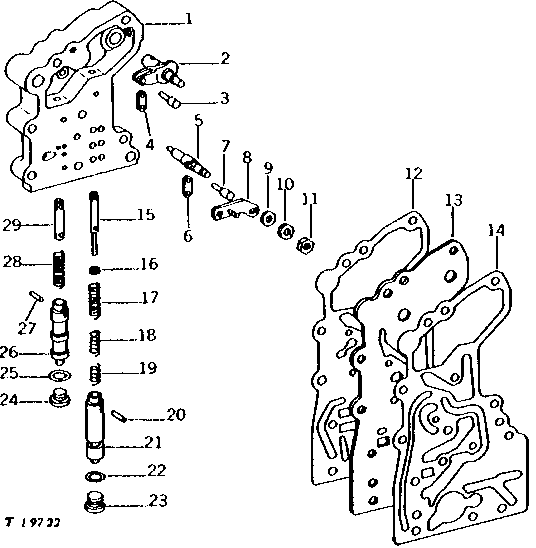

TRANSMISSION CLUTCH VALVE HOUSING, VALVES, AND GASKETS (POWER SHIFT) [01F25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(MARKED R41152) (SUB FOR AR45381, MARKED R44164) (ALSO ORDER 15H558 PIPE PLUG) (SUB AR88040)
2	AR32128	1	SHAFT	-
3	R33145	2	PIN	-
4	R28401	1	LINK	-
5	AR61609	1	SHAFT	(A) (ALSO ORDER AR48689) (SUB FOR AR27720 AND AR48690) (SUB FOR AR98146 AND (2) R28359, THIS APPLICATION)
5	AR98146	1	SHAFT	(A)
6	R28401	1	LINK	-
7	R33145	2	PIN	(A)
8	AR48689	1	ARM	(A) (SUB FOR AR40929)
9	24H1287	1	Washer	(A) 9/32" X 5/8" X 0.065"
10	12H302	1	Lock Washer	(A) 1/4"
11	14H786	1	Nut	(A) 1/4"
12	R98926	1	GASKET	(SUB FOR R33178, R46816 AND R51573)
13	R33164	1	PLATE	-
14	R46815	1	GASKET	(SUB FOR R33177)
15	R33137	1	SHAFT	-
16	R33521	1	Shim	0.68 MM (.030") STEEL (DO NOT USE R56351, THIS APPLICATION)
17	R33173	1	Spring	-
18	R33174	1	SPRING	-
19	R33175	1	SPRING	-
20	34H245	1	Spring Pin	1/8" X 5/8"
21	R33136	1	VALVE	-
22	R26448	1	O-Ring	(SUB FOR R26375)
23	R33138	1	Fitting	-
24	R33138	1	Fitting	(A)
25	R26448	1	O-Ring	(A) (SUB FOR R26375)
26	R47509	1	VALVE	(A) (SUB FOR R41502)
27	34H260	1	SPRING PIN	(A) 5/32" X 5/8"
28	R31725	1	SPRING	(A)
29	R41503	1	SHAFT	-

TRANSMISSION CLUTCH VALVE HOUSING, VALVES, AND GASKETS (POWER SHIFT) [01F25]
