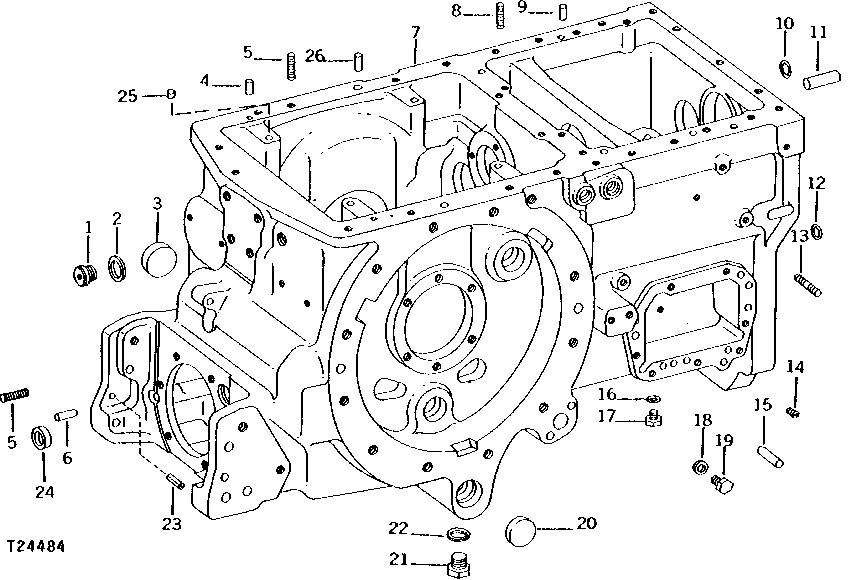

TRANSMISSION CASE (POWER SHIFT) [01G05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27483	1	FITTING PLUG	-
2	H851R	1	WASHER	-
3	R38344	1	Plug	(TRACTORS EQUIPPED WITH 1000 RPM PTO ONLY)
4	R1612R	4	Dowel Pin	-
5	R32101	6	STUD	-
5	R465R	1	STUD	-
6	R48685	2	Dowel Pin	(SUB FOR A120R)
7	-	1	Part 8	( AR41770 MARKED R40580 NO LONGER AVAILABLE) (SUB AR50709) (ALSO ORDER (6) R42411 BRAKE PISTONS) (FOR TRACTORS EQUIPPED WITH DIFFERENTIAL LOCK, ALSO ORDER AT33285 DIFFERENTIAL HOUSING COVER AND (10) R38614 SPECIAL CAP SCREWS)
7	AR50709	1	TRANSMISSION CASE	(MARKED R47090)
8	R32042	3	STUD	-
9	R33703	2	DOWEL PIN	-
10	A4730R	2	O-Ring	-
11	A776R	2	Pin	-
12	R459R	3	O-Ring	-
13	R699R	1	STUD	-
14	15H559	2	Pipe Plug	1/4"
15	C1220R	4	DOWEL PIN	-
16	R26286	6	O-Ring	-
17	R27094	6	Drain Plug	-
18	R51494	1	WASHER	(TRACTORS LESS DIFFERENTIAL LOCK)
19	R27218	1	Fitting Plug	(TRACTORS LESS DIFFERENTIAL LOCK)
20	M1206T	2	Plug	(SUB FOR F2567R)
21	F3128R	1	DRAIN PLUG	-
22	A4827R	1	Washer	-
23	34H348	2	Spring Pin	3/8" X 1"
24	R33498	1	PLUG	(TRACTORS WITH 1000 RPM PTO ONLY)
25	R21630	4	PIPE PLUG	-
26	R48685	2	Dowel Pin	-

TRANSMISSION CASE (POWER SHIFT) [01G05]
