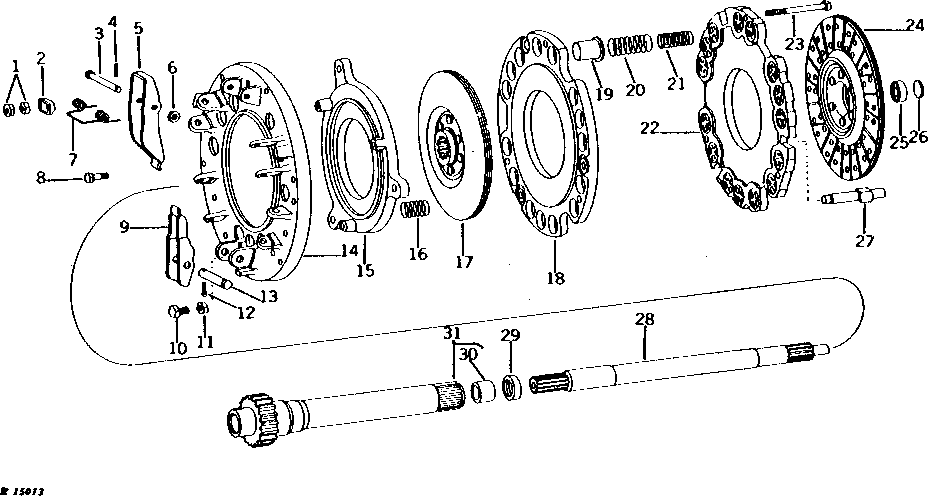

TRANSMISSION AND PTO CLUTCH (COLLAR SHIFT) [01F12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H774	6	Nut	3/8"
2	R32631	3	BAR	-
3	R58111	3	SHEAR PIN	(SUB FOR R31131) (ALSO ORDER (2) 11M7021 AND (2) 24H1301 WASHERS)
4	11H239	3	Cotter Pin	5/32" X 1"
5	AR31906	3	LEVER	-
6	24M7096	3	Washer	0.413" X 0.709" X 0.063"
7	R26639	3	SPRING	-
8	R46567	6	Screw	(SUB FOR R63300, THIS APPLICATION)
9	AR58171	3	LEVER	(SUB FOR R33550, THIS APPLICATION)
10	R26804	3	CAP SCREW	-
11	14H774	3	Nut	3/8"
12	11H239	3	Cotter Pin	5/32" X 1"
13	R43418	3	Pin Fastener	-
14	R46425	1	COVER	(SUB FOR R41179)
15	R41343	1	PLATE	REAR
16	R26659	3	SPRING	-
17	AR26840	1	CLUTCH DISK	-
18	R41342	1	PLATE	FRONT
19	R27033	12	ROUND RETAINER	-
20	R26637	12	SPRING	OUTER
21	R38185	12	Spring	INNER
22	R51392	1	CLUTCH PLATE	(SUB FOR R41341)
23	R49579	3	BOLT	(SUB FOR R32632)
24	AR42126	1	CLUTCH DISK	(SUB AR55661) (HEAVY DUTY)
24	AR55661	1	CLUTCH DISK	(HEAVY DUTY)
25	JD9449	1	Ball Bearing	(SUB FOR JD9281)
26	R26656	1	WASHER	-
27	R40731	3	DOWEL PIN	-
28	R33927	1	SHAFT	-
29	AR26481	1	SEAL	-
30	R30829	1	BUSHING	-
31	AR32469	1	SHAFT	WITH BUSHINGS
