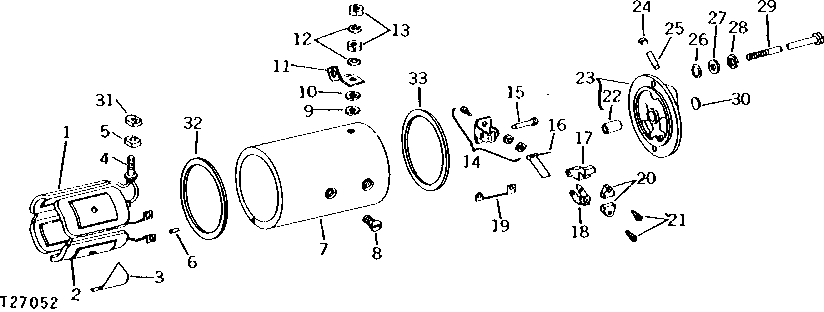

STARTER MAIN FRAME, COIL, AND COMMUTATOR END FRAME (DELCO-REMY NOS. 1113672 AND 1113402) (12-VOLT) (DIESEL) [02C11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR44699	1	ELECTRICAL COIL	-
2	R11003	4	SHOE	-
3	R11253	2	INSULATOR	-
4	R11059	1	STUD	-
5	R11058	2	BUSHING	-
6	R11087	1	DOWEL PIN	-
7	-	1	Part 7	(SUB RE41875, TY6701 OR TY6713) (ALSO ORDER R76139)
7	SE501444	1	STARTER MOTOR	(REMANUFACTURED FOR TY6701)
8	21H1280	4	SCREW	3/8" X 3/4"
9	R11000	2	WASHER	-
10	24M7096	1	Washer	0.413" X 0.709" X 0.063"
11	R11296	1	ELECTRICAL CONNECTOR ASSY	-
12	12H304	2	Lock Washer	3/8"
13	14H1076	2	Nut	3/8"
14	AR11124	2	SUPPORT	-
15	R11233	2	PIN	-
16	R11209	2	SPRING	-
17	R11290	2	CARBON BRUSH HOLDER	-
18	T738T	2	HOLDER	-
19	AR11001	1	WIRING LEAD	-
20	R42574	4	BRUSH	-
21	37H78	4	SCREW	0.164" X 3/4"
22	R61932	1	BUSHING	(SUB FOR T11739)
23	AR11140	1	FRAME	-
24	15H566	1	PIPE PLUG	1/8"
25	R40337	1	WICK	-
26	R27976	2	O-Ring	(A)
27	24H1136	2	Washer	11/32" X 11/16" X 0.065"
28	12H303	2	Lock Washer	5/16"
29	R11298	2	BOLT	-
30	30H9	1	Plug	3/4"
31	R40501	1	GASKET	-
32	R11120	1	O-Ring	-
33	-	1	Part 34	(NO LONGER AVAILABLE)
..	-	1	Part 35	(SUB RE41875, TY6701 OR TY6713) (SUB FOR AR41627, AR55638, AR62267 OR TY6617)
..	TY6713	1	STARTER MOTOR	(REMANUFACTURED NIPPONDENSO) (SUB FOR AR78538, AR77254 OR RE13722)
..	RE41875	1	Starter Motor	(NIPPONDENSO NO. 028000-3292)
..	TY6701	1	STARTER MOTOR	(REMANUFACTURED CHAMPION) (SUB FOR AR78538 OR AR77254)

STARTER MAIN FRAME, COIL, AND COMMUTATOR END FRAME (DELCO-REMY NOS. 1113672 AND 1113402) (12-VOLT) (DIESEL) [02C11]
