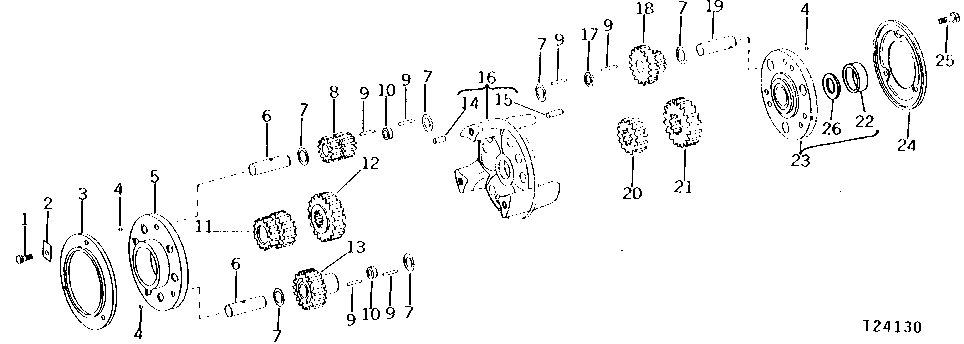

PLANETARY ASSEMBLY (POWER SHIFT) [01G16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R34583	3	CAP SCREW	(A)
2	R1888R	3	STRAP	(A)
3	R33082	1	RETAINER	(A)
4	H871R	9	Ball	(A)
5	R33011	1	COVER	(A)
6	R38193	6	SHAFT	(A)
7	R66197	18	Thrust Washer	(A) (SUB FOR R33087 AND R43216)
8	R38195	3	PINION	(A)
9	R33058	558	NEEDLE ROLLER	(A)
10	R33088	6	Washer	(A)
11	R33112	1	PINION	(A)
12	R38197	1	PLANET PINION	(A)
13	R38196	3	PINION	(A)
14	R33089	3	BUSHING	(A)
15	R26650	3	Dowel Pin	(A)
16	-	1	Part 16	(A) (WHEN AR38403, MARKED R38194 IS NO LONGER AVAILABLE SUB R38194, (3) R26650 AND (3) R33089)
16	R38194	1	PLANET PINION CARRIER	(A) (DOES NOT INCLUDE BUSHINGS AND DOWEL PINS)
17	R33088	3	Washer	(A)
18	AR55423	3	PINION	(A) (MARKED R51303) (SUB FOR AR40518) (MARKED R33084) (SUB FOR AR49532) (MARKED R47045)
19	R38193	3	SHAFT	(A)
20	R33091	1	PLANET PINION	(A)
21	R33588	1	PLANET PINION	(A)
22	R49372	1	Bushing	(A) (SUB FOR R33008)
23	AR52929	1	COVER	(A) (MARKED R49371) (SUB FOR AR40985) (MARKED R41373)
24	R51718	1	RETAINER	(A) (SUB FOR R33081)
25	R46567	3	Screw	(A) (SUB FOR R63300, THIS APPLICATION)
26	R49370	1	WASHER	(A) (USED WITH AR52929)
..	AR53036	1	PLANETARY ASSEMBLY	-
..	AR89854	1	PLANETARY ASSEMBLY	(SUB FOR AR53212 AND AR86117)
