OIL LINES AND FITTINGS-BACKHOE PRESSURE AND RETURN CIRCUITS [02G13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

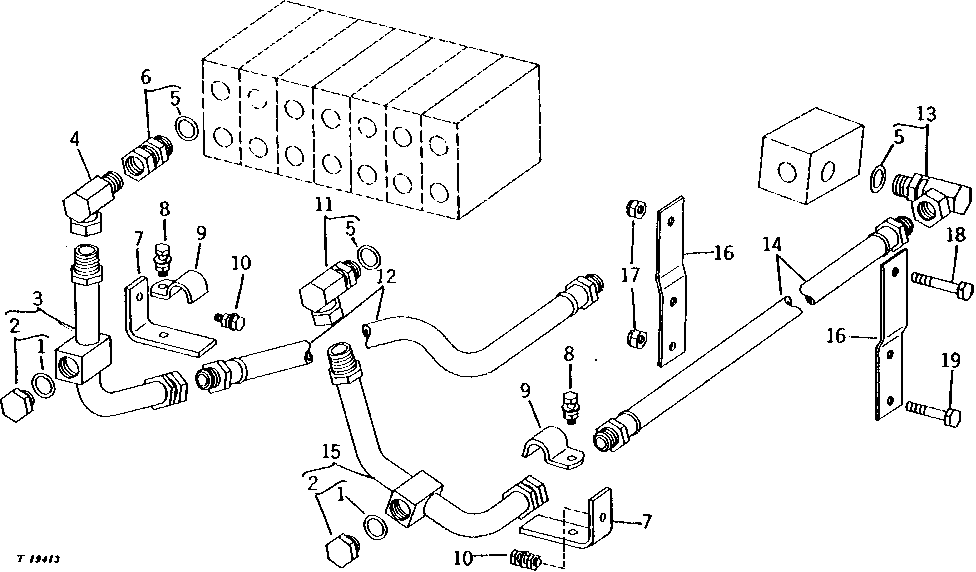

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U12547	2	O-Ring	-
2	U13982	2	FITTING	-
3	AU42570	1	TUBE	-
4	AR29459	1	UNION FITTING	-
5	R29936	2	O-Ring	-
6	AU13375	1	FITTING	STRAIGHT
7	U44032	2	ANGLE	-
8	19H3239	2	Cap Screw	HS, SAE 8, 3/8" X 1-1/4"
8	12H304	2	Lock Washer	3/8"
8	14H812	2	NUT	3/8"
9	U15939	2	Clamp	(SUB FOR U13667)
10	12H304	2	Lock Washer	3/8"
10	14H812	2	NUT	3/8"
10	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1"
11	AU42452	1	ADAPTER FITTING	(SUB FOR AU13362)
12	AT37672	1	HYDRAULIC HOSE - FABRICATE	1" X 50" X 1", (SUB FOR AU42577, THIS APPLICATION)
13	AU42452	1	ADAPTER FITTING	-
14	AT47134	1	HYDRAULIC HOSE - FABRICATE	1" X 89" X 1", (SUB FOR AU42578)
15	AU42569	1	OIL LINE	-
16	U46580	2	CLAMP	(USE WITH AU42578)
17	T11234	3	Lock Nut	(USE WITH AU42578)
18	19H2732	2	Cap Screw	3/8" X 2-3/4", (USE WITH AU42578)
19	19H1726	1	Cap Screw	3/8" X 2-1/4", (USE WITH AU42578)
20	AT30417	2	STRAP	(USE WITH AT47134)

OIL LINES AND FITTINGS-BACKHOE PRESSURE AND RETURN CIRCUITS [02G13]
