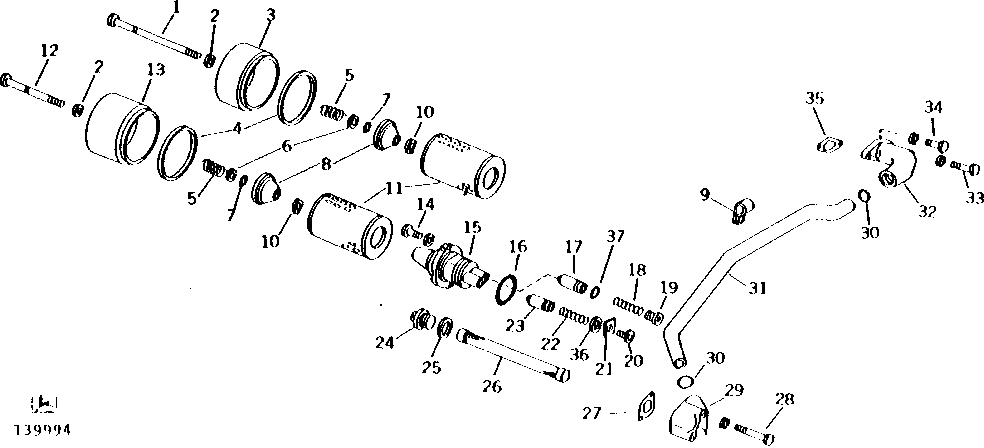

OIL FILTER AND TRANSMISSION OIL PUMP INTAKE (POWER SHIFT) [01H07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R54750	1	SCREW	(SUB FOR R39795)
2	R394R	2	O-Ring	-
3	R39794	1	COVER	-
4	R34733	2	WASHER	-
5	R66064	2	SPRING	(SUB FOR H819R THIS APPLICATION)
6	24H1227	2	Washer	17/32" X 13/16" X 0.060"
7	R394R	1	O-Ring	(USE WITH R28593, RETAINER)
7	F2741R	2	Packing	(USE WITH R65892, RETAINER)
8	R28593	1	RETAINER	(USE WITH R394R, ROUND CROSS-SECTION O-RING) (SUB R65892 AND F2741R)
8	R65892	2	RETAINER	(USE WITH F2741R, SQUARE CROSS-SECTION O-RING)
9	R33364	1	CLAMP	-
10	R32507	2	Snap Ring	-
11	AR75603	2	FILTER ELEMENT	(SUB FOR AR28271, AT34670 AND AR75601)
12	R54751	1	SCREW	(SUB FOR R39797)
13	R39796	1	COVER	-
14	19H2633	2	Cap Screw	HS, SAE 8, 3/8" X 1-1/2"
14	12H304	2	Lock Washer	3/8"
15	R33606	1	HOUSING	-
16	U12198	1	O-Ring	-
17	R57559	1	VALVE	(ALSO ORDER R33259) (SUB FOR R33162)
18	R26686	1	SPRING	-
19	R33138	1	Fitting	-
20	T55452	1	FITTING	(SUB FOR R39807 AND R46979) (ALSO ORDER T55451)
21	T55451	1	STRAP	(SUB FOR R44858) (ALSO ORDER T55452)
22	R39808	1	SPRING	-
23	R39847	1	VALVE	-
24	R40147	1	FITTING	(SUB FOR A4806R)
25	A4808R	1	WASHER	-
26	AR26375	1	SCREEN	(SUB FOR R53169, THIS APPLICATION)
27	R28110	1	GASKET	-
28	19H2732	2	Cap Screw	HS, SAE 8, 3/8" X 2-3/4"
28	12H304	2	Lock Washer	3/8"
29	R84270	1	ADAPTER FITTING	-
29	-	1	Part 33	(SUB R28110 AND R84270 FOR R33911)
30	A3606R	2	O-RING	-
31	R33914	1	OIL LINE	-
32	AR41885	1	ADAPTER FITTING	-
33	19H1765	1	Cap Screw	HS, SAE 8, 3/8" X 1-3/4"
33	12H304	1	Lock Washer	3/8"
34	19H3239	1	Cap Screw	HS, SAE 8, 3/8" X 1-1/4"
34	12H304	1	Lock Washer	3/8"
35	R33363	1	GASKET	-
36	R33521	2	Shim	0.76 MM (.030")
37	R33259	1	O-Ring	-

OIL FILTER AND TRANSMISSION OIL PUMP INTAKE (POWER SHIFT) [01H07]
