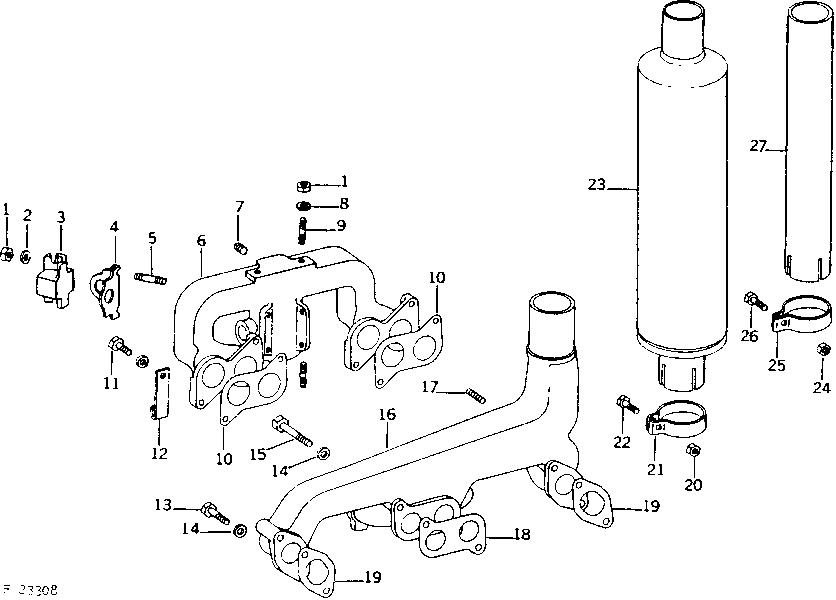

MANIFOLDS AND MUFFLER (GASOLINE) [01C23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A4646R	6	NUT	9.525 MM (3/8")
2	M72490	4	Washer	10.300 X 21 X 2.500 MM (0.406" X 0.827" X 0.098") (SUB FOR R42729)
3	R27610	2	VALVE	-
4	R31053	2	GASKET	(SUB FOR R27611)
5	R63431	4	STUD	(SUB FOR R27612)
6	AR56076	1	INTAKE MANIFOLD	(MARKED R27407 OR R33189) (SUB FOR AR30038 OR AR32156) (SUB R33189, R56481, R63431 AND 15H638)
6	R33189	1	INTAKE MANIFOLD	-
7	R104592	1	Pipe Plug	-
8	A4624R	2	Washer	10.312 X 26.924 X 3.048 MM (13/32" X 1.060" X 0.120")
9	R56481	4	STUD	(SUB FOR R26117 OR M3636T)
10	R26291	2	GASKET	-
11	19H1765	4	Cap Screw	3/8" X 1-3/4"
11	12H304	4	Lock Washer	3/8"
12	R28789	1	CLIP	-
13	19H1765	3	Cap Screw	3/8" X 1-3/4"
13	12H304	3	Lock Washer	3/8"
14	R63845	6	Washer	0.413" X 0.689" X 0.118"
15	19H1944	3	Cap Screw	3/8" X 2-3/4"
15	12H304	3	Lock Washer	3/8"
16	R27404	1	EXHAUST MANIFOLD	(JD500, JD500A*, JD500A&, JD500B)
17	-	1	Part 21	-
18	R83020	1	GASKET	(SUB FOR R26360 OR R44373)
19	R83021	2	Gasket	(SUB FOR R26361 OR R44374)
20	14H1076	1	Nut	3/8" (JD500-A&, JD500-B)
21	AR26905	1	CLAMP	(JD500-A&, JD500-B)
22	19H2633	1	Cap Screw	3/8" X 1-1/2" (JD500-A&, JD500-B)
23	AR26786	1	MUFFLER	(VERTICAL) (JD500A*)
23	AR41172	1	MUFFLER	(NOT ILLUSTRATED) (SUB FOR AR26786 ON JD500)(JD500A&, JD500B)
24	14H1076	1	Nut	3/8"
25	R66684	1	CLAMP	(SUB FOR AR26906 AND AR45917) (JD500, JD500A&, JD500B)
26	19H1732	1	Cap Screw	3/8" X 1-1/4"
27	AR45916	1	MUFFLER EXTENSION	(SUB FOR AR27090 ON JD500) (JD500A&, JD500B)

MANIFOLDS AND MUFFLER (GASOLINE) [01C23]
