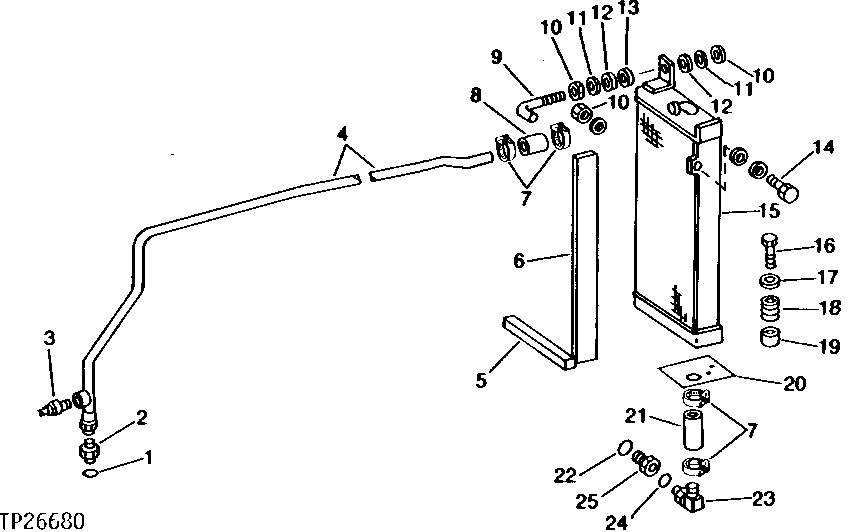

HYDRAULIC OIL COOLER AND OIL PIPE (POWER SHIFT) [01D10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U12547	1	O-Ring	(SUB FOR F3171R)
2	R27267	1	Fitting	-
3	AR52607	1	PRESSURE SWITCH	(SUB FOR AR46727)
4	AR42152	1	OIL LINE	-
5	-	2	Part 5	(MAKE FROM R30907, URETHANE FOAM STRIP)
6	R34688	2	WEATHERSTRIP	-
7	AR21839	4	Clamp	-
8	-	1	Part 8	19 MM X 114 MM (3/4" X 4-1/2") (MAKE FROM T61739 IF AVAILABLE) (SUB FOR T35692 AND T21371)
9	-	1	Part 9	( R42116 USE IF AVAILABLE)
10	14H812	3	NUT	3/8"
11	R27441	2	Washer	-
12	A4666R	2	WASHER	-
13	F2257R	1	SPACER	-
14	24H1302	2	Washer	13/32" X 11/16" X 0.035"
14	T22381	1	Washer	-
14	19H2676	1	Cap Screw	HS, SAE 8, 3/8" X 1"
15	AT35811	1	OIL COOLER	(SUB FOR AR44000)
16	19H2549	1	Cap Screw	HS, SAE 8, 3/8" X 1-7/8"
17	24H1309	1	Washer	13/32" X 1-1/16" X 0.120"
18	F2411R	1	Spring	-
19	R26417	1	Spacer	-
20	-	1	Part 22	1/8" X 4" X 5-1/2", (MAKE FROM R30597)
21	-	1	Part 23	19 MM X 86 MM (3/4" X 3-3/8") (MAKE FROM T61939, 3 M (10 FT.) BULK) (SUB FOR T35694 AND T21371)
22	U13639	1	O-Ring	-
23	AR32708	1	ELBOW FITTING	(SUB AT21574, T27517, U12547)
23	AT21574	1	Fitting	-
24	U12547	1	O-Ring	-
25	T27517	1	Adapter Fitting	-

HYDRAULIC OIL COOLER AND OIL PIPE (POWER SHIFT) [01D10]
