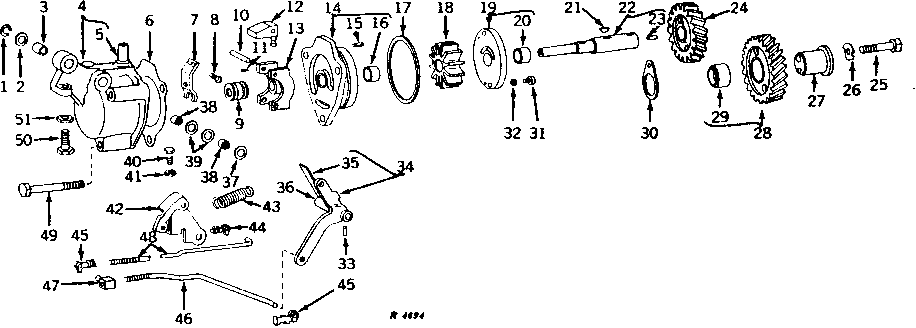

GOVERNOR AND VENTILATOR PUMP (GASOLINE AND LP-GAS) [01D02]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26517	1	SNAP RING	-
2	24H1352	1	Washer	9/16" X 2" X 0.060"
3	R27922	1	BUSHING	-
4	-	1	Part 4	(MARKED R26512) ( AR26418 NO LONGER AVAILABLE)
4	AR45297	1	HOUSING	(MARKED R31338, R44078 OR R44079) (SUB FOR AR30445) (NO LONGER AVAILABLE) (ORDER INDIVIDUAL PARTS)
4	AR45299	1	HOUSING	(MARKED R44079) (SUB FOR AR45297) (ALSO ORDER R26423 AND R26127)
5	R26127	1	BUSHING	-
6	R31340	1	GASKET	(SUB FOR R26141)
7	R26129	1	LEVER	-
8	19H1227	2	Cap Screw	1/4" X 1/2", (SUB FOR AR28756)
8	12H356	2	Lock Washer	1/4", (SUB FOR AR28756)
9	AL2769T	1	BALL BEARING	(SUB FOR AL2691T)
9	L4299T	2	WASHER	(SUB FOR AL2691T)
10	R27205	2	PIN FASTENER	-
11	11M7086	2	Cotter Pin	2.500 X 50 MM
12	AR26421	2	WEIGHT	-
13	R26131	1	CRADLE	-
14	AR45306	1	HOUSING	(MARKED R44083) (JD500-A&, JD500-B)
14	AR30444	1	HOUSING	(MARKED R31337) (JD500, JD500A*)
15	34H245	2	Spring Pin	1/8" X 5/8", (USE WITH AR30444)
16	R30713	1	BUSHING	-
17	R40776	1	WASHER	(SUB FOR R26142)
18	R26135	1	IMPELLER	(USE WITH AR30444)
19	AR26341	1	COVER	(MARKED R26136) (USE WITH AR30444)
20	R30713	1	BUSHING	-
21	26H70	3	Shaft Key	1/8" X 1/2"
22	AR26420	1	SHAFT	-
23	B2641R	1	DOWEL PIN	-
24	R26138	1	GEAR	-
25	19H3181	1	CAP SCREW	3/8" X 2"
26	R26403	1	LOCK PLATE	-
27	R26401	1	SHAFT	-
28	AR26389	1	GEAR	(MARKED R26399)
29	R30712	1	BUSHING	-
30	R26402	1	WASHER	-
31	19H2925	2	Screw	0.190" X 1/2" NO. 10 X 1/2", (USE WITH AR30444)
32	12H246	2	LOCK WASHER	0.190", (USE WITH AR30444)
33	34H247	1	Spring Pin	1/8" X 3/4"
34	AR27245	1	ARM	(SUB AR44847)
34	AR30828	1	ARM	(SUB AR44847)
34	AR44847	1	ARM	-
35	R42624	1	STRAP	(SUB FOR R27923)
35	16H97	2	RIVET	1/8" X 3/8"
35	R42624	1	STRAP	-
36	R26128	1	LEVER	(SUB AR44847)
37	AR26338	1	SEAL	-
38	JD8862	2	NEEDLE BEARING	-
39	24H1227	2	Washer	17/32" X 13/16" X 0.060"
40	19H1914	1	Cap Screw	1/4" X 1"
41	14H850	1	NUT	1/4"
42	AR59651	1	ARM	(SUB FOR AR26342)
43	R26518	1	SPRING	-
44	R26524	1	Clip	-
45	R26501	2	Clip	GAS (R.H.)
45	R26501	1	Clip	LP (L.H.)
45	R26524	1	Clip	GAS - LP (R.H.)
46	R26523	1	ROD	(GAS) (JD500, JD500-A*)
46	R26523	1	ROD	(LP) (JD500, JD500-A*)
46	-	1	Part 59	(LP) (JD500, JD500-A*) ( R42163 - NO LONGER AVAILABLE)
46	-	1	Part 60	(GAS) NOT ILLUSTRATED (JD500-A&, JD500-B) ( R44899 - NO LONGER AVAILABLE)
47	R26500	1	SWIVEL	-
48	R34710	1	ROD	(SUB FOR R27102)
48	R41569	1	ROD	(NO LONGER AVAILABLE) NOT ILLUSTRATED, (JD500-A, JD500-B)
49	R41920	3	Cap Screw	(SUB FOR R27207)
49	R31542	3	BOLT	-
50	19H2831	1	Cap Screw	5/16" X 1-1/2"
51	14H611	1	Nut	5/16"

GOVERNOR AND VENTILATOR PUMP (GASOLINE AND LP-GAS) [01D02]
