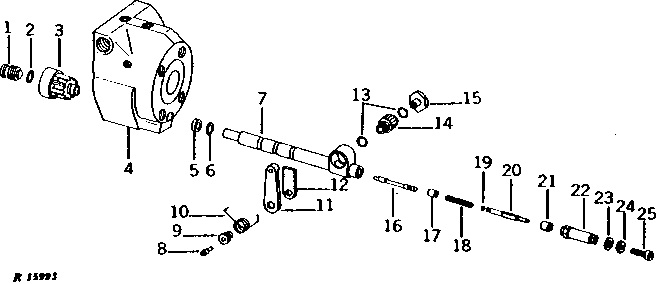

FUEL INJECTION PUMP GOVERNOR AND THROTTLE CONTROL (ENGINE SERIAL NO. 132166-280000) [01E21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(NO LONGER AVAILABLE)
2	-	1	Part 2	(NO LONGER AVAILABLE)
3	-	1	Part 3	(NO LONGER AVAILABLE) (SUB FOR AR49114)
4	AR49430	1	KIT	(SUB AR69412 AND AR69408)
5	-	1	Part 5	-
6	T11899	1	O-Ring	-
7	-	1	Part 7	(NO LONGER AVAILABLE)
8	R70513	1	Screw	(SUB FOR T19859)
9	T17950	1	Retainer	-
10	T17949	1	Torsion Spring	-
11	AR46843	1	LEVER	-
12	T29164	1	LEVER	-
13	T26256	2	O-RING	-
14	-	1	Part 14	(NO LONGER AVAILABLE)
15	-	1	Part 15	(NO LONGER AVAILABLE)
16	-	1	Part 16	(NO LONGER AVAILABLE)
17	-	1	Part 17	(NO LONGER AVAILABLE)
18	-	1	Part 18	(NO LONGER AVAILABLE) (COLORED GREEN AND BLUE)
19	-	1	Part 19	(NO LONGER AVAILABLE)
20	-	1	Part 20	(NO LONGER AVAILABLE)
21	-	1	Part 21	(NO LONGER AVAILABLE)
22	-	1	Part 22	(NO LONGER AVAILABLE)
23	AT24209	1	SEAL	-
24	-	1	Part 24	(NO LONGER AVAILABLE)
25	T17948	1	SCREW	-

FUEL INJECTION PUMP GOVERNOR AND THROTTLE CONTROL (ENGINE SERIAL NO. 132166-280000) [01E21]
