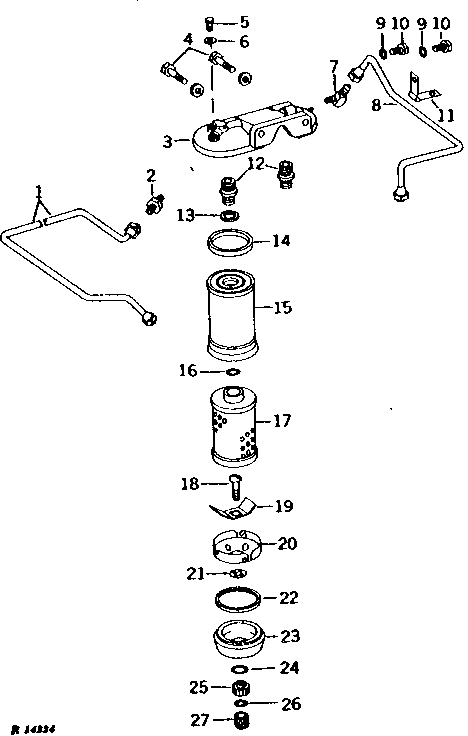

FUEL FILTER (DIESEL) (ENGINE SERIAL NO. 125000-280000) [01E03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR31178	1	FUEL LINE	(USE WHEN AR69412 HAS BEEN INSTALLED)
1	-	1	Part 1	( AR41556 - NO LONGER AVAILABLE)
2	R27346	1	Fitting	-
3	AR46257	1	HOUSING	(MARKED R44777) (SUB AR55220)
3	AR46257	1	HOUSING	(MARKED R44777) (SUB AR55221)
4	19H2731	2	Cap Screw	7/16" X 1-3/8"
4	12H293	2	Lock Washer	7/16"
5	19H2485	1	CAP SCREW	5/16" X 7/16"
6	R20498	1	WASHER	-
7	T30738	1	ELBOW FITTING	(SUB FOR AR26674, THIS APPLICATION)
8	AR41726	1	FUEL LINE	-
9	A3439R	2	Washer	-
10	19H2346	2	CAP SCREW	7/16" X 1/2"
11	R27284	2	CLIP	-
12	-	2	Part 15	( R32110 - NO LONGER AVAILABLE)
13	R44101	2	Washer	-
14	R44331	2	BUSHING	-
15	AR45678	2	CASE	-
16	R459R	2	O-Ring	-
17	AR44077	2	FILTER ELEMENT	-
18	R41716	2	SCREW	-
19	R41719	2	LEAF SPRING	-
20	R41717	2	RETAINER	(NO LONGER AVAILABLE)
21	R41718	2	SNAP RING	-
22	R41721	2	O-RING	-
23	R41720	2	BOWL	-
24	R26919	2	WASHER	(ALSO ORDER R46568) (UNLESS PREVIOUSLY INSTALLED)
25	R46568	2	NUT	(SUB FOR R41722) (USE WITH R26919)
26	R26286	2	O-Ring	-
27	R41723	2	NUT	-

FUEL FILTER (DIESEL) (ENGINE SERIAL NO. 125000-280000) [01E03]
