Открытый узел

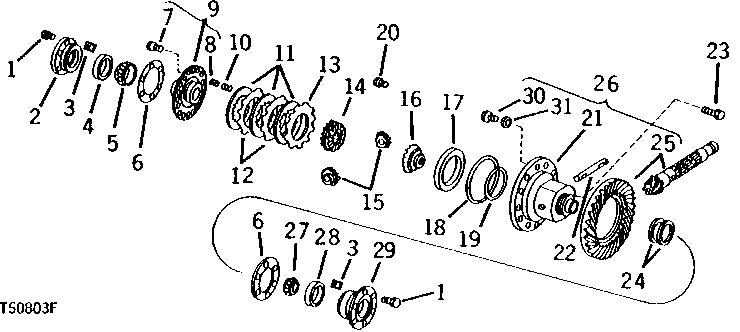

DIFFERENTIAL (TRACTORS WITH DIFFERENTIAL LOCK) [01H14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46162	12	SCREW	-
2	R33493	1	BEARING HOUSING W/O BEARING	-
3	14H823	2	NUT	1/2"
4	JD8259	1	Bearing Cup	-
5	JD8954	1	Bearing Cone	-
6	R46323	1	Shim	(SUB FOR R26042) 0.08 MM (.003") STEEL
6	R46324	1	Shim	(SUB FOR R26043) 0.13 MM (.005") STEEL
7	R112877	10	Cap Screw	-
7	R38614	10	CAP SCREW	-
8	34H297	2	Spring Pin	7/32" X 1"
9	AR47835	1	COVER	(SUB AT33285 AND (10) R38614)
9	AT33285	1	COVER	(MARKED T34236)
10	R34863	2	SPRING	-
11	AR33974	3	CLUTCH DISK	-
12	R78155	2	Clutch Plate	(SUB FOR R34520)
13	R78156	1	Clutch Plate	(SUB FOR R34517)
14	R42620	1	GEAR	-
15	R42443	2	PINION	-
16	R42445	1	GEAR	-
17	R34526	1	PISTON	-
18	R41018	1	Packing	-
19	R44327	1	WASHER	(SUB FOR R41019)
20	R41048	1	CAP SCREW	(SUB R47172 AND 19H3030)
21	AR34823	1	HOUSING	(MARKED R34806) (SUB AR56960, THIS APPLICATION) (COLLAR SHIFT)
21	AR34823	1	HOUSING	(MARKED R34806) (SUB AR56962, THIS APPLICATION) (POWER SHIFT)
22	R41902	1	PINION SHAFT	-
23	R70236	1	CAP SCREW	(SUB FOR R41050)
24	R34513	2	Ring	-
25	AR34735	1	BEVEL GEAR DRIVE	(MARKED R34875) AND DIFFERENTIAL DRIVE GEAR SHAFT WITH SHIMS (MATCHED SET) (COLLAR SHIFT)
25	AR34736	1	BEVEL GEAR DRIVE	(MARKED R34875) AND DIFFERENTIAL DRIVE GEAR SHAFT WITH SHIMS (MARKED R34874) (MATCHED SET) (POWER SHIFT) (SUB AR56962, THIS APPLICATION)
26	AR56960	1	GEAR	(MARKED R34875) WITH DIFFERENTIAL DRIVE GEAR SHAFT (MARKED R34873) (9 TEETH) WITH SHIMS, CAP SCREWS, WASHERS AND DIFFERENTIAL HOUSING (MATCHED SET) (COLLAR SHIFT)
26	AR56962	1	GEAR	(MARKED R34875) (56 TEETH) WITH DIFFERENTIAL DRIVE GEAR SHAFT (MARKED R34874) (9 TEETH) WITH SHIMS, CAP SCREWS, WASHERS AND DIFFERENTIAL HOUSING (MATCHED SET) (POWER SHIFT)
27	JD8159	1	Bearing Cone	-
28	JD8210	1	Bearing Cup	-
29	R34529	1	BEARING HOUSING W/O BEARING	-
30	19H3030	10	Cap Screw	1/2" X 1-1/4", (SUB FOR R48786)
31	R47172	10	Washer	-

DIFFERENTIAL (TRACTORS WITH DIFFERENTIAL LOCK) [01H14]
