Открытый узел

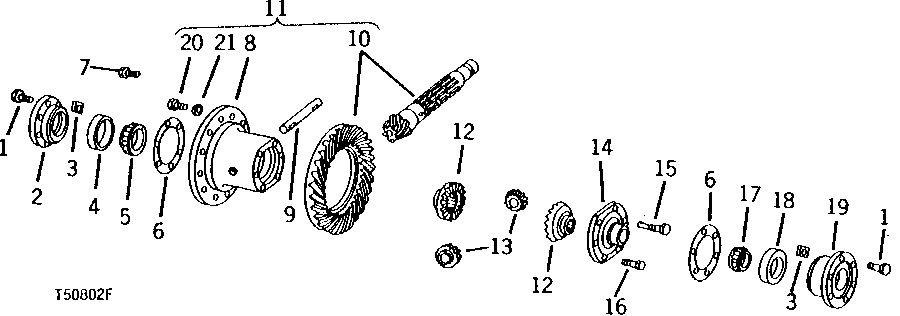

DIFFERENTIAL (TRACTORS LESS DIFFERENTIAL LOCK) [01H13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46162	12	SCREW	-
2	R33493	1	BEARING HOUSING W/O BEARING	-
3	14H823	2	NUT	1/2"
4	JD8259	1	Bearing Cup	-
5	JD8954	1	Bearing Cone	-
6	R46323	1	Shim	(SUB FOR R26042) 0.08 MM (.003") STEEL
6	R46324	1	Shim	(SUB FOR R26043) 0.13 MM (.005") STEEL
7	R41048	1	CAP SCREW	(SUB R47172 AND 19H3030)
8	R33078	1	HOUSING	(SUB AR56959, THIS APPLICATION) (COLLAR SHIFT)
8	R33078	1	HOUSING	(SUB AR56961, THIS APPLICATION) (POWER SHIFT)
9	R41902	1	PINION SHAFT	-
10	AR34735	1	BEVEL GEAR DRIVE	(MARKED R34875) AND DIFFERENTIAL DRIVE GEAR SHAFT WITH SHIMS (MARKED R34873) (MATCHED SET) (COLLAR SHIFT) (SUB AR56959, THIS APPLICATION)
10	AR34736	1	BEVEL GEAR DRIVE	(MARKED R34875) AND DIFFERENTIAL DRIVE GEAR SHAFT WITH SHIMS (MARKED R34874) (MATCHED SET) (POWER SHIFT) (SUB AR56961, THIS APPLICATION)
11	-	1	Part 14	(MARKED R34875) (56 TEETH) WITH DIFFERENTIAL DRIVE GEARSHAFT (MARKED R34873) (9 TEETH) (COLLAR SHIFT) (WHEN AR56959 IS NO LONGER AVAILABLE SUB AR56963, (2) R26227, (4) R26228, (2) R33413 AND (4) R33414)
11	AR56961	1	GEAR	(MARKED R34875) (56 TEETH) WITH DIFFERENTIAL DRIVE GEARSHAFT (MARKED R34874) (9 TEETH) WITH SHIMS, CAP SCREWS, WASHERS AND DIFFERENTIAL HOUSING (MATCHED SET) (POWER SHIFT)
11	-	1	Part 15	( AR56963 NO LONGER AVAILABLE) (MARKED R34875) (56 TEETH) WITH DIFFERENTIAL DRIVE GEARSHAFT (MARKED R34873) (9 TEETH) COLLAR SHIFT, (SUB AR34722, R33078, (10) R47172 AND (10) 19H3029)
12	R42445	2	GEAR	-
13	R42443	2	PINION	-
14	R33491	1	COVER	-
15	R70236	1	CAP SCREW	(SUB FOR R41050)
16	R52634	5	Cap Screw	(SUB FOR R41049)
17	JD8159	1	Bearing Cone	-
18	JD8210	1	Bearing Cup	-
19	R33492	1	BEARING HOUSING W/O BEARING	-
20	19H3030	10	Cap Screw	1/2" X 1-1/4", (SUB FOR R48786)
21	R47172	10	Washer	-

DIFFERENTIAL (TRACTORS LESS DIFFERENTIAL LOCK) [01H13]

Нет текстового описания
