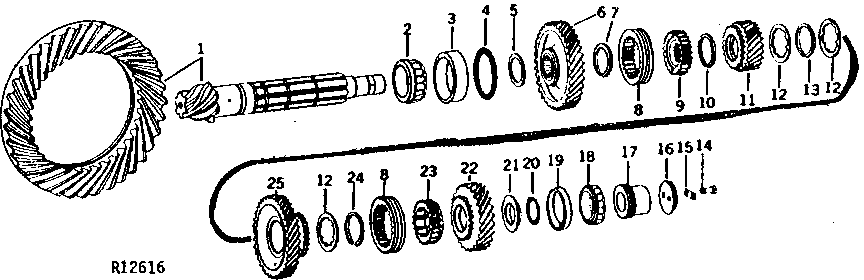

DIFFERENTIAL DRIVE AND BEVEL PINION ASSEMBLY (COLLAR SHIFT) [01G08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR34735	1	BEVEL GEAR DRIVE	(MARKED R34875) (MARKED R34873) (SUB AR56959, THIS APPLICATION) SPIRAL BEVEL, DIFFERENTIAL DRIVE GEAR SHAFT AND BEVEL PINION AND SHIMS (MATCHED SET) (WITHOUT DIFFERENTIAL LOCK)
1	AR34735	1	BEVEL GEAR DRIVE	(MARKED R34875) (MARKED R34873) (SUB AR56960, THIS APPLICATION) SPIRAL BEVEL, DIFFERENTIAL DRIVE GEAR SHAFT AND BEVEL PINION AND SHIMS (MATCHED SET) (WITH DIFFERENTIAL LOCK)
2	JD8970	1	Bearing Cone	-
3	JD8264	1	Bearing Cup	-
4	-	1	Part 5	(A) ( R26227 NO LONGER AVAILABLE) 0.68 MM (.003") STEEL
4	-	1	Part 6	(A) ( R26228 NO LONGER AVAILABLE) 0.13 MM (.005") STEEL
4	R26229	1	Shim	0.25 MM (.010") STEEL
5	R33516	1	WASHER	-
6	AR87813	1	Gear	(SUB FOR AR32237) (MARKED R67423) FIRST AND THIRD SPEED, WITH BUSHING
7	R26264	1	Snap Ring	-
8	T31800	2	SHIFT COLLAR	(SUB FOR T23519)
9	R33510	1	GEAR	-
10	R33474	1	SNAP RING	-
11	R33511	1	GEAR	-
12	R26253	3	THRUST WASHER	-
13	R26265	1	Snap Ring	-
14	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1"
15	R26072	1	STRAP	-
16	R50365	1	PLATE	(SUB FOR R33347)
17	R33795	1	BEARING RACE	-
18	JD8980	1	BEARING CONE	-
19	JD7430	1	Bearing Cup	-
20	-	1	Part 23	(B) ( R33413 NO LONGER AVAILABLE) 0.68 MM (.003") STEEL
20	-	1	Part 24	(B) ( R33414 NO LONGER AVAILABLE) 0.13 MM (.005") STEEL
20	-	1	Part 25	(B) ( R33415 NO LONGER AVAILABLE) 0.25 MM (.010") STEEL
21	R69214	1	THRUST WASHER	(SUB FOR R33386)
22	R26990	1	GEAR	-
23	R26255	1	GEAR	-
24	R26266	1	SNAP RING	-
25	R33503	1	GEAR	-

DIFFERENTIAL DRIVE AND BEVEL PINION ASSEMBLY (COLLAR SHIFT) [01G08]
