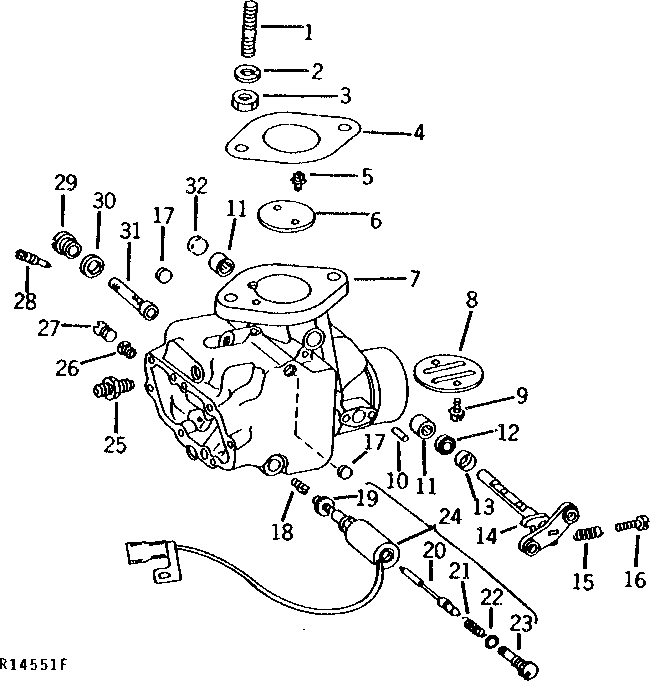

CARBURETOR BODY, SOLENOID AND CHOKE (GASOLINE) [01F05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R56481	2	STUD	(SUB FOR M3636T)
2	12H304	2	Lock Washer	3/8"
3	14H1076	2	Nut	3/8"
4	R26499	1	GASKET	-
5	AA6086R	2	SCREW	-
6	R10083	1	DISK	-
7	-	1	Part 7	(SUB AR45161) (ALSO ORDER R26499)
8	R10181	1	FAN	-
9	AR723R	2	SCREW	-
10	34H387	1	Spring Pin	3/16" X 3/4"
11	JD8867	2	NEEDLE BEARING	-
12	R10194	1	PACKING	-
13	R10182	1	ROUND RETAINER	-
14	AR10101	1	SHAFT	-
15	R10104	1	SPRING	-
16	21H1315	1	Screw	0.164" X 3/4"
17	-	2	Part 17	( 30H34 - NO LONGER AVAILABLE)
18	-	1	Part 18	( R45662 - NO LONGER AVAILABLE)
19	H22548	1	GASKET	(NO LONGER AVAILABLE)
20	-	1	Part 20	( T31164 - NO LONGER AVAILABLE)
21	T25152	1	SPRING	-
22	R34812	1	O-Ring	(SUB FOR T25154)
23	T35554	1	STUD	(SUB FOR T25151)
24	AT30178	1	SOLENOID	-
25	R27346	1	Fitting	-
26	-	1	Part 26	( T31157 - NO LONGER AVAILABLE)
27	R10202	1	SET SCREW	-
28	AR39833	1	NEEDLE	(SUB FOR R10203)
29	R10206	1	FITTING PLUG	-
30	R10222	1	GASKET	-
31	AR10104	1	FUEL FILTER	-
32	R10300	1	PLUG	-
..	AR45161	1	CARBURETOR	(MARVEL-SCHEBLER MODEL USX-49SL) (SUB FOR AR45159 OR AR52449) (ALSO ORDER R26499)
..	AR10109	1	GASKET KIT	(SUB FOR AT30175 AND AR56084)
..	AR47742	1	KIT	(MARVEL-SCHEBLER MODEL USX-49SL)
..	-	1	Part 36	(MAKE FROM PM797NA)
