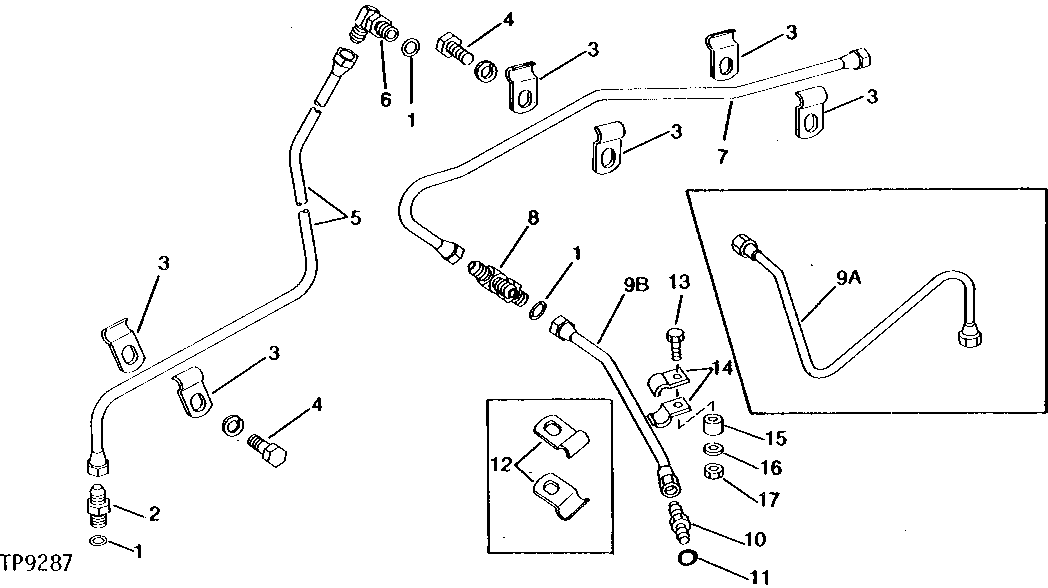

BRAKE PRESSURE, STEERING PRESSURE AND STEERING RETURN PIPES [01I03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26286	3	O-Ring	-
2	R27272	1	Fitting	-
3	R42357	6	CLAMP	-
4	19H1648	2	Cap Screw	HS, SAE 8, 3/8" X 3/4"
4	12H304	2	Lock Washer	3/8"
5	AR47222	1	OIL LINE	(POWER SHIFT)
5	AR41126	1	OIL LINE	(COLLAR SHIFT)
6	RE56322	1	Tee Fitting	(SUB FOR AR26771 OR AT32333)
6	AR49789	1	TEE FITTING	-
7	AR41130	1	OIL LINE	-
8	AR30762	1	Tee Fitting	(COLLAR SHIFT) (WITH PTO)
8	R49018	1	FITTING	(SUB FOR AR35725) (COLLAR SHIFT) (WITHOUT PTO)
8	AM31410	1	Tee Fitting	(SUB FOR AR41987) (COLLAR SHIFT) (WITHOUT PTO)
8	AR40689	1	TEE FITTING	(COLLAR SHIFT) (WITH PTO)
8	R49018	1	FITTING	(SUB FOR AR35725) (POWER SHIFT)
8	AM31410	1	Tee Fitting	(SUB FOR AR41987) (POWER SHIFT) (WITHOUT PTO)
10	R36742	1	COUPLING	-
11	R26287	1	O-Ring	-
12	R42357	2	CLAMP	-
13	19H2633	1	Cap Screw	3/8" X 1-1/2"
14	R57549	2	Clamp	(SUB FOR R47687)
15	28H1517	1	Washer	0.493" X 0.675" X 1/4"
16	12H304	1	Lock Washer	3/8"
17	14H812	1	NUT	3/8"
9A	AR46726	1	OIL LINE	-
9B	AR50514	1	OIL LINE	-
9B	28H1517	1	Washer	0.493" X 0.675" X 1/4"

BRAKE PRESSURE, STEERING PRESSURE AND STEERING RETURN PIPES [01I03]

Нет текстового описания
