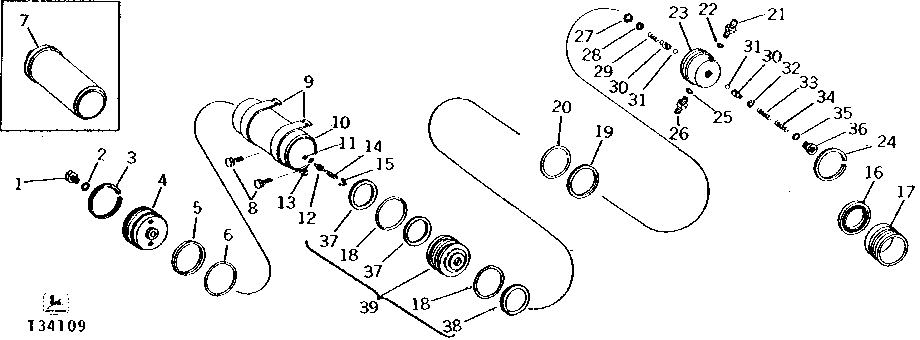

BRAKE ACCUMULATOR (MODEL NOS. 4HA2 AND 10HA1) [01J12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27094	1	Drain Plug	(A)
2	R26286	1	O-Ring	(A)
3	U10136	1	SNAP RING	-
4	R48957	1	END	(SUB FOR R46988)
5	R78823	1	BACK-UP RING	(SUB FOR R35684, THIS APPLICATION)
6	U12331	1	O-Ring	-
7	-	1	Part 7	(A) ( AR41947 NO LONGER AVAILABLE) (SUB R46987, U10136, U12331, R78823, R48957, R47085, R47086, R47087, R41877 AND R26760)
8	19H2021	2	Cap Screw	3/8" X 5/8", HS, SAE 8
9	R41891	2	STRAP	-
10	R46987	1	HYDRAULIC CYLINDER BARREL	-
11	R26760	1	WASHER	(A)
12	R47085	1	VALVE	(A)
13	R47087	1	WASHER	-
14	R26373	1	Spring	(A)
14	R47086	1	SPRING	(A)
15	R41877	1	GUIDE	(A)
16	R35680	1	SEAL	(A) (USED WITH R44253 AND R48952)
17	R48952	1	PISTON	(A) (SUB AL23523) (SUB FOR R44253)
18	A4728R	2	O-Ring	(A) (USED WITH R49345, AR55711, AND AL23523)
19	U12331	1	O-Ring	(A)
20	R78823	1	BACK-UP RING	(A) (SUB FOR R35684, THIS APPLICATION)
21	R27527	1	ADAPTER FITTING	(SUB FOR R36742)
22	R26287	1	O-Ring	-
23	R41878	1	CAP	(A) (SUB AR65886)
23	AR65886	1	CAP	(A) (E) (SUB FOR AR50387) (SUB AR67781)
24	U10136	1	SNAP RING	(A)
25	R26286	1	O-Ring	-
26	R27272	1	Fitting	-
27	R33282	1	Snap Ring	(A) (E)
28	R48013	1	Washer	(A) (E)
29	R44256	1	SPRING	(A) (E)
30	R44254	2	GUIDE	(A) (E)
31	400R	2	Ball	(A) (E)
32	R31632	2	SHIM	(A) (E)
33	R47606	1	Spring	(A) (E)
34	R47605	1	SPRING	(A) (E)
35	R26286	1	O-Ring	(A) (E)
36	R47607	1	Pipe Plug	(A) (E)
37	L29015	2	BACK-UP RING	(A) (E) (USED WHEN AL23523 HAS BEEN INSTALLED AS A REPLACEMENT PART)
38	R27649	1	BACK-UP RING	(A) (E) (USED WHEN AL23523 HAS BEEN INSTALLED AS A REPLACEMENT PART)
39	AL23523	1	BEARING	(SUB FOR AR55711 AND R49345)
..	AR51092	1	ACCUMULATOR	(SUB FOR AR45157, THIS APPLICATION) (SUB AR67778)

BRAKE ACCUMULATOR (MODEL NOS. 4HA2 AND 10HA1) [01J12]

Нет текстового описания
