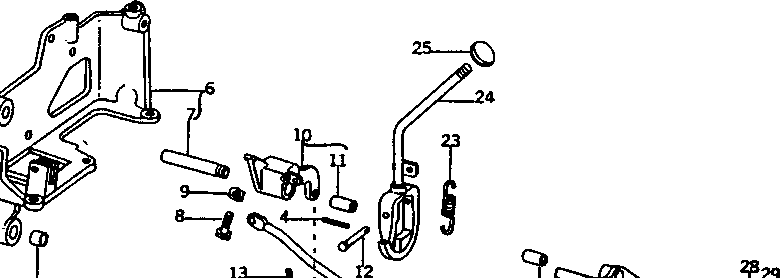

TRANSMISSION SHIFTER CONTROL (POWER SHIFT) [01G10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R34346	1	SCREW	-
2	F3396R	1	Snap Ring	-
3	T16193	2	Pin	-
4	11M7079	5	Cotter Pin	2.500 X 12 MM
5	F2030R	1	BUSHING	-
6	-	1	Part 6	(SUB FOR R33597) WITH SHAFT ( AR41207 NO LONGER AVAILABLE)
7	R41510	1	PIN FASTENER	-
8	19H2705	1	Cap Screw	5/16" X 1"
9	14H611	1	Nut	5/16"
10	AR32812	1	PIVOT	(SUB FOR R33269) (WITH BUSHING)
11	R653R	1	BUSHING	-
12	R29340	1	Pin Fastener	-
13	11M7081	4	Cotter Pin	2.500 X 20 MM
14	C1067R	2	PIN FASTENER	(USE IF AVAILABLE)
14	R65563	2	Pin Fastener	(SUB FOR C1067R)
15	M80373	2	Yoke	(SUB FOR L324T)
16	14H774	2	Nut	3/8"
17	R33315	1	ROD	-
18	R33316	1	ROD	-
19	R36318	2	WASHER	-
20	AR32815	1	LEVER	(SUB FOR R33270) (WITH BUSHINGS)
21	24H1302	1	Washer	13/32" X 11/16" X 0.035"
22	-	1	Part 23	( R33310 NO LONGER AVAILABLE)
23	R33278	1	Spring	-
24	-	1	Part 25	( AR42290 NO LONGER AVAILABLE)
25	F2861R	1	KNOB	-
26	AR41182	1	ARM	(WITH LATCH AND BUSHING)
27	R653R	1	BUSHING	-
28	24H1366	1	Washer	21/32" X 1-1/8" X 0.036"
29	24H1658	1	Washer	21/32" X 1" X 0.060"
30	A4883R	1	Snap Ring	-
31	R662R	1	PIN FASTENER	-
32	M3742T	1	Yoke	-
33	14H649	1	Nut	1/4"
34	14H785	1	Nut	5/16"
35	12H303	1	Lock Washer	5/16"
36	T19036	4	CLAMP	-
37	03H1790	1	Bolt	5/16" X 1-1/2"
38	AR39677	1	PUSH PULL CABLE	-
38	R39725	2	SEAL	-
38	R39726	1	SEAL	-
38	R39727	1	SEAL	-
39	R27747	1	CLAMP	-
40	19H1227	1	Cap Screw	1/4" X 1/2"
40	12H302	1	Lock Washer	1/4"
41	14H812	1	NUT	3/8"
42	12H304	1	Lock Washer	3/8"
43	B1664R	1	SHIM	-
44	R27612	1	STUD	3/8" X 2-3/16"

TRANSMISSION SHIFTER CONTROL (POWER SHIFT) [01G10]
