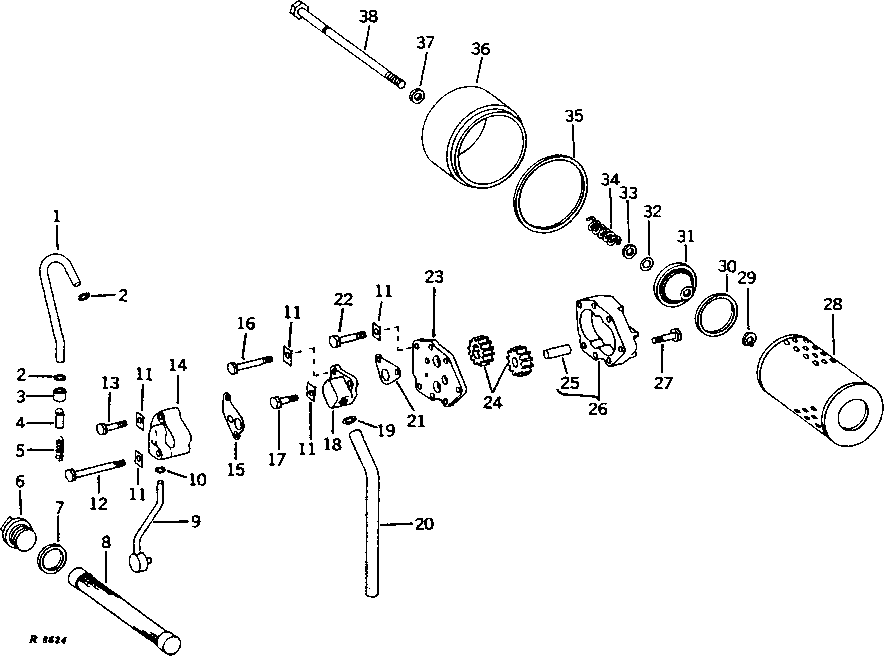

TRANSMISSION OIL FILTER AND OIL PUMP (COLLAR SHIFT) [01F18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R33432	1	OIL TUBE	-
2	R394R	2	O-Ring	-
3	R26313	1	BUSHING	-
4	R26308	1	VALVE	-
5	R26309	1	SPRING	-
6	A4806R	1	PLUG	-
7	A4808R	1	WASHER	ALUMINUM
8	AR26375	1	SCREEN	-
9	AR32188	1	OIL LINE	-
10	A3917R	1	O-Ring	-
11	T13857	6	LOCK PLATE	-
12	19H1897	1	Cap Screw	5/16" X 3-3/4"
13	19H3552	1	Cap Screw	5/16" X 1-1/2"
14	-	1	Part 14	( R33428 - NO LONGER AVAILABLE)
15	R33438	1	GASKET	-
16	19H3636	1	Cap Screw	5/16" X 2-1/2"
17	19H1849	1	Cap Screw	5/16" X 1-1/4"
18	R33429	1	PUMP	-
19	B2762R	1	O-Ring	-
20	R33433	1	OIL TUBE	-
21	R33441	1	GASKET	-
22	19H3132	2	Cap Screw	5/16" X 2-1/4"
23	-	1	Part 23	(A) ( R33435 NO LONGER AVAILABLE)
24	AR26942	1	GEAR	(A) (DRIVEN AND IDLER)
25	T25317	1	DOWEL PIN	(A)
26	-	1	Part 26	(A) WITH PIN ( AR32186 NO LONGER AVAILABLE) (SUB FOR R33426)
27	19H1849	2	Cap Screw	(A) 5/16" X 1-1/4"
28	AR75603	1	FILTER ELEMENT	(SUB FOR AR28271 AND AR75601)
29	R32507	1	Snap Ring	-
30	R28594	1	WASHER	-
31	R65892	1	RETAINER	(USE WITH F2741R, SQUARE CROSS-SECTION O-RING)
31	R28593	1	RETAINER	(USE WITH R394R, ROUND CROSS-SECTION O-RING) (SUB R65892 AND F2741R)
32	R394R	1	O-Ring	(USE WITH R28593, RETAINER)
32	F2741R	1	Packing	(USE WITH R65892, RETAINER)
33	24H1227	1	Washer	17/32" X 13/16" X 0.060"
34	R66064	1	SPRING	(SUB FOR R1769R)
35	R34733	1	WASHER	-
36	R39794	1	COVER	-
37	R394R	1	O-Ring	-
38	R39795	1	CAP SCREW	-
..	AR33331	1	OIL PUMP	(CONSISTS OF BODY, GEARS, COVER, AND DOWEL PIN)

TRANSMISSION OIL FILTER AND OIL PUMP (COLLAR SHIFT) [01F18]
