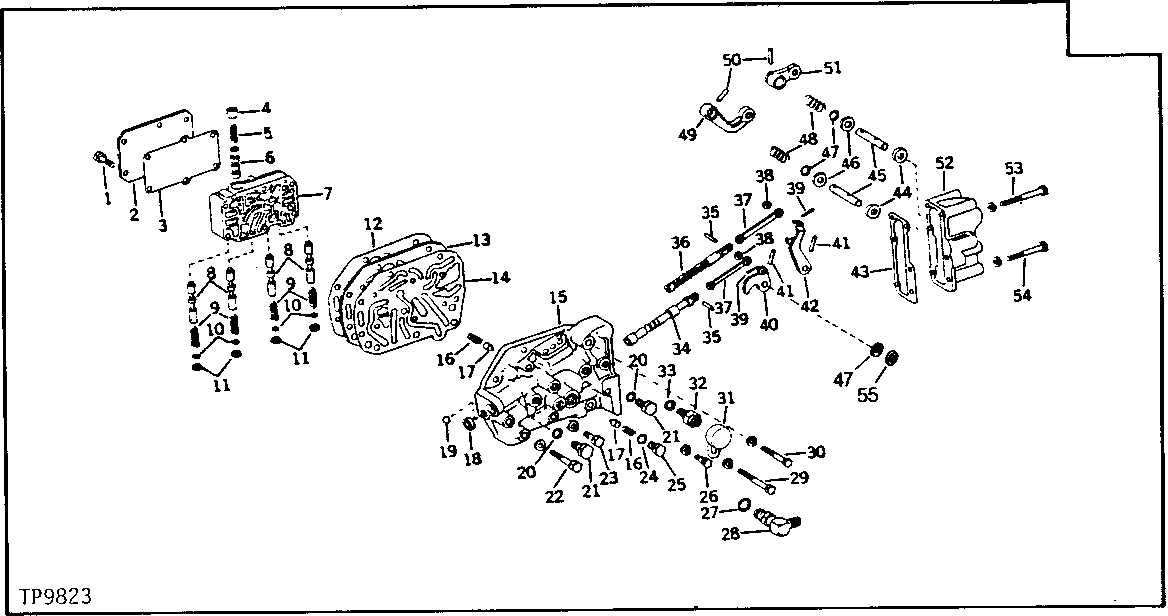

TRANSMISSION CONTROL VALVE AND SHIFT VALVE (POWER SHIFT) [01G08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3636	6	Cap Screw	5/16" X 2-1/2"
2	R33307	1	COVER	-
3	R33276	1	GASKET	-
4	R34175	1	BOLT	-
5	R33284	1	SPRING	-
6	R33306	1	PRESSURE RELIEF VALVE	-
7	-	1	Part 7	( R33077 USE IF AVAILABLE)
8	R33293	4	VALVE	-
9	R33280	4	SPRING	-
10	R33294	4	WASHER	-
11	R33282	4	Snap Ring	-
12	R33273	1	GASKET	-
13	R33304	1	PLATE	-
14	R33274	1	GASKET	-
15	AR33890	1	HOUSING	(SUB FOR R33076)
16	R33277	4	SPRING	-
17	R33305	4	DETENT	-
18	A3910R	1	PLUG	-
19	D2361R	1	Ball	-
20	R26286	2	O-Ring	-
21	R27094	2	Drain Plug	-
22	19H2458	2	Cap Screw	3/8" X 3"
22	12H304	2	Lock Washer	3/8"
23	19H3239	2	Cap Screw	3/8" X 1-1/4"
23	12H304	2	Lock Washer	3/8"
24	R26448	2	O-Ring	-
25	R27218	2	Fitting Plug	-
26	19H1765	2	Cap Screw	3/8" X 1-3/4"
26	12H304	2	Lock Washer	3/8"
27	R26906	1	O-Ring	-
28	AR35712	1	ELBOW FITTING	-
29	19H3404	1	Cap Screw	3/8" X 4"
29	12H304	1	Lock Washer	3/8"
30	19H2855	1	Cap Screw	3/8" X 3-1/4"
30	12H304	1	Lock Washer	3/8"
31	-	1	Part 36	NOT REQUIRED
32	R36265	1	SWITCH	-
33	T16911	1	SHIM	(ALUMINUM)
34	R33291	1	VALVE	-
35	34H309	2	Spring Pin	1/4" X 5/8"
36	R48370	1	VALVE	(SUB FOR R33292, 34H299 AND 34H252, THIS APPLICATION)
37	R33290	2	LINK	-
38	24H1287	2	Washer	9/32" X 5/8" X 0.065"
39	11M7077	2	Cotter Pin	1.600 X 25 MM
40	-	1	Part 45	( AR32154 NO LONGER AVAILABLE) (SUB AR53841, R49817, R49819, 34H297, 34H251)
40	AR53841	1	ARM	(REPLACEMENT PART FOR AR32154)
41	34H282	2	Spring Pin	3/16" X 1", (USE WITH AR32154 OR AR32155)
41	R56504	2	Spring Pin	(USE WITH AR53840 OR AR53841)
42	-	1	Part 49	( AR32155 NO LONGER AVAILABLE) (SUB AR53840, R49816, R49819, 34H297, 34H251, 34H299 AND 34H252, THIS APPLICATION)
42	AR53840	1	ARM	(REPLACEMENT PART FOR AR32155) (WITH BEARING)
43	R33275	1	GASKET	-
44	AR103873	2	Seal	(SUB FOR R33587)
45	-	1	Part 53	( R33287 NO LONGER AVAILABLE) (SUB AR53840, R49816, R49819, 34H297, 34H251, 34H299, AND 34H252, THIS APPLICATION)
45	R49819	1	PIN	(REPLACEMENT PART FOR R33287)
46	R36364	2	WASHER	-
47	24H1359	4	Washer	5/8" X 7/8" X 0.060"
48	F3221R	2	SPRING	-
49	R33271	1	ARM	(SUB AR53840, R49816, R49819, 34H297, 34H251, 34H299 AND 34H252, THIS APPLICATION)
49	R49816	1	LEVER	(REPLACEMENT PART FOR R33271)
50	34H299	2	Spring Pin	7/32" X 1-1/4"
51	-	1	Part 61	( R33272 NO LONGER AVAILABLE) (SUB AR53841, R49817, R49819, 34H297, 34H251, 34H299 AND 34H252, THIS APPLICATION)
52	-	1	Part 62	( R33268 - NO LONGER AVAILABLE)
53	19H3445	1	Cap Screw	3/8" X 3-3/4"
53	12H304	1	Lock Washer	3/8"
54	19H2855	5	Cap Screw	3/8" X 3-1/4"
54	12H304	5	Lock Washer	3/8"
55	24H1806	1	Washer	37/64" X 7/8" X 0.036"
