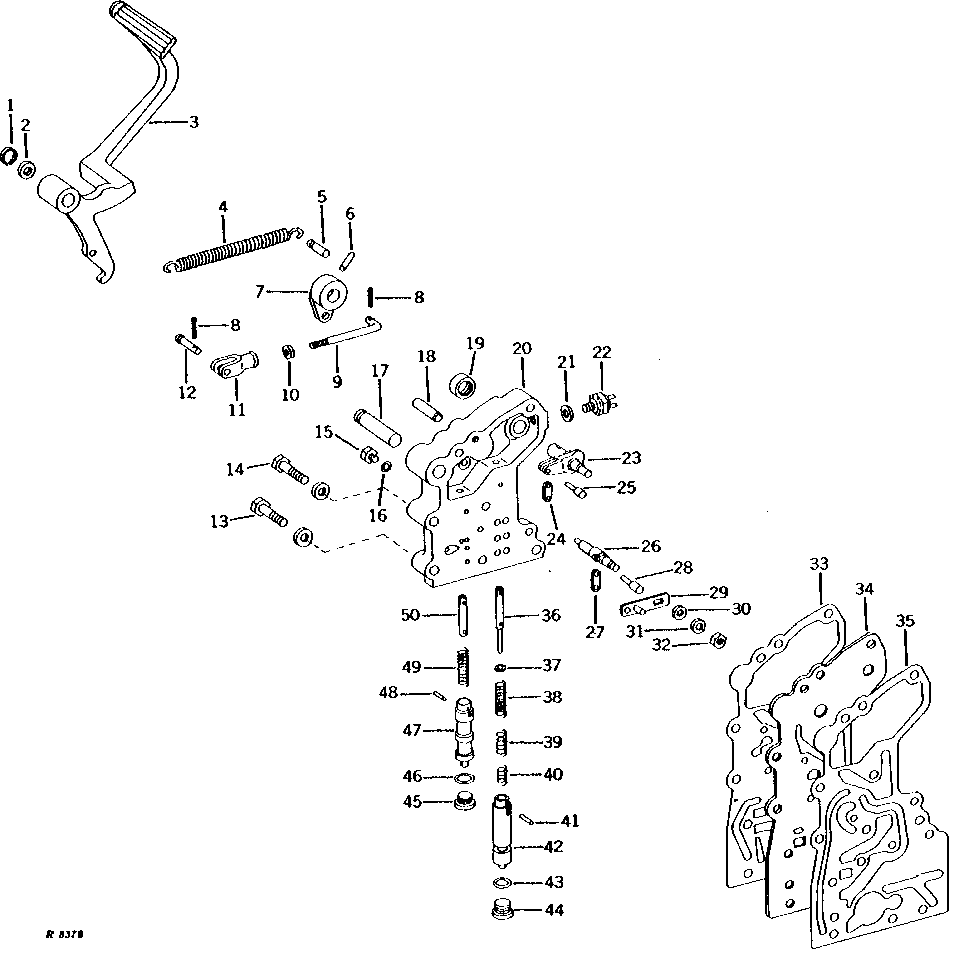

TRANSMISSION CLUTCH VALVE (POWER SHIFT) [01F05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R73380	1	Snap Ring	(SUB FOR A369R)
2	24H1395	1	Washer	25/32" X 1-7/16" X 0.060"
3	R33172	1	PEDAL	-
4	R33179	1	SPRING	-
5	R33837	1	PIN FASTENER	-
6	E63018	1	Spring Pin	21/64" X 1-3/4", (SUB FOR 34H188)
7	R33157	1	LEVER	-
8	11M7081	2	Cotter Pin	3/32" X 1-3/4"
9	R33165	1	HOOK BOLT	-
10	14H732	1	Nut	3/8"
11	C284R	1	Yoke	-
12	C1067R	1	PIN FASTENER	(USE IF AVAILABLE)
12	R65563	1	Pin Fastener	(SUB FOR C1067R)
13	19H2055	5	CAP SCREW	7/16" X 2-1/4"
13	12H293	5	Lock Washer	7/16"
14	19H2227	2	CAP SCREW	7/16" X 2-1/2"
14	12H293	2	Lock Washer	7/16"
15	R27094	3	Drain Plug	-
16	R26286	3	O-Ring	-
17	R33156	1	PIN FASTENER	-
18	B3595R	2	DOWEL PIN	-
19	AF2907R	1	Seal	-
20	AR40794	1	HOUSING	(SUB FOR R41153 OR R41668)
21	T16911	1	SHIM	-
22	R36265	1	SWITCH	-
23	AR32128	1	SHAFT	WITH ARMS
24	R28401	1	LINK	-
25	R33145	2	PIN	-
26	AR98146	1	SHAFT	(A)
26	AR61609	1	SHAFT	(A) (SUB FOR AR27720 AND AR48690) (SUB AR98146 AND (2) R28359, THIS APPLICATION) (ALSO ORDER AR48689 ARM)
27	R28401	1	LINK	(A)
28	R33145	2	PIN	(A)
29	AR48689	1	ARM	(A) (SUB FOR AR27722, THIS APPLICATION)
30	24H1287	1	Washer	(A) 9/32" X 5/8" X 0.065"
31	12H302	1	Lock Washer	(A) 1/4"
32	14H786	1	Nut	(A) 1/4"
33	R33178	1	GASKET	-
34	R33164	1	PLATE	-
35	R33177	1	GASKET	-
36	R33137	1	SHAFT	-
37	R33521	1	Shim	-
38	R33173	1	Spring	-
39	R33174	1	SPRING	-
40	R33175	1	SPRING	-
41	34H245	1	Spring Pin	1/8" X 5/8"
42	R33136	1	VALVE	-
43	R26375	1	O-Ring	-
44	R33138	1	Fitting	-
45	R33138	1	Fitting	(A)
46	R26375	1	O-Ring	(A)
47	R41502	1	VALVE	(A)
48	34H260	1	SPRING PIN	5/32" X 5/8"
49	R31725	1	SPRING	(A)
50	R41503	1	SHAFT	(A)
