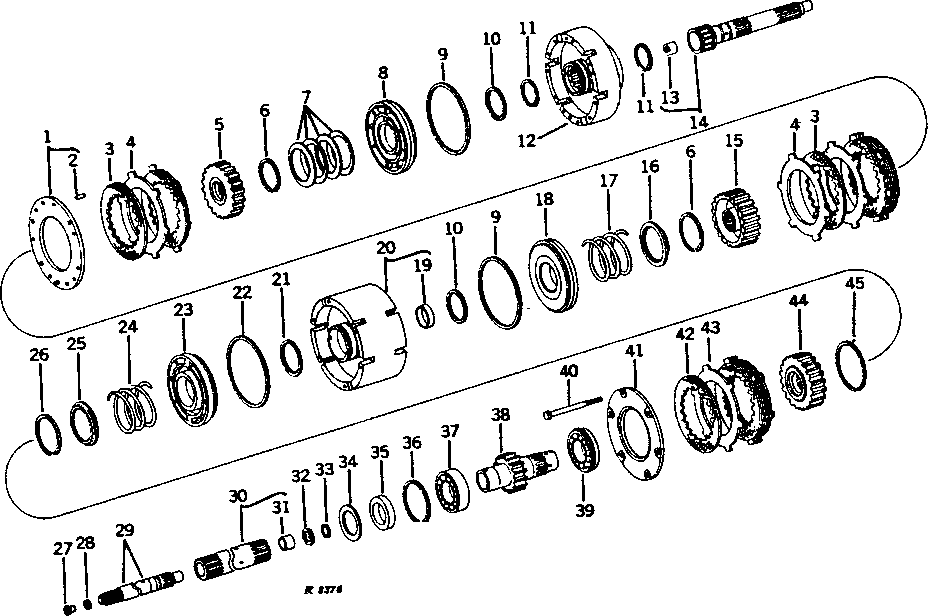

TRANSMISSION CLUTCH PACK (POWER SHIFT) [01F03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR32136	1	PLATE	WITH PINS
2	R30587	2	Dowel Pin	-
3	RE23000	6	CLUTCH DISK	(SUB FOR R31404, THIS APPLICATION)
4	R80813	6	Clutch Plate	(SUB FOR R33873)
5	R33183	1	HUB	-
6	R33247	2	Snap Ring	-
7	R67840	4	Disk Spring	(SUB FOR R33518)
8	R41105	2	PISTON	(SUB FOR R33517) (ALSO ORDER R41166)
9	R33059	2	SEALING WASHER	(USE WITH R33517)
10	R33246	2	Seal	(USE WITH R41166)
11	R33169	2	Snap Ring	-
12	R41036	1	DRUM	-
13	R33168	1	BUSHING	-
14	AR32462	1	SHAFT	WITH BUSHING
15	R33192	1	HUB	-
16	R33114	1	ROUND RETAINER	-
17	R31359	1	SPRING	-
18	R33186	1	PISTON	-
19	R33073	1	BUSHING	-
20	-	1	Part 20	WITH BUSHING ( AR32116, MARKED R33074, NO LONGER AVAILABLE)
21	R33246	1	Seal	(A)
22	R33059	1	SEALING WASHER	(A)
23	R33186	1	PISTON	(A)
24	R31359	1	SPRING	(A)
25	R33114	1	ROUND RETAINER	(A)
26	R33247	1	Snap Ring	(A)
27	R34141	1	RETAINER	-
28	R34140	1	Ring	-
29	R33124	1	SHAFT	-
29	R41751	1	SHAFT	-
30	AR42093	1	SHAFT	WITH BUSHING
31	R33109	1	BUSHING	-
32	R33118	1	THRUST WASHER	-
33	R26643	1	Snap Ring	-
34	R34204	1	THRUST WASHER	-
35	R33116	1	SPACER	-
36	F1373R	1	Snap Ring	-
37	JD9390	1	BALL BEARING	(SUB FOR JD9279) WITH SNAP RING
38	-	1	Part 39	( R33333 NO LONGER AVAILABLE)
39	JD9280	1	Ball Bearing	-
40	19H2653	6	Cap Screw	5/16" X 4-3/4"
41	R33188	1	Plate	(A)
42	RE23000	3	CLUTCH DISK	(A) WITH FACING, (SUB FOR R31404, THIS APPLICATION)
43	R80813	1	Clutch Plate	(A) (SUB FOR R33873)
43	R39325	2	CLUTCH PLATE	(A) (SUB FOR R32313) WAVE TYPE
44	R33187	1	HUB	(A)
45	R33520	1	Snap Ring	(A)
..	-	1	Part 48	CLUTCH DRIVE OVERHAUL (CONSISTS OF CLUTCH DRIVE SHAFT, OIL PUMP BODY, PUMP DRIVE GEAR, LOCK PLATES, GASKETS AND PACKINGS) ( AR34920 NO LONGER AVAILABLE)

TRANSMISSION CLUTCH PACK (POWER SHIFT) [01F03]

Нет текстового описания
