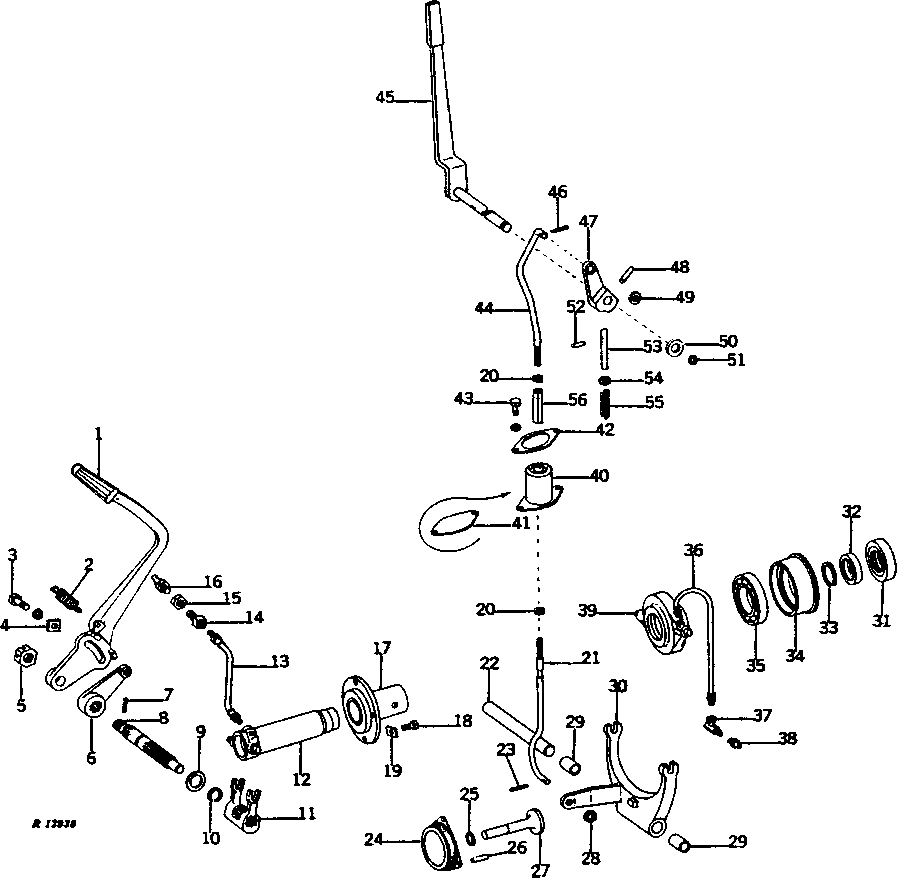

TRANSMISSION AND PTO CLUTCH CONTROLS (COLLAR SHIFT) [01E20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	( R27304 NO LONGER AVAILABLE)
2	R26833	1	EXTENSION SPRING	-
3	12H301	1	Lock Washer	1/2"
3	19H2993	1	Cap Screw	1/2" X 1-1/2"
4	R27305	1	STRAP	-
5	C1104R	1	NUT	-
6	R26652	1	LEVER	-
7	11M7083	1	Cotter Pin	3.200 X 50 MM
8	R44277	1	SHAFT	(SUB FOR R31394)
9	24H1477	1	Washer	1-5/32" X 1-3/4" X 0.060"
10	R26643	1	Snap Ring	-
11	R31393	1	FORK	-
12	-	1	Part 13	WITH PINS ( AR32274 NO LONGER AVAILABLE) (SUB FOR R32160)
13	R33721	1	HYDRAULIC HOSE	1/8" X 146 MM (5-3/4") X 1/8"
14	R36311	1	Fitting	-
15	E12379	1	Nut	-
16	JD7788	1	Lubrication Fitting	-
17	AR31691	1	SUPPORT	(SUB FOR R27028)
18	19H2284	4	Cap Screw	3/8" X 7/8"
19	R1888R	4	STRAP	-
20	14H473	2	NUT	(A) 1/2"
21	R33575	1	ROD	(A)
22	R33925	1	DOWEL PIN	(A)
23	11M7015	1	Cotter Pin	(A) 3.200 X 25 MM
24	AR45170	1	BRAKE SHOE	(A) (SUB FOR AR32294)
25	B2762R	1	O-Ring	(A)
26	R36666	3	DOWEL PIN	(A)
27	-	1	Part 28	(A) ( R33574 NO LONGER AVAILABLE)
28	24H1341	1	Washer	(A) 17/32" X 15/16" X 0.060"
29	R776R	2	BUSHING	(A)
30	AR32712	1	FORK	(A) WITH BUSHINGS, (SUB FOR R33796)
31	AR26533	1	THRUST BEARING	-
32	-	1	Part 33	( R32163 NO LONGER AVAILABLE)
33	A5518R	1	Snap Ring	-
34	R27665	1	SHIFT COLLAR	(A)
35	AR26845	1	BALL BEARING	(A)
36	R32164	1	HOSE	(A) 1/8" X 194 MM (7-1/2") X 1/8"
37	R32222	1	Union Fitting	(A)
38	JD7797	1	Lubrication Fitting	(A)
39	AR31259	1	SLEEVE	(A) (SUB FOR R32169)
40	R33962	1	BOOT	(A)
41	R34212	1	GASKET	(TRACTOR LESS PTO)
42	R33963	1	STRAP	-
43	12H303	2	Lock Washer	5/16"
43	19H2127	2	Cap Screw	5/16" X 7/8"
44	-	1	Part 46	(A) ( R33960 NO LONGER AVAILABLE)
45	-	1	Part 47	(A) ( AR32927 NO LONGER AVAILABLE)
46	11H236	1	Cotter Pin	(A) 1/8" X 1"
47	R33964	1	ARM	(A)
48	34H331	1	Spring Pin	5/16" X 1-1/2"
49	24H1227	1	Washer	(A) 17/32" X 13/16" X 0.060"
50	24H1396	1	Washer	(A) 25/32" X 1-1/2" X 0.105"
51	R73380	1	Snap Ring	(A) (SUB FOR A369R)
52	34H249	1	Spring Pin	1/8" X 7/8"
53	R26683	1	PIN FASTENER	(A)
54	24H1325	1	Washer	(A) 15/32" X 59/64" X 0.065"
55	H63313	1	SPRING	(A) (SUB FOR P28102)
56	R33961	1	COUPLING	(A)
