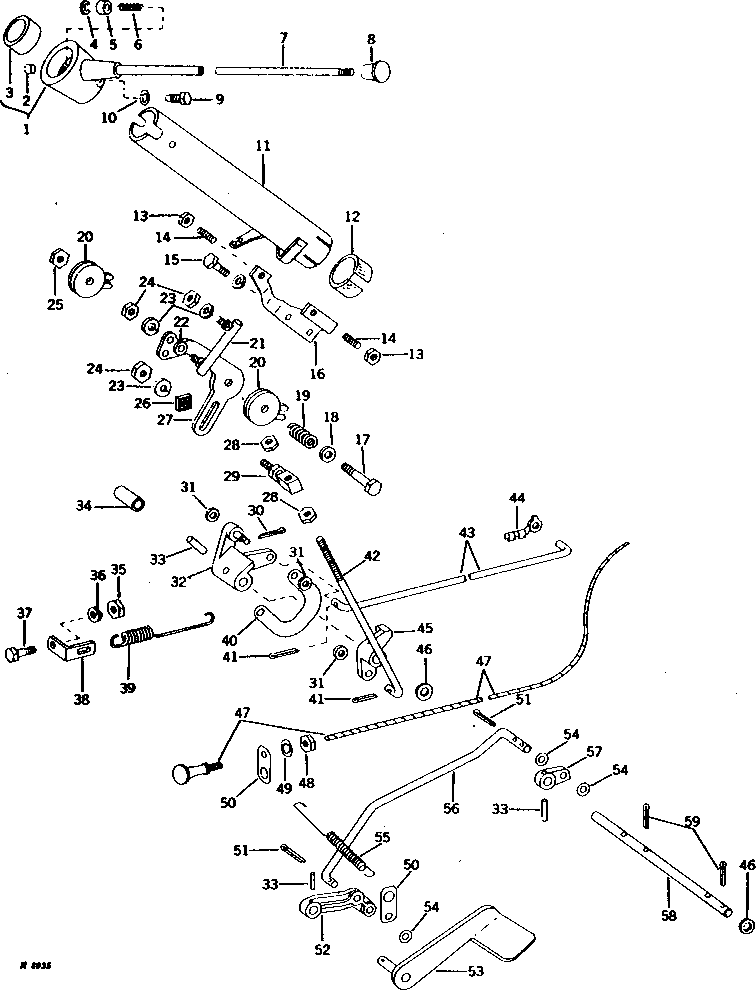

SPEED CONTROL LINKAGE (GASOLINE) [01C20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR30472	1	HUB	(HAND SPEED CONTROL, WITH LEVER, PIN AND BUSHING) (SUB FOR R27072)
2	R27074	1	DOWEL PIN	-
3	R27075	1	BUSHING	-
4	R30828	1	SNAP RING	-
5	R38377	1	WASHER	-
6	R28009	1	SPRING	-
7	R38376	1	LEVER	-
8	R26670	1	KNOB	-
9	R28007	1	BOLT	-
10	12H310	1	Lock Washer	3/8"
11	AR34356	1	TUBE	WITH FACING
12	R26958	1	ISOLATOR	-
13	14H611	2	Nut	5/16"
14	R32585	2	SET SCREW	-
15	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1"
15	12H304	2	Lock Washer	3/8"
16	R28008	1	BRACKET	-
17	19H2553	1	Cap Screw	3/8" X 2-5/8"
18	24H1305	1	Washer	13/32" X 13/16" X 0.065"
19	R31271	1	Compression Spring	-
20	R33976	2	PLATE	-
20	R39985	2	WASHER	-
21	R33972	1	TIE ROD ASSEMBLY	-
22	-	1	Part 24	(NOT FURNISHED)
23	12H302	3	Lock Washer	1/4"
24	14H649	3	Nut	1/4"
25	14H732	1	Nut	3/8"
26	R32305	1	WASHER	-
27	-	1	Part 29	( R33978 - NO LONGER AVAILABLE)
28	14H850	2	NUT	1/4"
29	AA5302R	1	BALL JOINT	-
30	11M7079	1	Cotter Pin	2.500 X 12 MM
31	24H1287	3	Washer	9/32" X 5/8" X 0.065"
32	AR32603	1	LEVER	(SUB FOR R33988)
33	34H312	3	Spring Pin	1/4" X 1"
34	-	1	Part 36	( R42113 NO LONGER AVAILABLE)
35	14H812	1	NUT	3/8"
36	12H304	1	Lock Washer	3/8"
37	19H2021	1	Cap Screw	3/8" X 5/8"
38	-	1	Part 40	( R34369 - NO LONGER AVAILABLE)
39	R33991	1	SPRING	-
40	R33992	1	PIVOT	-
41	11M7082	2	Cotter Pin	2.500 X 25 MM
42	R34708	1	BOLT	-
43	R34710	1	ROD	-
44	R26524	1	Clip	-
45	-	1	Part 47	( R33986 - NO LONGER AVAILABLE)
46	24H1227	2	Washer	17/32" X 13/16" X 0.060"
47	AR50707	1	PUSH PULL CABLE	(SUB FOR AR27312)
48	14H774	1	Nut	3/8"
49	12H310	1	Lock Washer	3/8" (INT. TOOTH)
50	-	2	Part 52	( A4961R - NO LONGER AVAILABLE)
51	11M7059	3	Cotter Pin	3.200 X 20 MM
52	R33994	1	ARM	-
53	AR26775	1	PEDAL	-
54	24H1305	3	Washer	13/32" X 13/16" X 0.065"
55	F2762R	1	SPRING	-
56	R34017	1	ROD	-
56	R42274	1	ROD	-
57	R33983	1	ARM	-
58	R33987	1	PIN FASTENER	-
58	R34811	2	GROMMET	(NYLON) (NOT ILLUSTRATED)
59	11M7021	2	Cotter Pin	4 X 25 MM

SPEED CONTROL LINKAGE (GASOLINE) [01C20]
