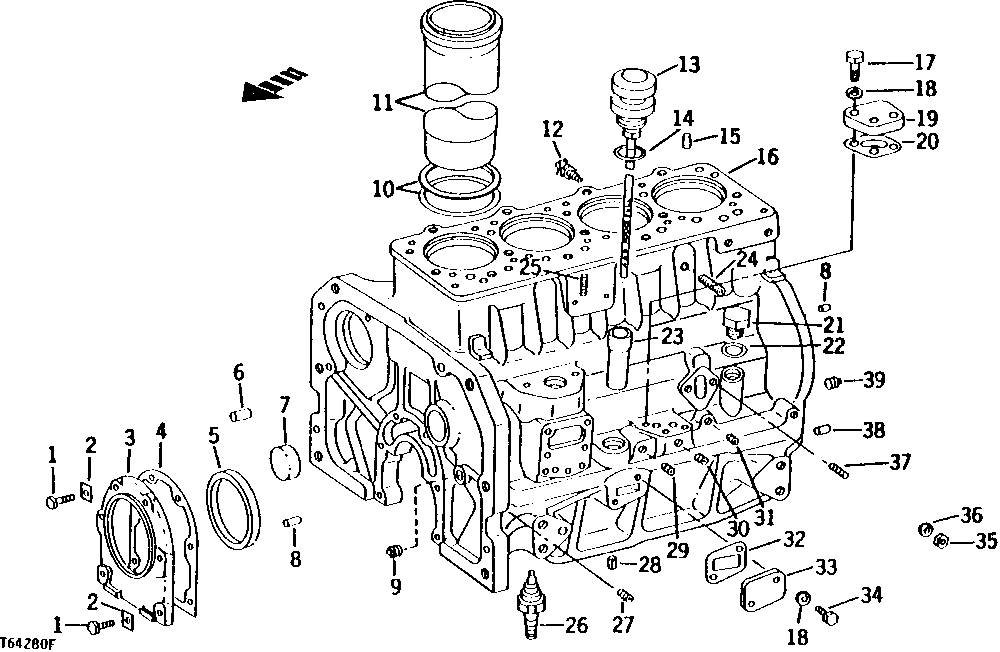

REPLACEMENT CYLINDER BLOCK (DIESEL) [01B03]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R47074	6	Cap Screw	(USE WITH BLOCK MARKED R46430)
1	19H2705	6	Cap Screw	5/16" X 1"
2	R35128	6	LOCK PLATE	(SUB FOR T13857)
3	R41406	1	HOUSING	-
4	R26058	1	Gasket	-
5	AR63095	1	SEAL	-
6	R43634	1	DOWEL PIN	(USE WITH BLOCK MARKED R46430)
7	R26115	1	Plug	-
8	F1743R	5	Dowel Pin	-
9	15H623	1	Pipe Plug	3/8"
10	AR70645	4	O-RING KIT	(USE WITH BLOCK MARKED R46430)
11	AR68650	4	KIT	(USE WITH BLOCK MARKED R46430)
12	AR44382	1	DRAIN VALVE	(USE WITH BLOCK MARKED R46430)
13	AR40751	1	DIPSTICK	(USE WITH BLOCK MARKED R46430)
14	A4730R	2	O-Ring	(USE WITH AR40751)
15	R48685	2	Dowel Pin	(SUB FOR R26241, THIS APPLICATION)
16	-	1	Part 17	WITH LINERS, BALANCER HOUSING, DIPSTICK, CAM FOLLOWERS, PUSH RODS, CYLINDER HEAD SCREWS AND WASHERS, CAMSHAFT, THRUST PLATE, BUSHINGS, STUDS, PLUGS, AND DOWEL PINS, ( AR48625 NO LONGER AVAILABLE) (MARKED R46430)
17	19H3239	3	Cap Screw	3/8" X 1-1/4"
18	12H304	3	Lock Washer	3/8"
19	R42493	1	COVER	-
20	-	1	Part 21	( R42494 - NO LONGER AVAILABLE)
21	R27175	1	Drain Plug	(OIL COOLER RETUN LINE HOLE IN BLOCK)
22	U12547	1	O-Ring	(SUB FOR F3171R) (OIL COOLER RETURN LINE HOLE IN BLOCK)
23	R41070	1	TUBE	(USE WITH BLOCK MARKED R46430)
24	K3083R	2	STUD	7/16" X 1-3/4"
25	M3636T	2	STUD	3/8" X 1-1/2"
26	AT85174	1	Switch	(SUB FOR AR27977)
27	R21630	5	PIPE PLUG	-
28	34H366	2	SPRING PIN	1/2" X 1"
29	15H638	1	Pipe Plug	1/8"
30	15H571	1	PIPE PLUG	3/8"
31	15H638	1	Pipe Plug	1/8"
32	R46192	1	GASKET	-
33	R26825	1	COVER	-
34	19H2284	2	Cap Screw	3/8" X 7/8"
35	14H785	2	Nut	5/16"
36	12H303	2	Lock Washer	5/16"
37	R48755	2	STUD	5/16" X 1-1/2"
38	R1612R	2	Dowel Pin	-
39	15H561	1	Pipe Plug	1/2", (USE WITH BLOCK MARKED R46430)

REPLACEMENT CYLINDER BLOCK (DIESEL) [01B03]
