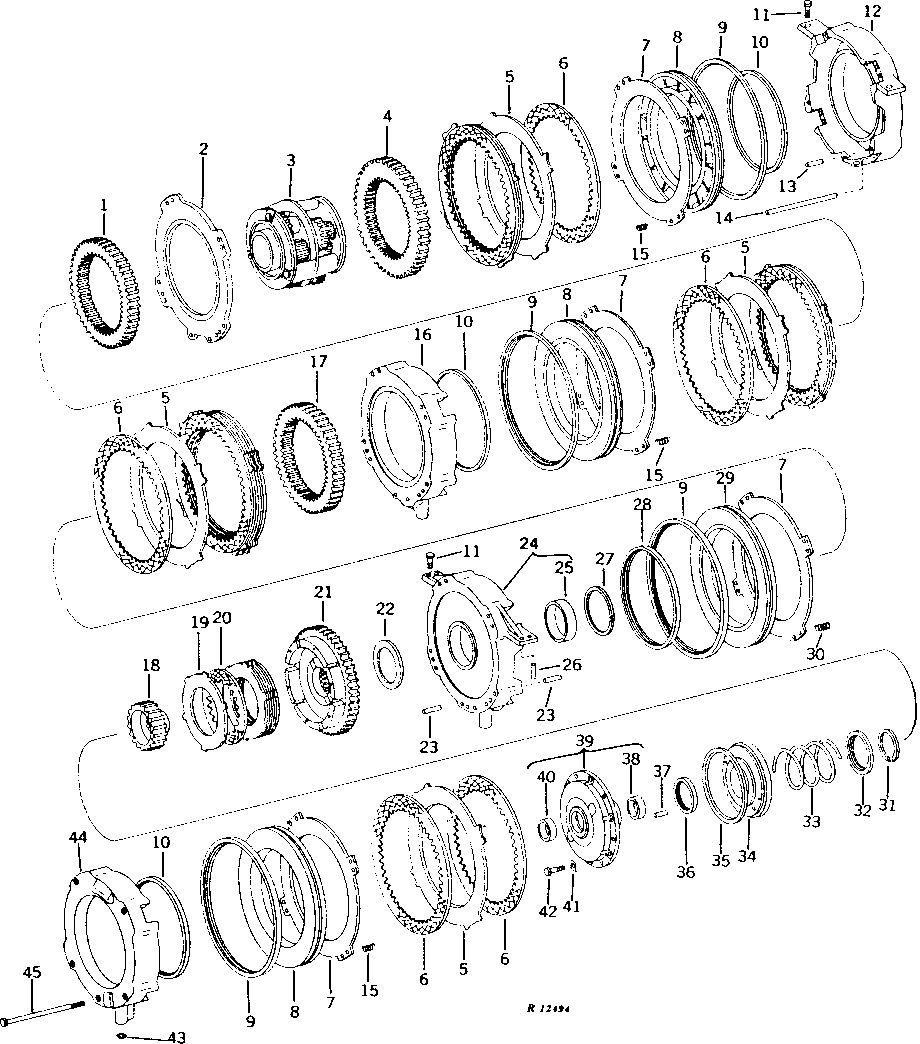

PLANETARY BRAKES AND CLUTCH PACK (POWER SHIFT) [01G01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R33051	1	RING GEAR	-
2	R33103	1	PLATE	-
3	-	1	Part 3	(FOR SERVICE PARTS SEE PAGE 35-38)
4	R33050	1	GEAR	-
5	R33872	4	PLATE	-
6	R227405	8	BRAKE DISK	(SUB FOR R33053)
7	R33871	4	PLATE	-
8	R65592	3	PISTON	(SUB FOR R33261)
9	R33245	4	SEAL	OUTER
10	R33244	3	SEAL	INNER
11	19H2633	4	Cap Screw	3/8" X 1-1/2"
12	R33035	1	HOUSING	FIRST PLANET
13	R36666	2	DOWEL PIN	-
14	R33111	4	PIN	-
15	R33054	24	SPRING	-
16	-	1	Part 16	SECOND PLANET ( R33036 NO LONGER AVAILABLE)
17	R33052	1	GEAR	-
18	R33102	1	HUB	-
19	R80813	3	Clutch Plate	(SUB FOR R33873)
20	RE23000	3	CLUTCH DISK	WITH FACING, (SUB FOR R31404, THIS APPLICATION)
21	R41174	1	DRUM	-
22	-	1	Part 22	(NOT REQUIRED)
23	R36666	4	DOWEL PIN	-
24	AR40987	1	HOUSING	(SUB FOR R41381) (WITH BUSHINGS AND PINS, THIRD PLANET)
25	R33045	1	BUSHING	-
26	R33703	2	DOWEL PIN	-
27	-	1	Part 27	NOT REQUIRED
28	R41379	1	SEAL	-
29	R41378	1	PISTON	-
30	H343R	8	SPRING	-
31	R33247	1	Snap Ring	-
32	R33114	1	ROUND RETAINER	-
33	R31359	1	SPRING	-
34	R33096	1	PISTON	-
34	R41160	1	PISTON	-
35	R33059	1	SEALING WASHER	-
35	R41166	1	SEAL	-
36	R33246	1	Seal	-
37	R28671	1	Dowel Pin	-
38	R34614	1	BUSHING	-
39	AR32107	1	HOUSING	(SUB FOR R33034) (WITH BUSHINGS AND DOWEL PIN)
40	R34613	1	BUSHING	-
41	R33115	6	LOCK PLATE	-
42	19H2705	6	Cap Screw	5/16" X 1"
43	R459R	4	O-Ring	-
44	-	1	Part 46	FOURTH PLANET ( R33038 NO LONGER AVAILABLE)
45	08H4098	5	CAP SCREW	3/8" X 8"

PLANETARY BRAKES AND CLUTCH PACK (POWER SHIFT) [01G01]
