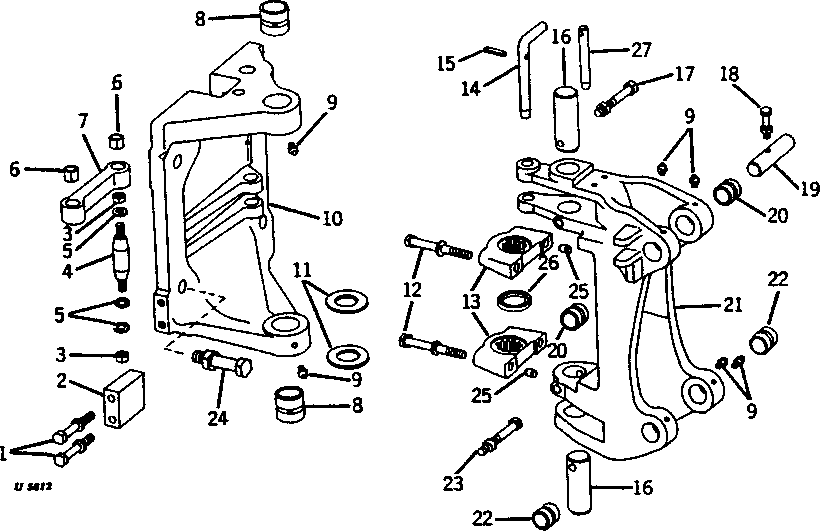

MAST FRAME AND BOOM PIVOT (95 AND 97 BACKHOES) [02E20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H301	4	Lock Washer	1/2"
1	19H2211	4	Cap Screw	1/2" X 5", (95 BACKHOE ONLY)
2	U15805	2	STOP	(95 BACKHOE ONLY)
3	E12313	4	Lock Nut	-
4	U41078	2	ROD	-
5	24H1395	6	Washer	25/32" X 1-7/16" X 0.060"
6	U41089	2	TAPERED SLEEVE	-
7	U40831	1	LINK	-
8	U41086	2	BUSHING	(95 BACKHOE ONLY)
9	JD7797	6	Lubrication Fitting	-
10	AU40917	1	FRAME	(SUB FOR U41227) (95 BACKHOE ONLY)
11	T67205	2	THRUST WASHER	(SUB FOR U41077)
12	19H3210	4	Cap Screw	3/4" X 5-1/4", (SUB FOR 19H1892)
12	12H236	4	Lock Washer	3/4"
13	U40833	2	COUPLING	-
14	T68041	1	PIN FASTENER	(95 BACKHOE ONLY) (SUB FOR U41080 AND U41722)
15	A3581R	1	Spring Locking Pin	(SUB FOR 34H321)
16	U41088	2	PIN FASTENER	-
17	19H3340	1	Cap Screw	5/8" X 5-1/2"
17	U14555	1	Lock Nut	-
18	19H3544	1	Cap Screw	1/2" X 4-1/2"
18	U12622	1	LOCK NUT	-
19	U16051	1	PIN	-
20	U16070	2	BUSHING	-
21	U41015	1	FRAME	-
22	U10618	2	BUSHING	-
23	19H3306	1	CAP SCREW	HS, SAE 8, 5/8" X 6-1/4"
23	U14555	1	Lock Nut	-
24	08H4281	4	CAP SCREW	1-1/4" X 9-1/2", (95 BACKHOE ONLY)
24	U16052	1	LOCK NUT	-
25	U41502	2	BUSHING	-
26	U41099	1	SPACER	-
27	T68041	1	PIN FASTENER	(SUB FOR U41722) (97 BACKHOE ONLY)

MAST FRAME AND BOOM PIVOT (95 AND 97 BACKHOES) [02E20]
