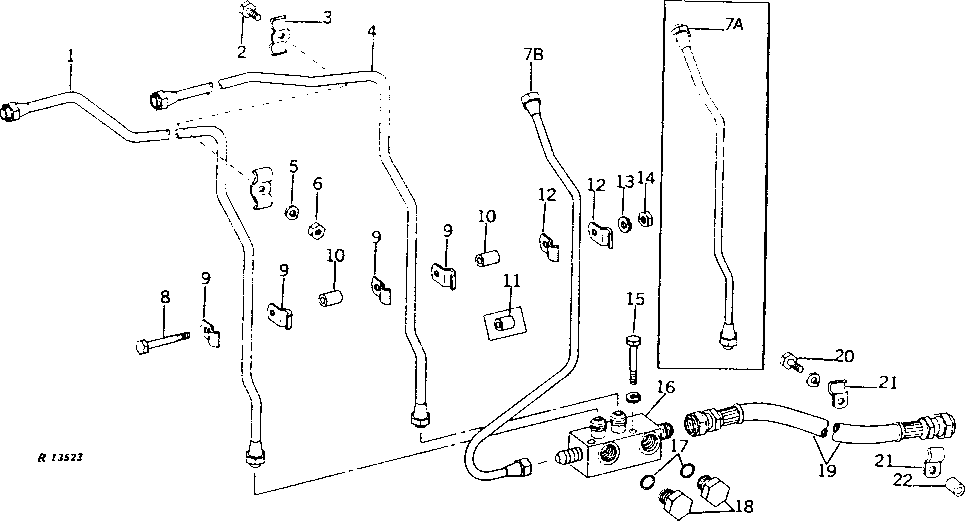

HYDRAULIC OIL OUTLET MANIFOLD AND PIPES [01I08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR31625	1	LINE	(JUNCTION BLOCK TEE TO OUTLET MANIFOLD)
2	19H1648	1	Cap Screw	3/8" X 3/4"
3	R34064	2	CLAMP	-
4	AR31624	1	LINE	(OUTLET MANIFOLD TO JUNCTION BLOCK)
5	12H304	1	Lock Washer	3/8"
6	14H812	1	NUT	3/8"
8	19H2732	1	Cap Screw	3/8" X 2-3/4"
8	19H2458	1	Cap Screw	3/8" X 3"
9	R35726	4	CLAMP	-
10	28H1495	2	Spacer	3/8" X 1"
11	28H1697	1	Spacer	3/8" X 3/4"
12	R27539	2	CLAMP	-
13	12H304	1	Lock Washer	3/8"
14	14H812	1	NUT	3/8"
15	19H3031	1	Cap Screw	3/8" X 2-1/2"
15	12H304	1	Lock Washer	3/8"
16	AR31620	1	MANIFOLD	(MARKED R32363) (NOT EXACTLY AS ILLUSTRATED)
16	AR44039	1	MANIFOLD	(MARKED R42158)
17	U12547	2	O-Ring	(SUB FOR (2) F3171R)
18	R27175	2	Drain Plug	-
19	AR40515	1	HYDRAULIC HOSE	(PUMP TO OUTLET MANIFOLD)
20	19H3483	1	Cap Screw	3/8" X 1-1/8"
20	12H304	1	Lock Washer	3/8"
21	R36180	2	CLAMP	-
22	28H1697	1	Spacer	3/8" X 3/4"
7A	AR31623	1	LINE	(HYDRAULIC OIL OUTLET MANIFOLD TO ACCUMULATOR)
7B	AR44040	1	OIL LINE	(HYDRAULIC OIL OUTLET MANIFOLD TO ACCUMULATOR)

HYDRAULIC OIL OUTLET MANIFOLD AND PIPES [01I08]
