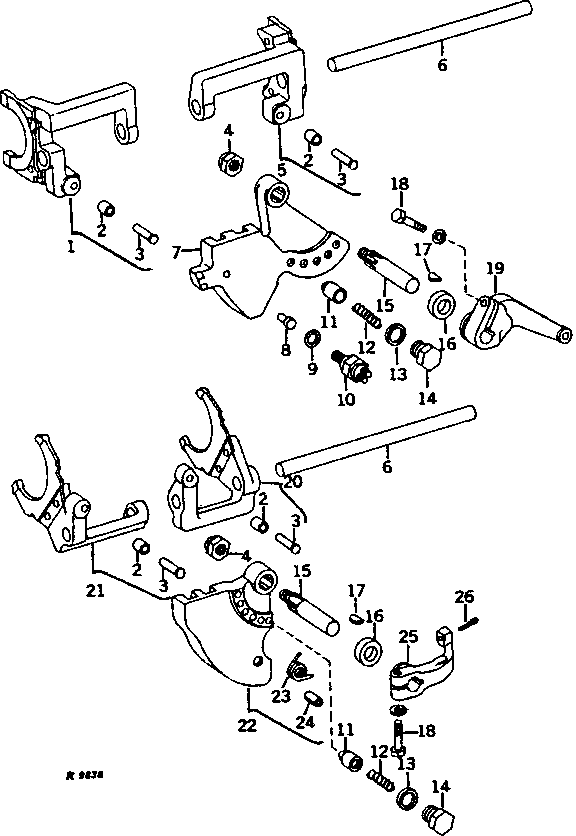

GEAR SHIFTERS AND SHIFTER SHAFTS (COLLAR SHIFT) [01F14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	WITH PIN AND ROLLER ( R33448 NO LONGER AVAILABLE) (SUB AR32193 IF AVAILABLE)
2	R26207	4	Roller	-
3	R26206	4	PIN FASTENER	-
4	E17421	2	Lock Nut	-
5	-	1	Part 5	WITH PIN AND ROLLER ( R33447 NO LONGER AVAILABLE) (SUB AR32192 IF AVAILABLE)
6	R33449	2	PIN	-
7	R33446	1	CAM	-
8	R33731	1	PIN FASTENER	-
9	T16911	2	SHIM	-
10	R36265	1	SWITCH	-
11	R26202	2	PAWL	-
12	R26203	2	SPRING	-
13	A4827R	2	Washer	-
14	R34844	2	RETAINER	-
15	R32628	2	SHAFT	-
16	AR389R	2	Seal	-
17	26H17	2	Shaft Key	3/16" X 7/8"
18	19H2633	2	Cap Screw	3/8" X 1-1/2"
18	12H304	2	Lock Washer	3/8"
19	R26398	1	LEVER	-
20	AR32197	1	LEVER	(SUB FOR R33452) (SECOND AND FIFTH, FOURTH AND SEVENTH SPEED, WITH YOKE, PIN AND ROLLER)
21	AR32196	1	LEVER	(SUB FOR R33451) (FIRST AND THIRD, SIXTH AND EIGHTH SPEED, WITH YOKE, PIN AND ROLLER)
22	AR32693	1	CAM	(SUB FOR R33771) WITH SPRING
23	R55910	1	SPRING	(SUB FOR R27243, THIS APPLICATION)
24	34H365	1	Spring Pin	1/2" X 7/8"
25	R33772	1	ARM	-
26	11M7015	1	Cotter Pin	3.200 X 25 MM
