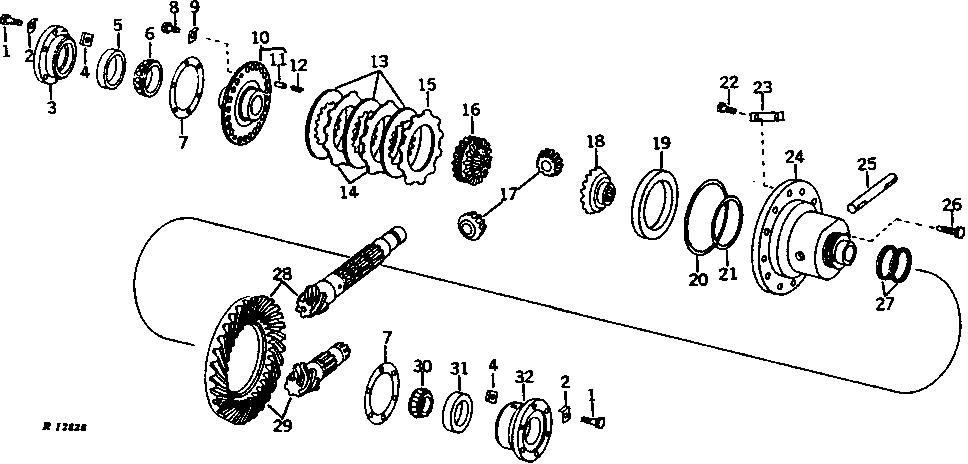

DIFFERENTIAL (TRACTORS WITH DIFFERENTIAL LOCK) [01G19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2993	12	Cap Screw	1/2" X 1-1/2"
2	R26038	11	LOCK PLATE	-
3	R33493	1	BEARING HOUSING W/O BEARING	-
4	14H823	2	NUT	1/2"
5	JD8259	1	Bearing Cup	-
6	JD8954	1	Bearing Cone	(WITH ROLLERS)
7	R26042	1	SHIM	.003" STEEL
7	R26043	1	SHIM	.005" STEEL
7	R26044	1	SHIM	.010" STEEL
8	R112877	10	Cap Screw	-
9	R34488	5	PLATE	-
10	AR34754	1	COVER	(SUB FOR R34807) (WITH PINS)
11	34H297	2	Spring Pin	7/32" X 1"
12	R34822	2	SPRING	-
13	AR33974	3	CLUTCH DISK	-
14	R78155	2	Clutch Plate	(SUB FOR R34520)
15	R78156	1	Clutch Plate	(SUB FOR R34517)
16	R42447	1	GEAR	(SUB FOR R34808)
17	R42443	2	PINION	(SUB FOR R33496)
18	R42445	1	GEAR	(SUB FOR R33490)
19	R34526	1	PISTON	-
20	R41018	1	Packing	-
21	R41019	1	O-RING	-
22	19H2252	10	CAP SCREW	1/2" X 1-3/16"
23	R34488	5	PLATE	-
24	AR34823	1	HOUSING	(SUB FOR R34806)
25	R41902	1	PINION SHAFT	-
26	R70236	1	CAP SCREW	(SPECIAL CAP WITH NYLON INSERT) (SUB FOR R41050)
27	R34513	2	Ring	-
28	AR34722	1	GEAR	(SPIRAL BEVEL, AND DIFFERENTIAL DRIVE GEAR SHAFT AND BEVEL PINION, WITH SHIMS) (SUB FOR R34875 AND R34873 AND AR34735) (ALSO ORDER (2) R26227, (4) R26228, (2) R33413 AND (4) R33414) (MATCH SET) (COLLAR SHIFT)
29	AR34736	1	BEVEL GEAR DRIVE	(SPIRAL BEVEL, AND DIFFERENTIAL DRIVE GEAR SHAFT AND BEVEL PINION, WITH SHIMS) (SUB FOR R34875, R34874 OR R33006) (MATCH SET) (POWER SHIFT)
30	JD8159	1	Bearing Cone	(WITH ROLLER)
31	JD8210	1	Bearing Cup	-
32	R34529	1	BEARING HOUSING W/O BEARING	-
