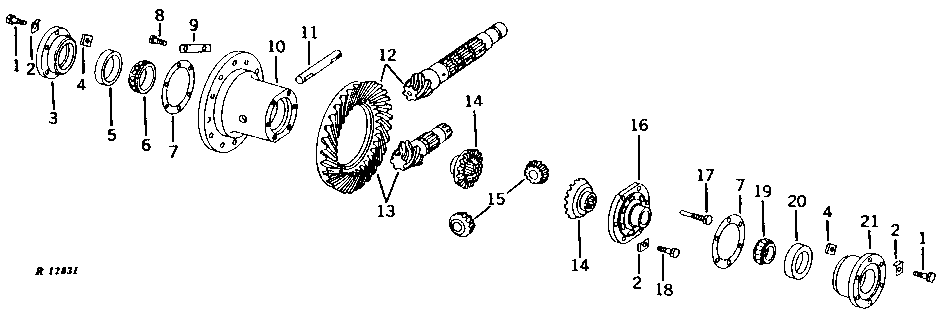

DIFFERENTIAL (TRACTORS LESS DIFFERENTIAL LOCK) [01G18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2993	12	Cap Screw	1/2" X 1-1/2"
2	R26038	17	LOCK PLATE	-
3	R33493	1	BEARING HOUSING W/O BEARING	-
4	14H823	2	NUT	1/2"
5	JD8259	1	Bearing Cup	-
6	JD8954	1	Bearing Cone	-
7	R26042	1	SHIM	.003" STEEL
7	R26043	1	SHIM	.005" STEEL
7	R26044	1	SHIM	(SUB R26043) .010" STEEL
8	19H2252	10	CAP SCREW	1/2" X 1-3/16"
9	R34488	5	PLATE	-
10	R33078	1	HOUSING	-
11	R41902	1	PINION SHAFT	-
12	AR34722	1	GEAR	(SPIRAL BEVEL, AND DIFFERENTIAL DRIVE SHAFT AND BEVEL PINION AND SHIMS) (SUB FOR R34875 AND R34873 AND AR34735) (ALSO ORDER (2) R26227, (4) R26228, (2) R33413 AND (4) R33414) (MATCHED SET) (COLLAR SHIFT)
13	AR34736	1	BEVEL GEAR DRIVE	(SPIRAL BEVEL, AND DIFFERENTIAL DRIVE SHAFT AND BEVEL PINION AND SHIMS) (SUB FOR R34875, R34874 OR R33006) (MATCHED SET) (POWER SHIFT)
14	R42445	2	GEAR	(SUB FOR R33490)
15	R42443	2	PINION	(SUB FOR R33496)
16	R33491	1	COVER	-
17	R70236	1	CAP SCREW	(SPECIAL CAP WITH NYLON INSERT) (SUB FOR R41050)
18	19H3579	5	Cap Screw	1/2" X 1-3/8"
19	JD8159	1	Bearing Cone	-
20	JD8210	1	Bearing Cup	-
21	R33492	1	BEARING HOUSING W/O BEARING	-
