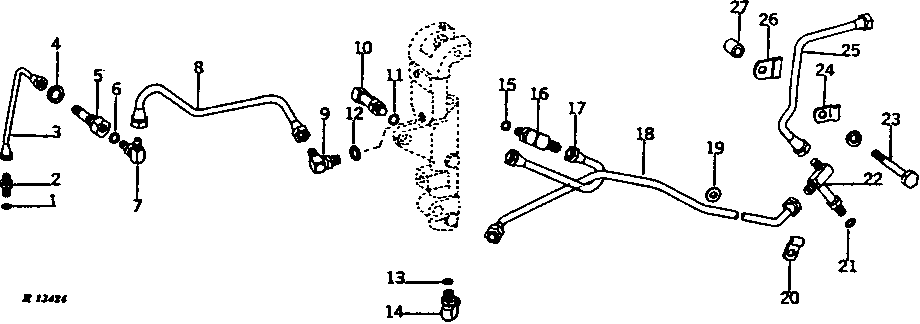

DIFFERENTIAL LOCK VALVE OIL PIPES (POWER SHIFT) [01G22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R30903	1	O-Ring	-
2	R39597	1	ADAPTER FITTING	-
3	AR33967	1	LINE	(OIL DIFFERENTIAL LOCK VALVE TO QUILL, INNER)
4	T16911	1	SHIM	-
5	-	1	Part 5	( AR39650 NO LONGER AVAILABLE)
6	R26287	1	O-Ring	-
7	AT32336	1	ELBOW FITTING	(SUB FOR AR36105)
8	-	1	Part 8	(DIFFERENTIAL LOCK VALVE TO QUILL, OUTER) ( AR44159 NO LONGER AVAILABLE)
9	AR26771	1	ELBOW FITTING	-
10	AR35710	1	ELBOW FITTING	-
11	R26286	1	O-Ring	-
12	R26286	1	O-Ring	-
13	R26286	1	O-Ring	-
14	AR40475	1	ELBOW FITTING	-
15	R26286	1	O-Ring	-
16	AR26771	1	ELBOW FITTING	-
17	AR34733	1	OIL LINE	(DIFFERENTIAL LOCK RETURN)
18	AR40478	1	OIL LINE	(BRAKE VALVE TO DIFFERENTIAL LOCK)
19	-	1	Part 19	NOT REQUIRED
20	R31654	1	CLAMP	-
20	R31655	1	STRAP	(NOT ILLUSTRATED)
21	R26287	1	O-Ring	-
22	AR40472	1	TEE FITTING	-
23	19H2661	1	Cap Screw	5/16" X 1-3/8"
23	12H303	1	Lock Washer	5/16"
24	R31654	1	CLAMP	-
25	AR39678	1	OIL LINE	LOWER
26	R31655	1	STRAP	-
27	28H3381	1	Spacer	3/8" X 5/8"

DIFFERENTIAL LOCK VALVE OIL PIPES (POWER SHIFT) [01G22]
