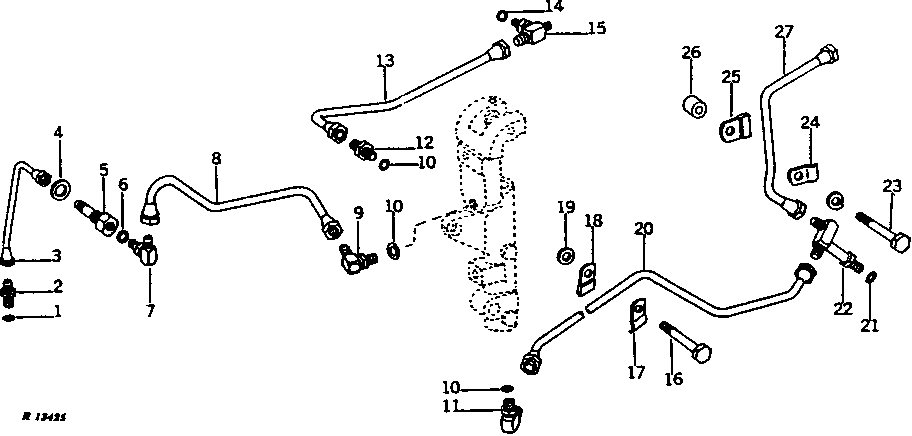

DIFFERENTIAL LOCK VALVE OIL PIPES (COLLAR SHIFT) [01G23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R30903	1	O-Ring	-
2	R39597	1	ADAPTER FITTING	-
3	-	1	Part 3	(DIFFERENTIAL LOCK VALVE TO QUILL, INNER) ( AR33967 NO LONGER AVAILABLE)
4	T16911	1	SHIM	ALUMINUM
5	-	1	Part 5	( AR39650 NO LONGER AVAILABLE)
6	R26287	1	O-Ring	-
7	AT32336	1	ELBOW FITTING	(SUB FOR AR36105)
8	-	1	Part 8	(DIFFERENTIAL LOCK VALVE TO QUILL, OUTER) ( AR44159 NO LONGER AVAILABLE)
9	AR26771	1	ELBOW FITTING	-
10	R26286	3	O-Ring	-
11	AR40475	1	ELBOW FITTING	-
12	R27272	1	Fitting	-
13	AR39792	1	LINE	-
14	R26287	1	O-Ring	-
15	AR39795	1	Tee Fitting	-
16	19H2732	1	Cap Screw	3/8" X 2-3/4"
17	R31654	1	CLAMP	-
18	R31655	1	STRAP	-
19	A147R	1	WASHER	(SUB FOR R1929R)
20	AR40477	1	OIL LINE	(BRAKE VALVE TO DIFFERENTIAL LOCK)
21	R26287	1	O-Ring	-
22	AR40472	1	TEE FITTING	-
23	19H2661	1	Cap Screw	5/16" X 1-3/8"
24	R31654	1	CLAMP	-
25	R31655	1	STRAP	-
26	28H3381	1	Spacer	3/8" X 5/8"
27	AR39678	1	OIL LINE	(BRAKE PRESSURE, LOWER)

DIFFERENTIAL LOCK VALVE OIL PIPES (COLLAR SHIFT) [01G23]
