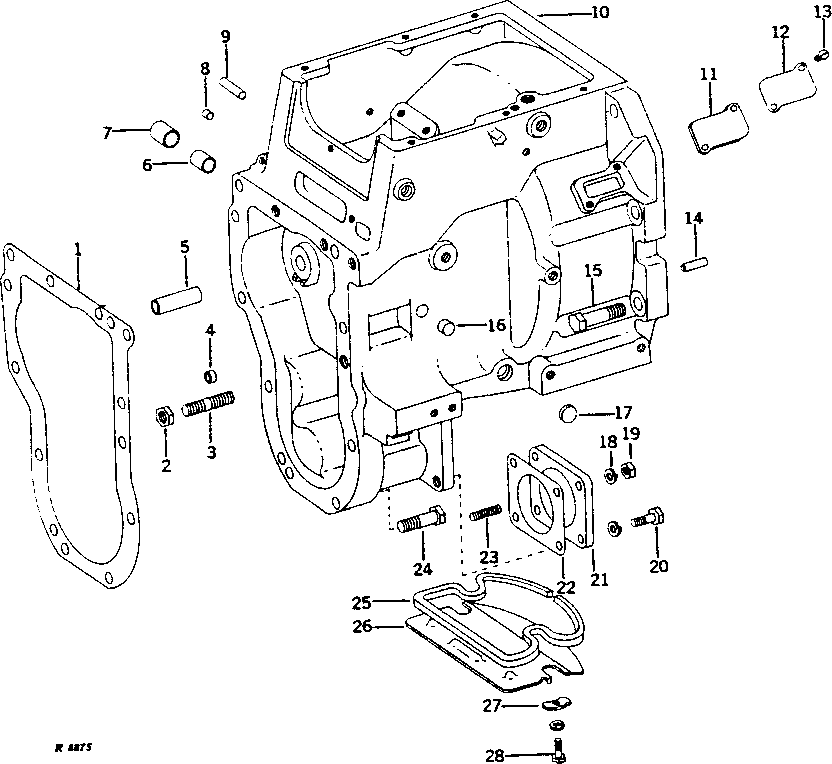

CLUTCH HOUSING (COLLAR SHIFT) [01E16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R98918	1	GASKET	(SUB FOR R33894 AND R54178)
2	14H794	1	Nut	3/4"
3	R1548R	3	Stud	3/4" X 3-1/2"
4	T12083	1	Plug	(LESS PTO) (SUB FOR T12083, THIS APPLICATION)
5	R26663	1	DOWEL PIN	-
6	R26641	1	BUSHING	-
7	R26642	1	BUSHING	-
8	R31374	1	SOLID SHIM	-
9	34H371	1	Spring Pin	1/2" X 2"
10	-	1	Part 10	(SUB FOR R41928) ( AR42103 NO LONGER AVAILABLE)
11	R67989	1	Gasket	(SUB FOR R31494)
12	R31493	1	Cover	-
13	21H1163	2	Screw	0.216" X 1/2"
14	C1220R	2	DOWEL PIN	-
15	19H1425	6	CAP SCREW	3/4" X 2-3/4"
16	R27035	1	PLUG	-
17	R27036	2	Plug	-
18	12H301	2	Lock Washer	1/2"
19	14H1040	2	Nut	1/2", (SUB FOR 14H809)
20	19H2898	2	Cap Screw	1/2" X 1-1/4"
20	12H301	2	Lock Washer	1/2"
21	R33216	1	COVER	(LESS PTO)
22	R33236	1	GASKET	-
23	R32101	2	STUD	-
24	19H1734	2	Cap Screw	5/8" X 2"
24	19H2600	5	Cap Screw	3/4" X 2-5/8"
24	19H3487	2	CAP SCREW	3/4" X 2-1/8"
25	R91558	1	PAD	(SUB FOR R30877)
26	-	1	Part 29	( R41562 - NO LONGER AVAILABLE) (SUB FOR R33576)
27	R27640	2	CLAMP	-
28	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1"
28	12H304	2	Lock Washer	3/8"

CLUTCH HOUSING (COLLAR SHIFT) [01E16]

Нет текстового описания
