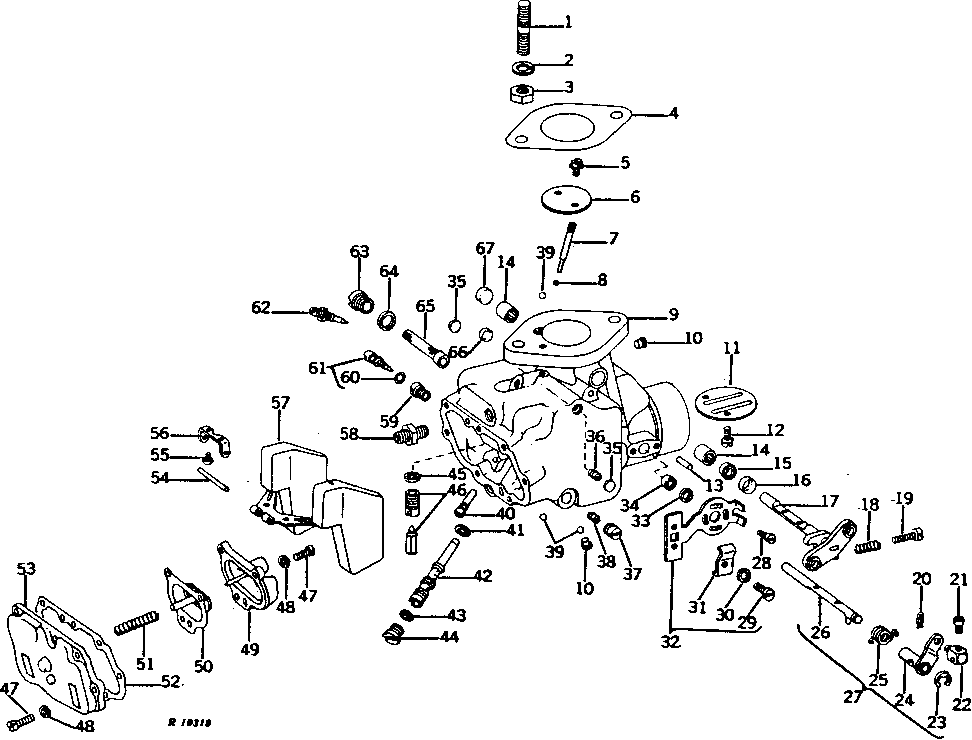

CARBURETOR (MARVEL-SCHEBLER) [01D13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R56481	2	STUD	(SUB FOR R26117 OR M3636T)
2	12H304	2	Lock Washer	3/8"
3	14H1076	2	Nut	3/8", (HS SAE 8)
4	R26499	1	GASKET	(SUB FOR R40741)
5	AA6086R	2	SCREW	-
6	R10083	1	DISK	-
7	R10220	1	NOZZLE	(A) (SUB FOR AR10102)
7	-	1	Part 8	(B) ( AR39831 - NO LONGER AVAILABLE)
8	R39874	1	FILTER	(B) (MODEL USX-31 AND MODEL USX-36)
9	AR34242	1	CARBURETOR	(SUB FOR AR28636) (SUB AR45161) (SUB R26499, THIS APPLICATION)
10	-	2	Part 11	(SUB FOR 80-171) ( B17682 NO LONGER AVAILABLE)
11	R10181	1	FAN	-
12	AR723R	2	SCREW	-
13	34H387	1	Spring Pin	3/16" X 3/4", (SUB FOR R10193)
14	JD8867	2	NEEDLE BEARING	-
15	R10194	1	PACKING	-
16	R10182	1	ROUND RETAINER	-
17	AR10101	1	SHAFT	-
18	R10104	1	SPRING	-
19	21H1315	1	Screw	0.164" X 3/4"
20	R10185	1	Spring Locking Pin	-
21	21H1293	1	SCREW	0.164" X 5/16"
22	R10184	1	SWIVEL	-
23	R72654	1	Snap Ring	(SUB FOR R27507)
24	AR10096	1	LEVER	-
25	R10183	1	TORSION SPRING	-
26	AR10095	1	SHAFT	-
26	34H227	1	Spring Pin	3/32" X 1/2"
27	AR10301	1	SHAFT	-
28	21H1299	2	SCREW	0.164" X 3/8", (SUB FOR AR10303)
28	12M7084	2	Lock Washer	4.300 MM
29	21H1293	1	SCREW	0.164" X 5/16"
30	12H315	1	Lock Washer	0.164"
31	R10188	1	CLIP	-
32	-	1	Part 35	( AR10302 - NO LONGER AVAILABLE)
33	R10187	1	SHIM	-
34	R10186	1	SEAL	-
35	-	2	Part 38	BRASS ( 30H34 - NO LONGER AVAILABLE) (SUB FOR R10196)
36	-	1	Part 39	(NO LONGER REQUIRED)
37	R10202	1	SET SCREW	-
38	R10189	1	NOZZLE	(B)
38	-	1	Part 41	(A) (SUB FOR R10201) (R10224 NO LONGER AVAILABLE)
39	-	3	Part 43	( R10197 NO LONGER AVAILABLE)
40	-	1	Part 44	( R10204 - NO LONGER AVAILABLE)
41	R10209	1	WASHER	-
42	R10190	1	NOZZLE	(A)
43	R10170	1	GASKET	-
44	R10207	1	FITTING PLUG	-
45	R10223	1	GASKET	(SUB FOR R10209)
46	AR10114	1	VALVE	(SUB FOR AR10105)
47	21H1158	10	Screw	0.164" X 1/2"
48	12H315	10	Lock Washer	0.164"
49	-	1	Part 53	(A) ( AR10112 - NO LONGER AVAILABLE) (SUB FOR AR10107)
49	-	1	Part 54	(B) (AR39835 NO LONGER AVAILABLE)
50	AR10108	1	DIAPHRAGM	-
51	R10215	1	SPRING	-
52	R10217	1	GASKET	-
53	AR10115	1	COVER	(SUB FOR R10216)
54	R10211	1	SHAFT	-
55	R59433	2	SCREW	(SUB FOR R10213 OR R10219)
56	R10218	1	BRACKET	(SUB FOR R10212)
57	R10221	1	FLOAT	(SUB FOR AR10106)
58	R27346	1	Fitting	(SUB FOR R10195)
59	R10200	1	SEAT	(A)
59	R39879	1	SEAT	(B)
60	R27490	1	O-Ring	(SUB FOR R10199)
61	AR10103	1	NEEDLE	-
62	AR39833	1	NEEDLE	(B)
62	AR39833	1	NEEDLE	(A) (SUB FOR R10203)
62	R10203	1	NEEDLE ROLLER	(A) (SUB AR39833)
63	R10206	1	FITTING PLUG	-
64	R10222	1	GASKET	(SUB FOR R10172)
65	AR10104	1	FUEL FILTER	-
66	R10198	1	PLUG	-
67	R10300	1	PLUG	-
..	AR10111	1	KIT	CARBURETOR REPAIR (USE ON AR28636 MODEL USX-21)
..	AR10109	1	GASKET KIT	CARBURETOR REPAIR (USE ON ON MODEL USX-31 AND MODEL USX-36)
..	AR39836	1	KIT	CARBURETOR REPAIR (USE ON MODEL USX-31 AND MODEL USX-36)
