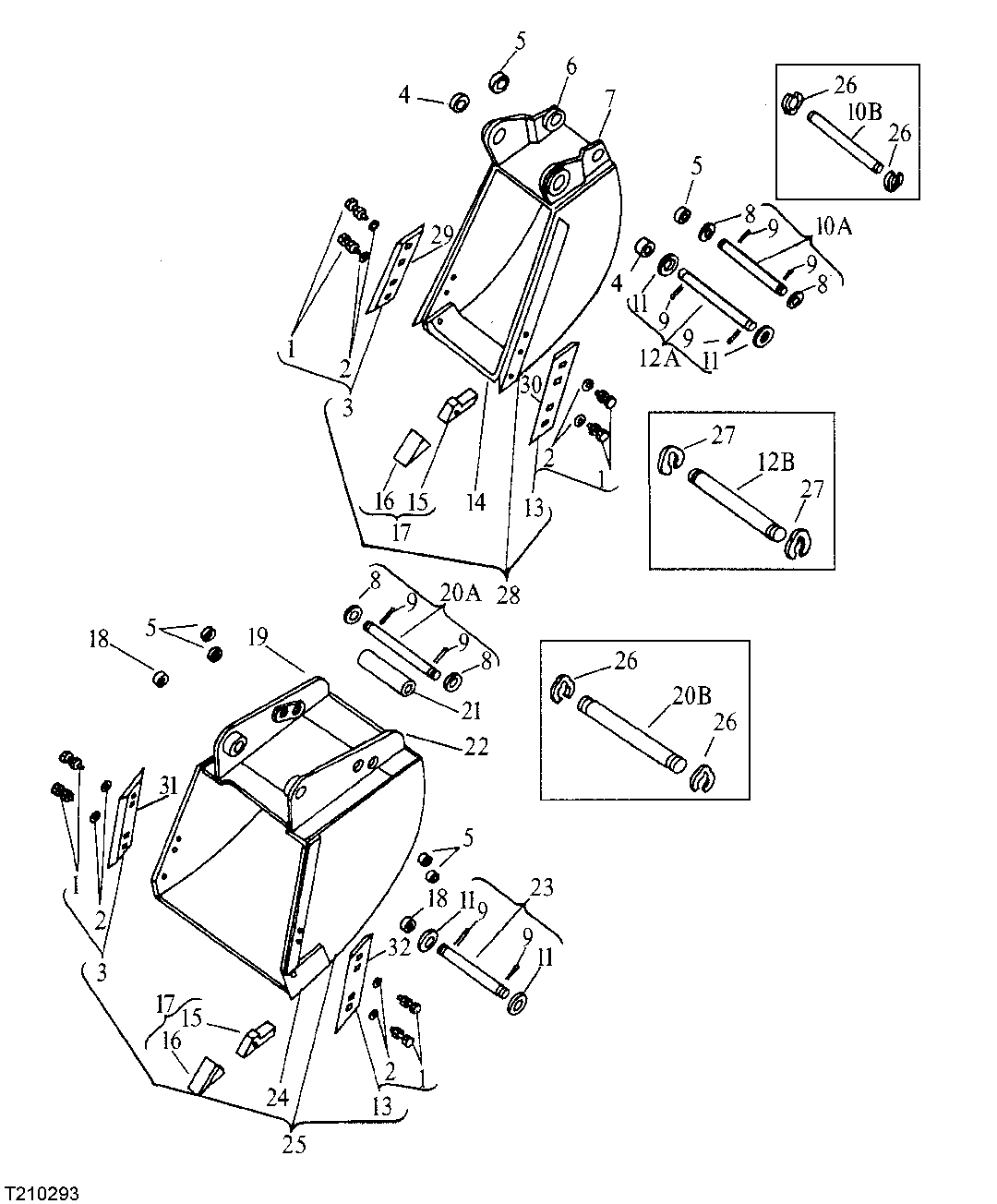

BACKHOE STANDARD BUCKETS (WITH STRAIGHT PIVOT PLATES) [02E24]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H301	6	Lock Washer	1/2"
1	14H826	6	Nut	1/2"
1	03H1439	6	Bolt	1/2" X 1-3/4"
2	24H1162	6	Washer	17/32" X 1-1/4" X 0.060"
3	-	1	Part 5	L.H. ( AU12225 NO LONGER AVAILABLE)
4	U10481	2	BUSHING	-
5	U11121	1	BUSHING	(TWO USED WITH 12", 14", 16" OR FOUR USED WITH 18", 20", 24", 30", 36" BUCKETS)
6	AU13425	1	PLATE	-
7	AU13424	1	PLATE	-
8	U11649	2	WASHER	-
9	11H221	4	COTTER PIN	3/8" X 2-1/2"
11	24H1561	2	Washer	1-3/4" X 2-3/4" X 0.060", (SUB FOR U11650, THIS APPLICATION)
13	-	1	Part 17	R.H. ( AU12224 NO LONGER AVAILABLE)
14	U15995	1	CUTTING EDGE	(FOR 12" BUCKET)
14	U16074	1	CUTTING EDGE	(FOR 14" BUCKET)
14	U16079	1	CUTTING EDGE	(FOR 16" BUCKET)
15	U14436	1	SHANK	-
16	U14437	1	POINT	-
17	-	1	Part 23	(SUB U14436 ALONG WITH U14437) ( AU12534 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
18	U16017	2	BUSHING	-
19	AU13415	1	PLATE	(L.H., WITH BUSHINGS)
21	28H2240	1	BUSHING	1-1/2" X 7"
22	AU13414	1	PLATE	(R.H., WITH BUSHINGS)
23	AU13559	1	PIN FASTENER	(DIPPERSTICK TO BUCKET)
24	U13926	1	CUTTING EDGE	(FOR 18" BUCKET)
24	U16426	1	CUTTING EDGE	(FOR 20" BUCKET)
24	U13917	1	CUTTING EDGE	(FOR 24" BUCKET)
24	U13956	1	CUTTING EDGE	(FOR 30" BUCKET)
24	U13957	1	DURA-MAX TM CUTTING EDGE	(FOR 36" BUCKET)
25	-	1	Part 40	(COMPLETE, WITH BUSHINGS) ( BU10611 NO LONGER AVAILABLE)
25	AT37724	1	BACKHOE BUCKET	(COMPLETE, WITH BUSHINS) (SUB FOR BU10656)
25	AT37723	1	BACKHOE BUCKET	(COMPLETE, WITH BUSHINGS) (SUB FOR BU10658)
25	AT37722	1	BACKHOE BUCKET	(COMPLETE, WITH BUSHINGS) (SUB FOR BU10657)
25	-	1	Part 37	(COMPLETE, WITH BUSHINGS) ( BU10659 NO LONGER AVAILABLE)
26	T59452	4	SNAP RING	-
27	T59445	2	SNAP RING	-
28	-	1	Part 43	AT83702 NO LONGER AVAILABLE, (MARKED AT83704) (SUB FOR BU10614) (COMPLETE, WITH BUSHINGS)
28	-	1	Part 44	(COMPLETE, WITH BUSHINGS) ( BU10616 NO LONGER AVAILABLE)
28	BU10618	1	BACKHOE BUCKET	(COMPLETE, WITH BUSHINGS)
29	U13953	1	CUTTING EDGE	L.H.
30	U13952	1	CUTTING EDGE	R.H.
31	U13953	1	CUTTING EDGE	L.H.
32	U13952	1	CUTTING EDGE	R.H.
10A	AU13550	1	PIN FASTENER	(CONTROL LINK TO BUCKET)
10B	T59454	1	PIN FASTENER	(SUB AU13550) (CONTROL LINK TO BUCKET)
12A	AU13551	1	PIN FASTENER	(DIPPERSTICK TO BUCKET)
12B	T59455	1	PIN FASTENER	(SUB AU13551) (DIPPERSTICK TO BUCKET)
20A	AU11366	1	PIN FASTENER	(CONTROL LINK TO BUCKET)
20B	T59458	1	PIN FASTENER	(SUB AU11366) (CONTROL LINK TO BUCKET)
