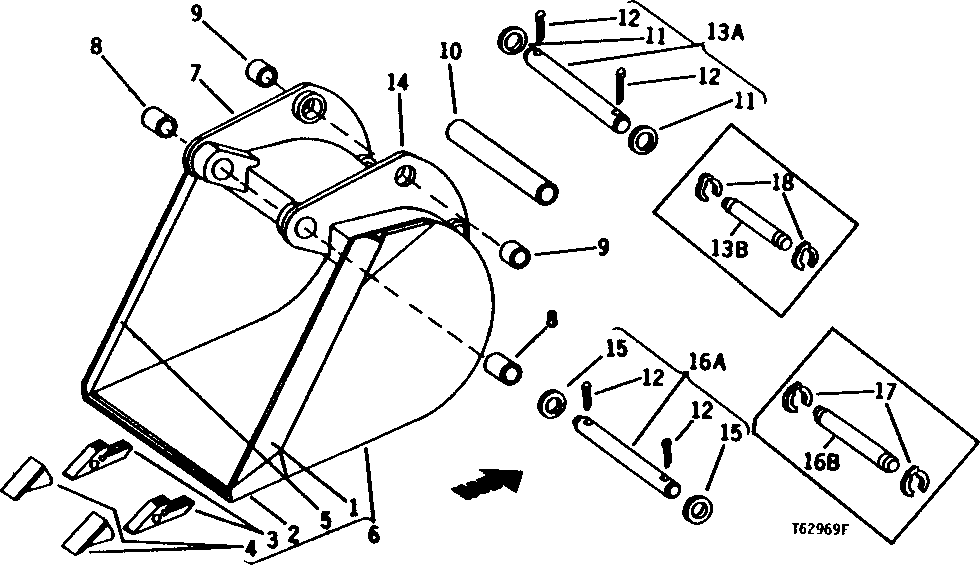

BACKHOE STANDARD BUCKETS (1968- ) (WITH CURVED PIVOT PLATES) [02F04]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U42744	1	CUTTING EDGE	(R.H., FOR 36" BUCKET)
1	U42742	1	CUTTING EDGE	(R.H., FOR 18" AND 30" BUCKETS)
2	U42753	1	CUTTING EDGE	(FRONT, FOR 18" BUCKET)
2	U42752	1	CUTTING EDGE	(FRONT, FOR 24" BUCKET)
2	U42754	1	CUTTING EDGE	(FRONT, FOR 30" BUCKET)
2	U42755	1	CUTTING EDGE	(FRONT, FOR 36" BUCKET)
3	U14436	1	SHANK	(4 USED WITH 18" AND 24" BUCKETS, 5 USED WITH 30" BUCKET, 6 USED WITH 36" BUCKET)
4	U14437	1	POINT	(4 USED WITH 18" AND 24" BUCKETS, 5 USED WITH 30" BUCKET, 6 USED WITH 36" BUCKET)
5	U42743	1	CUTTING EDGE	(L.H., FOR 18", 24" AND 30" BUCKETS)
5	U42745	1	CUTTING EDGE	(R.H., FOR 36" BUCKET)
6	-	1	Part 11	(COMPLETE, 18") ( AT37722, USE IF AVAILABLE) (SUB AT114260) (SUB FOR BU40369)
6	-	1	Part 12	(COMPLETE, 24") ( AT37723, USE IF AVAILABLE) (SUB AT114257) (SUB FOR BU40370)
6	-	1	Part 13	(COMPLETE, 30") ( AT37724, USE IF AVAILABLE) (SUB AT114262) (SUB FOR BU40371)
6	-	1	Part 14	(COMPLETE, 36") ( AT37725, USE IF AVAILABLE) (SUB AT114256) (SUB FOR BU40372, AT34978 AND AT34986)
7	AU41835	1	PLATE	(L.H., INCLUDES BUSHINGS)
8	T105987	2	BUSHING	(SUB FOR U42736)
9	T105988	4	Bushing	(SUB FOR U42739)
10	28H2240	1	BUSHING	1-1/2" X 7"
11	U11649	2	WASHER	-
12	11H221	4	COTTER PIN	3/8" X 2-1/2"
14	AU41834	1	PLATE	(R.H., INCLUDES BUSHINGS)
15	U11650	2	WASHER	-
17	T59445	2	SNAP RING	-
18	T59452	2	SNAP RING	-
13A	AU42334	1	PIN FASTENER	(SUB (2) U11649, (2) 11H221 AND T125931) (COUPLER LINKS TO BUCKET, ASSEMBLY)
13A	T125931	1	PIN FASTENER	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
13B	T59451	1	PIN FASTENER	(SUB (2) U11649, (2) 11H221 AND T125931) (COUPLER LINKS TO BUCKETS)
16A	AU42333	1	PIN FASTENER	(SUB (2) U11650, (2) 11H221 AND T125926) (BUCKET TO DIPPERSTICK, ASSEMBLY)
16A	T125926	1	PIN FASTENER	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
16B	T59450	1	PIN FASTENER	(SUB (2) U11650, (2) 11H221 AND T125926) (BUCKET TO DIPPERSTICK)

BACKHOE STANDARD BUCKETS (1968- ) (WITH CURVED PIVOT PLATES) [02F04]
