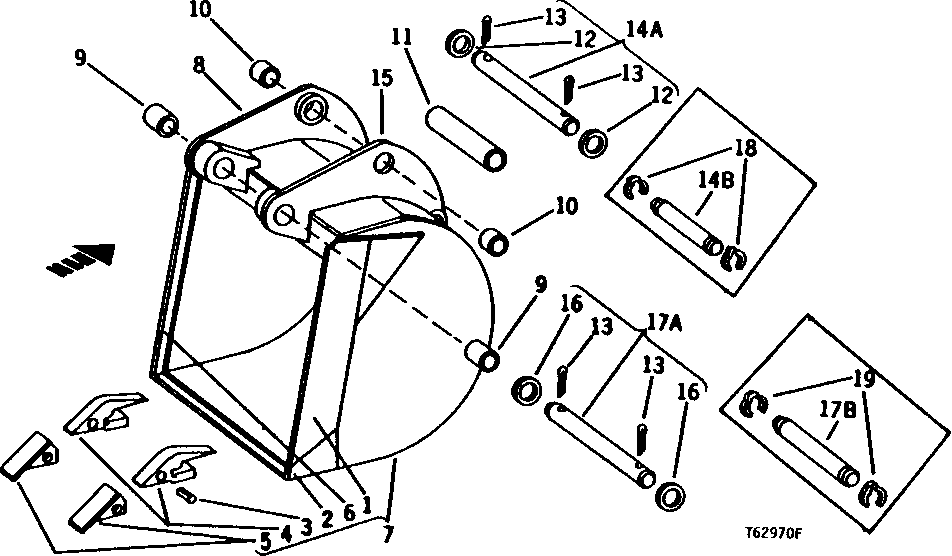

BACKHOE HEAVY-DUTY BUCKETS (1968- ) (WITH CURVED PIVOT PLATES) [02F03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U42740	1	CUTTING EDGE	(R.H.)
2	U42753	1	CUTTING EDGE	(FRONT, FOR 18" BUCKET)
2	U42752	1	CUTTING EDGE	(FRONT, FOR 24" BUCKET)
2	U42754	1	CUTTING EDGE	(FRONT, FOR 30" BUCKET)
3	U13927	1	PIN FASTENER	(3 USED WITH 18" BUCKET, 4 USED WITH 24" BUCKET, 5 USED WITH 30" BUCKET)
4	U43792	1	Bucket Tooth Adapter	(SUB FOR (AR) U42750) (3 USED WITH 18" BUCKET, 4 USED WITH 24" BUCKET, 5 USED WITH 30" BUCKET)
5	U42751	1	POINT	(3 USED WITH 18" BUCKET, 4 USED WITH 24" BUCKET, 5 USED WITH 30" BUCKET)
6	U42741	1	CUTTING EDGE	(L.H.)
7	AT37726	1	BACKHOE BUCKET	(COMPLETE, 18") (SUB FOR BU40373)
7	AT37727	1	BACKHOE BUCKET	(COMPLETE, 24") (SUB FOR BU40374 AND AT34980)
7	AT37728	1	BACKHOE BUCKET	(COMPLETE, 30") (SUB FOR BU40375)
8	AU41835	1	PLATE	(L.H.) (INCLUDES BUSHINGS)
9	T105987	2	BUSHING	(SUB FOR U42736)
10	T105988	4	Bushing	(SUB FOR U42739)
11	28H2240	1	BUSHING	1-1/2" X 7"
12	U11649	2	WASHER	-
13	11H221	4	COTTER PIN	3/8" X 2-1/2"
15	AU41834	1	PLATE	(R.H., INCLUDES BUSHINGS
16	U11650	2	WASHER	-
18	T59452	2	SNAP RING	-
19	T59445	2	SNAP RING	-
14A	AU42334	1	PIN FASTENER	(SUB (2) U11649, (2) 11H221 AND T125931)
14A	T125931	1	PIN FASTENER	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
14B	T59451	1	PIN FASTENER	(SUB (2) U11649, (2) 11H221 AND T125931)
17A	AU42333	1	PIN FASTENER	(SUB (2) U11650, (2) 11H221 AND T125926) (BUCKET TO DIPPESTICK)
17A	T125926	1	PIN FASTENER	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
17B	T59450	1	PIN FASTENER	(SUB (2) U11650, (2) 11H221 AND T125926) (BUCKET TO DIPPESTICK)

BACKHOE HEAVY-DUTY BUCKETS (1968- ) (WITH CURVED PIVOT PLATES) [02F03]
