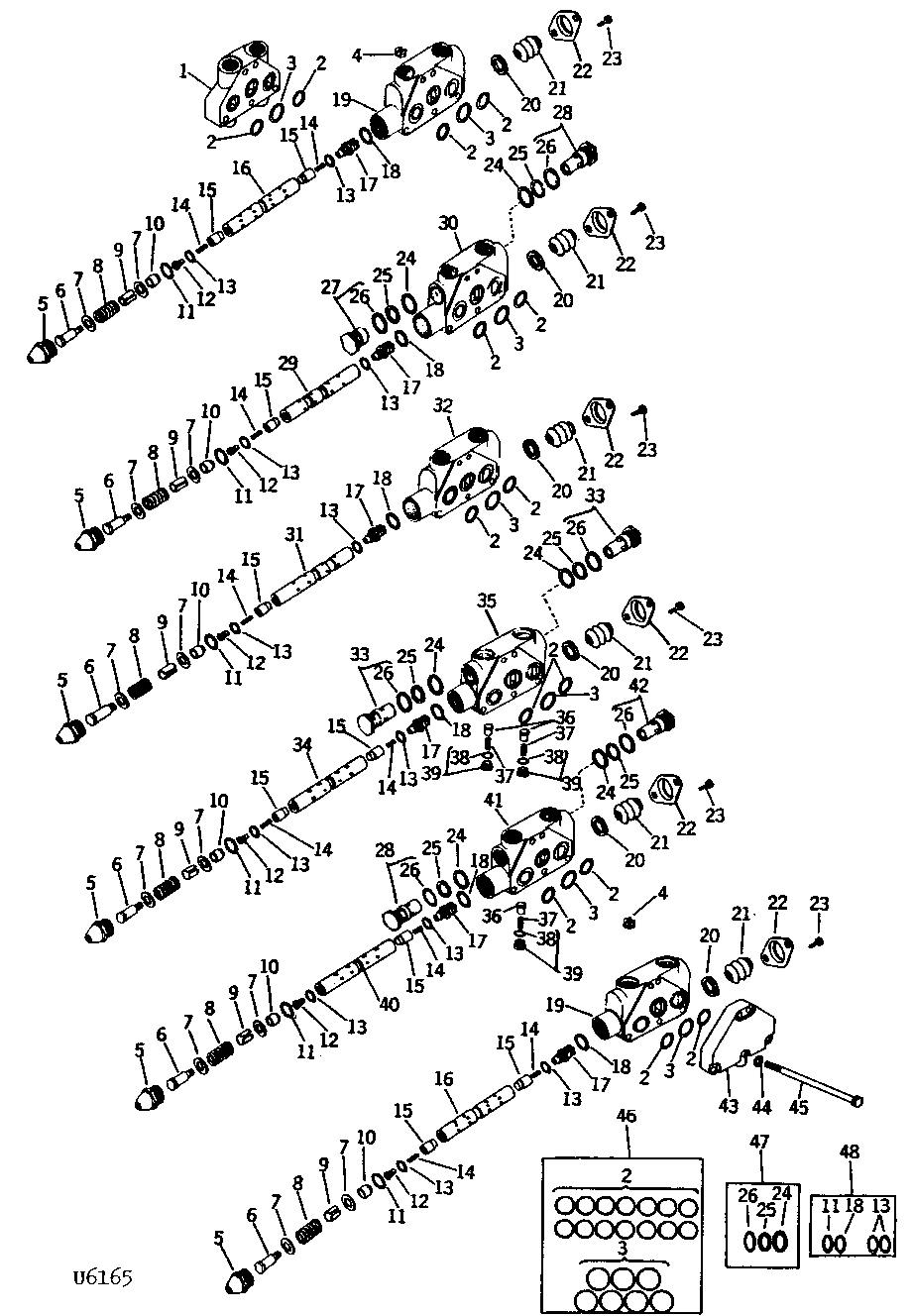

BACKHOE CONTROL VALVE 95 BACKHOE (003701- ), 97 BACKHOE (000701- ) [02F16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U41161	1	PORT PLATE	(L.H., CLOSED CENTER)
2	-	14	Part 2	(SUB FOR U11326, THIS APPLICATION) ( T68666 NO LONGER AVAILABLE)
3	-	7	Part 3	(SUB FOR U15415, THIS APPLICATION) ( T68667 NO LONGER AVAILABLE)
4	U11426	2	ORIFICE	-
5	AU41892	6	CAP	-
6	U11428	6	BOLT	-
7	N31767	12	WASHER	-
8	U11336	6	SPRING	-
9	U41167	6	BUSHING	-
10	U41169	6	BUSHING	-
11	T13119	6	O-Ring	(SUB FOR T57245)
12	U41162	6	PLUG	-
13	P46051	12	O-Ring	-
14	U41170	9	SPRING	-
15	U41168	9	CHECK VALVE	-
16	-	1	Part 16	(SUB AT62848)
17	U42833	6	CLEVIS	-
18	T57246	6	O-RING	(SUB FOR B2762R, THIS APPLICATION)
19	-	2	Part 19	(SUB AT62848)
20	U42835	6	WASHER	-
21	U42834	6	BOOT	-
22	U42827	6	RETAINER	-
23	21H1206	12	SCREW	1/4" X 5/16"
24	P47908	6	O-Ring	(SUB FOR 32240, THIS APPLICATION)
25	U40727	6	BACK-UP RING	-
26	T57247	6	O-Ring	-
27	U11427	1	PLUG	-
28	AU40529	2	PRESSURE RELIEF VALVE	(2375 PSI)
29	-	1	Part 29	(SUB AU41885)
30	-	1	Part 30	(SUB AU41885)
31	-	1	Part 31	(SUB AU41883)
32	-	1	Part 32	(SUB AU41883)
33	AU40815	2	RELIEF VALVE	(1625 PSI)
34	-	1	Part 34	(SUB AT34643)
35	-	1	Part 35	(SUB AT34643)
36	U41172	3	PLUNGER	-
37	N85304	3	SPRING	-
38	R394R	3	O-Ring	-
39	AN85149	3	FITTING	-
40	-	1	Part 40	(SUB AT35260)
41	-	1	Part 41	(SUB AT35260)
42	AU40527	1	PRESSURE RELIEF VALVE	(3000 PSI)
43	U41160	1	END PLATE	-
44	12H303	5	Lock Washer	5/16"
45	U41773	5	DOWEL PIN	-
46	AU40972	1	O-RING KIT	REPAIR SECTION ASSEMBLY
47	AU12404	1	KIT	REPAIR PLUG OR RELIEF VALVE, (SUB FOR AU40973)
48	AU42191	1	KIT	REPAIR INDIVIDUAL VALVE
..	AT62848	2	SPOOL VALVE	(STABILIZER, COMPLETE) (SUB FOR AU41882)
..	AU41883	1	SPOOL VALVE	(BUCKET COMPLETE)
..	AT35260	1	SPOOL VALVE	(BOOM, COMPLETE) (SUB FOR AU41884)
..	AU41885	1	SPOOL VALVE	(CROWD, COMPLETE)
..	AT34643	1	SPOOL VALVE	(SWING, COMPLETE) (SUB FOR AU41886)
..	-	1	Part 54	(CONTROL, SIX-SECTION, CLOSED CENTER, COMPLETE) ( AU41874 NO LONGER AVAILABLE) (SUB AT62851 IF AVAILABLE)
..	AT59146	1	CONTROL VALVE	(CONTROL, REMANUFACTURED) (6 SPOOL)

BACKHOE CONTROL VALVE 95 BACKHOE (003701- ), 97 BACKHOE (000701- ) [02F16]
