Открытый узел

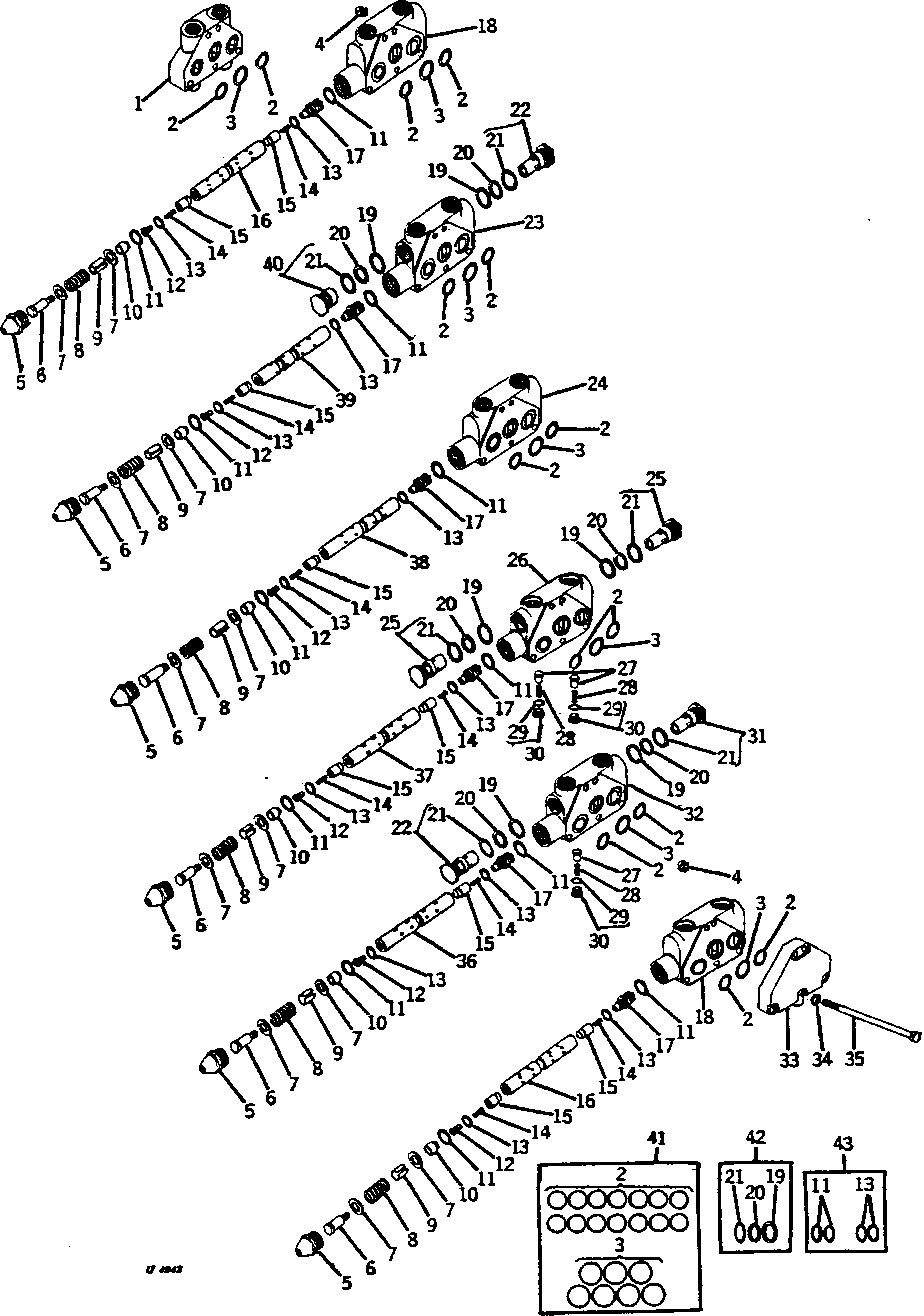

BACKHOE CONTROL VALVE 95 BACKHOE ( -003700), 97 BACKHOE ( -000700) [02F14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U41161	1	PORT PLATE	(L.H., CLOSED CENTER)
2	-	14	Part 2	(SUB FOR U11326, THIS APPLICATION) ( T68666 NO LONGER AVAILABLE)
3	-	7	Part 3	(SUB FOR U15415, THIS APPLICATION) ( T68667 NO LONGER AVAILABLE)
4	U11426	2	ORIFICE	-
5	U11335	6	CAP	-
6	U11428	6	BOLT	-
7	N31767	12	WASHER	-
8	U11336	6	SPRING	-
9	U41167	6	BUSHING	-
10	U41169	6	BUSHING	-
11	T13119	12	O-Ring	(SUB FOR T57245) (SUB FOR T13119, THIS APPLICATION)
12	U41162	6	PLUG	-
13	P46051	12	O-Ring	-
14	U41170	9	SPRING	-
15	U41168	9	CHECK VALVE	-
16	-	2	Part 16	(SUB AT62848)
17	U41163	6	CLEVIS	-
18	-	2	Part 18	(SUB AT62848)
19	P47908	6	O-Ring	-
20	U40727	6	BACK-UP RING	-
21	32240	6	O-Ring	-
22	AU40529	2	PRESSURE RELIEF VALVE	(RELIEF, 2375 PSI)
23	-	1	Part 23	(SUB AU41885)
24	-	1	Part 24	(SUB AU41883)
25	AU40815	2	RELIEF VALVE	(RELIEF, 1625 PSI)
26	-	1	Part 26	(SUB AT34643)
27	U41172	3	PLUNGER	-
28	N85304	3	SPRING	-
29	R394R	3	O-Ring	-
30	AN85149	3	FITTING	-
31	AU40527	1	PRESSURE RELIEF VALVE	(RELIEF, 3000 PSI)
32	-	1	Part 32	(SUB AT35260)
33	U41160	1	END PLATE	(R.H., CLOSED CENTER)
34	12H303	5	Lock Washer	5/16"
35	U41173	5	CAP SCREW	-
36	-	1	Part 36	(SUB AT35260)
37	-	1	Part 37	(SUB AT34643)
38	-	1	Part 38	(SUB AU41883)
39	-	1	Part 39	(SUB AU41885)
40	U11427	1	PLUG	-
41	AU40972	1	O-RING KIT	REPAIR SECTION ASSEMBLY
42	AU12404	1	KIT	REPAIR FOR PORT OR RELIEF VALVES, (SUB FOR AU40973)
43	AU40974	1	O-RING KIT	REPAIR FOR STABILIZER, BUCKET, CROWD, SWING, AND BOOM VALVES
..	AU41883	1	SPOOL VALVE	(4-WAY, PLAIN, BUCKET) (SUB FOR AU40747)
..	AU41885	1	SPOOL VALVE	(4-WAY, BORED, CROWD) (SUB FOR AU40748)
..	AT62848	2	SPOOL VALVE	(4-WAY, PLAIN, STABILIZER) (SUB FOR AU40749 AND AU41882)
..	AT34643	1	SPOOL VALVE	(4-WAY, SWING) (SUB FOR AU40750 AND AU41886)
..	AU40755	1	VALVE	(4-WAY, BOOM) (SUB AT35260)
..	AU40677	1	VALVE	(SIX-SECTION, CLOSED-CENTER) (SUB AT62851 CONTROL VALVE IF AVAILABLE, FOUR U42830 CONNECTOR LINKS, AND TWO U42831 CONNECTOR LINKS)

BACKHOE CONTROL VALVE 95 BACKHOE ( -003700), 97 BACKHOE ( -000700) [02F14]

Нет текстового описания
