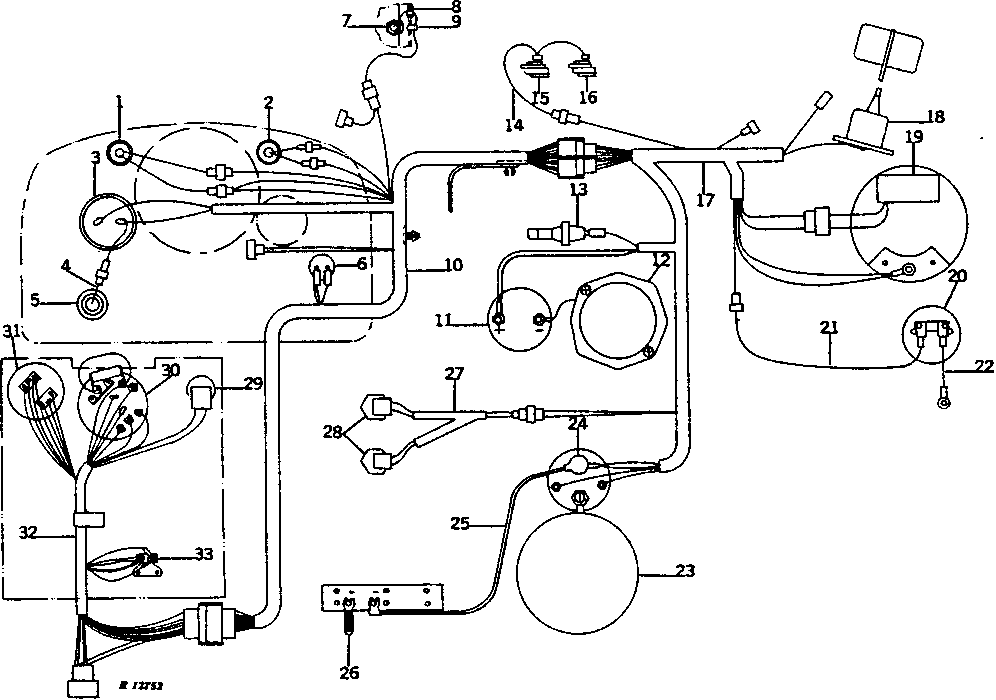

ALTERNATOR, IGNITION AND STARTER WIRING (GASOLINE) [02C09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR27944	1	LAMP	-
2	AT14699	1	INDICATOR LAMP	-
3	R34262	1	GAUGE	-
4	-	1	Part 4	12" (457 MM) (MAKE FROM AR84006 WIRE REPAIR KIT)
5	AR48643	1	ELECTRICAL LIGHTER	(SUB FOR AR34556)
6	AR20235	1	Switch	-
7	AR33479	1	LAMP	-
8	A3411R	1	Grommet	(DASH LAMP LEAD TO DASH REINFORCEMENT)
9	F2084R	1	CLIP	-
10	12H291	1	Lock Washer	5/16", (INSTRUMENT HARNESS CLAMP TO CONTROL SUPPORT SCREW)
10	24H1302	1	Washer	13/32" X 11/16" X 0.035", (INSTRUMENT HARNESS TO L.H. REAR DASH TO CONTROL SUPPORT SCREW)
10	B1828R	1	Bushing	(INSTRUMENT HARNESS TO L.H. REAR DASH TO CONTROL SUPPORT SCREW)
10	T13814	1	Clamp	(INSTRUMENT HARNESS TO L.H. REAR DASH TO CONTROL SUPPORT SCREW)
10	14H785	1	Nut	5/16", (INSTRUMENT HARNESS CLAMP TO CONTROL SUPPORT SCREW)
10	21H1029	1	Screw	5/16" X 3/4", (INSTRUMENT HARNESS CLAMP TO CONTROL SUPPORT)
10	R27539	1	CLAMP	(INSTRUMENT HARNESS TO CONTROL SUPPORT)
10	AR47686	1	WIRING HARNESS	(SUB FOR R39641)
11	AR46064	1	ELECTRICAL COIL	(SUB FOR AM791T) (6-VOLT)
12	AR11162	1	IGNITION DISTRIBUTOR	(DELCO-REMY NO. 1112624)
13	AT85174	1	Switch	(SUB FOR AR27977)
14	-	1	Part 21	( R39650 NO LONGER AVAILABLE)
15	R11276	1	HORN	(LOW NOTE, 12-VOLT)
16	R64700	1	High Note Horn	(SUB FOR R11277) (HIGH NOTE, 12-VOLT)
17	R32320	1	Clip	-
17	R32320	2	Clip	-
17	AR40454	1	WIRING HARNESS	-
17	R27457	5	TIE BAND	-
18	AR27730	1	SENDER	-
19	AR40420	1	ALTERNATOR	(12-VOLT) (MOTOROLA)
20	AR39848	1	HOUR METER	-
21	-	1	Part 31	457 MM (18") (MAKE FROM AR84006 WIRE REPAIR KIT)
22	-	1	Part 32	152 MM (6") (MAKE FROM AR84006 WIRE REPAIR KIT)
23	AR11160	1	STARTER MOTOR	(12-VOLT) (DELCO-REMY)
24	R30964	1	Cover	-
25	12H308	1	LOCK WASHER	1/2"
25	19H2788	1	CAP SCREW	7/16" X 2-1/4"
25	24H1302	1	Washer	13/32" X 11/16" X 0.035"
25	B1828R	2	Bushing	(BATTERY CABLE CLAMP TO TRANSMISSION CASE COVER SCREW)
25	H75541	1	Clamp	(SUB FOR R34557)
25	AR40408	1	BATTERY CABLE	-
26	AR26622	1	GROUND CABLE	-
26	19H1648	1	Cap Screw	3/8" X 3/4"
26	12H304	1	Lock Washer	3/8"
27	R34869	1	WIRING HARNESS	(POWER SHIFT)
27	R33823	1	WIRING HARNESS	(COLLAR SHIFT)
27	R44302	2	Tie Band	(SUB FOR R1646R)
28	R36265	1	SWITCH	(1 USED COLLAR SHIFT) (2 USED POWER SHIFT)
29	R39554	1	Switch	-
30	R39551	1	SWITCH	-
31	AR39505	1	ROTARY SWITCH	-
32	AR47685	1	WIRING HARNESS	(SUB FOR R39555)
32	B2571R	1	CLIP	-
33	AR28403	1	CIRCUIT BREAKER	-
