Открытый узел

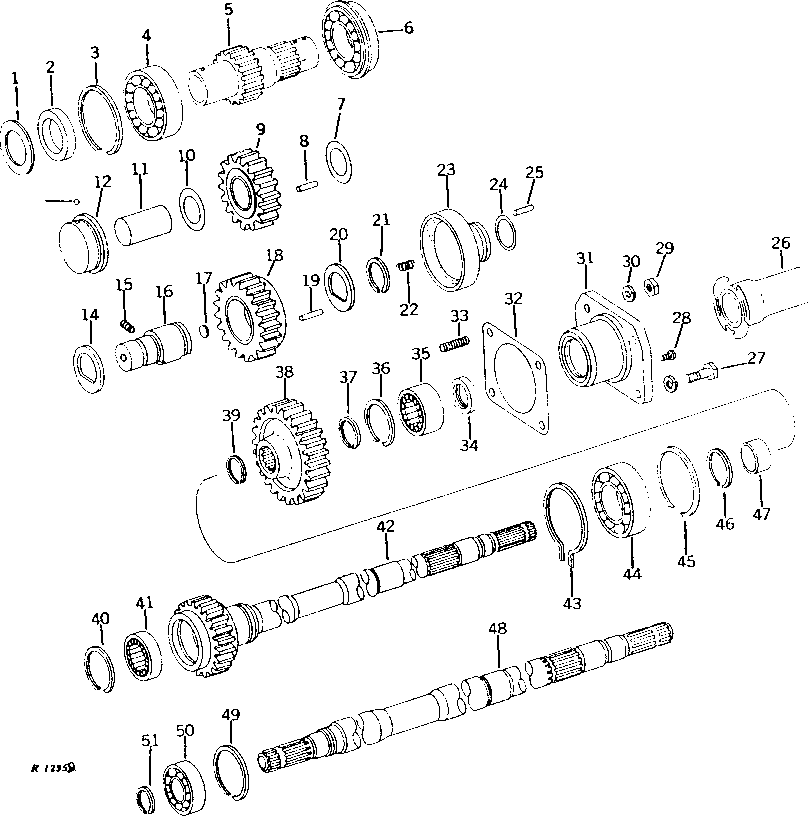

540 RPM AND 1000 RPM MID PTO (POWER SHIFT) [01G16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R34204	1	THRUST WASHER	-
2	R33116	1	SPACER	-
3	F1373R	1	Snap Ring	-
4	JD9390	1	BALL BEARING	(SUB FOR JD9279)
5	-	1	Part 5	(PTO DRIVE AND GEAR) ( R33333 NO LONGER AVAILABLE)
6	JD9280	1	Ball Bearing	-
7	R33330	1	Thrust Washer	(A)
8	R26022	21	NEEDLE ROLLER	-
8	R26022	24	NEEDLE ROLLER	(A)
9	R33334	1	GEAR	(A) (SUB AR42221)
9	R41954	1	GEAR	(A)
10	R33330	1	Thrust Washer	-
10	R41956	1	WASHER	(A)
11	R33327	1	SHAFT	(A) (SUB AR42221)
12	AR42223	1	BEARING HOUSING W/O BEARING	(A)
12	R33329	1	BEARING HOUSING W/O BEARING	(A) (SUB AR42221)
13	H871R	1	Ball	-
14	R42720	1	THRUST WASHER	(SUB FOR R33331)
15	R34582	1	SET SCREW	-
16	R41744	1	SHAFT	-
17	30H9	1	Plug	3/4"
18	R33335	1	GEAR	-
19	R26006	29	NEEDLE ROLLER	-
20	R42720	1	THRUST WASHER	(SUB FOR R33331)
21	R34222	1	SNAP RING	-
22	A1651R	1	SPRING	-
23	AR39773	1	BRAKE SHOE	(WITH FACING)
24	T11220	1	O-Ring	-
25	R40336	1	DOWEL PIN	-
26	AR26701	1	GUARD	-
27	19H2993	2	Cap Screw	1/2" X 1-1/2"
27	12H301	2	Lock Washer	1/2"
28	R27329	2	Screw	-
29	14H1040	2	Nut	1/2", (SUB FOR 14H809)
30	12H301	2	Lock Washer	1/2"
31	AR33998	1	BEARING HOUSING W/O BEARING	(SUB FOR R33212) (WITH SCREWS)
32	R33236	1	GASKET	-
33	R32101	2	STUD	1/2" X 1-3/4"
34	R33338	1	SEAL	-
35	JD8725	1	CYLINDRICAL ROLLER BEARING	-
36	F2367R	1	SNAP RING	-
37	R27000	1	SNAP RING	-
38	R33336	1	GEAR	-
39	R33325	1	Snap Ring	-
40	F2367R	1	SNAP RING	-
41	JD7537	1	ROLLER BEARING	-
42	AR32165	1	SHAFT	-
43	R33322	1	SNAP RING	-
44	JD8537	1	Ball Bearing	-
45	R33321	1	SNAP RING	-
46	R36295	1	Snap Ring	-
47	R34328	1	Bushing	-
48	R34165	1	SHAFT	(TRACTORS EQUIPPED WITH 1000 RPM PTO ONLY)
49	B190R	1	SNAP RING	(TRACTORS EQUIPPED WITH 1000 RPM PTO ONLY)
50	JD9345	1	Ball Bearing	(TRACTORS EQUIPPED WITH 1000 RPM PTO ONLY) (SUB FOR JD7688)
51	A364R	1	Snap Ring	(TRACTORS EQUIPPED WITH 1000 RPM PTO ONLY)

540 RPM AND 1000 RPM MID PTO (POWER SHIFT) [01G16]

Нет текстового описания
