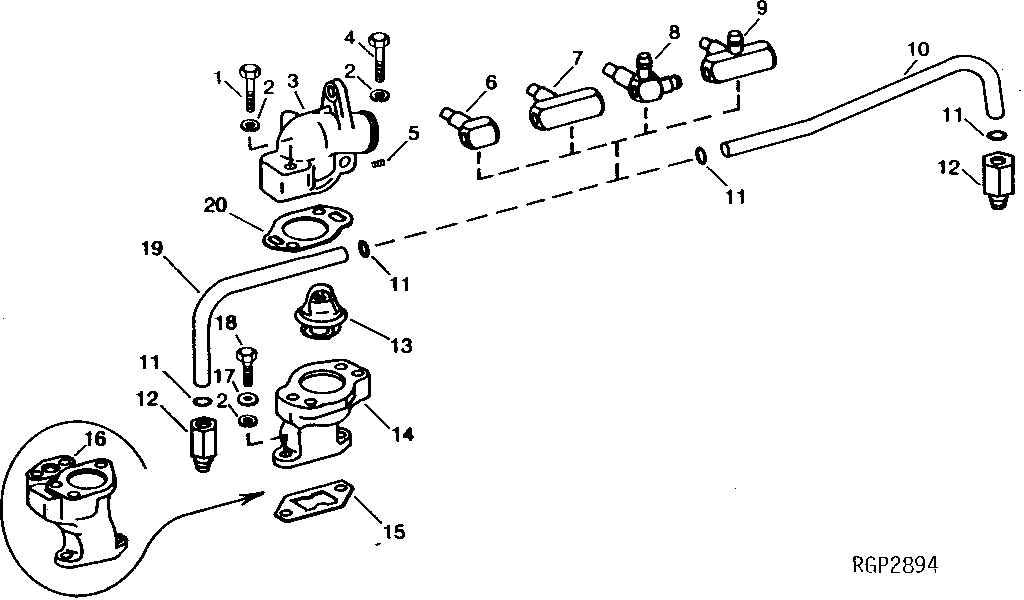

THERMOSTAT HOUSING, THERMOSTAT AND WATER BYPASS PIPE [01D05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2633	1	Cap Screw	(B) 3/8" X 1-1/2"
1	19H3065	1	Cap Screw	3/8" X 2", (USE WITH AR45483)
1	19H1765	1	Cap Screw	(A) (C) 3/8" X 1-3/4", (FUEL)
2	12H304	4	Lock Washer	3/8"
3	-	1	Part 5	( AR45483 NO LONGER AVAILABLE) (MARKED R34988, R34989, R44233 OR R44234) (SUB FOR AR40898)
4	19H3239	1	Cap Screw	(A) (C) 3/8" X 1-1/4"
4	19H2633	1	Cap Screw	(B) 3/8" X 1-1/2"
4	19H1765	1	Cap Screw	(A) (C) 3/8" X 1-3/4", (USE WITH AR45483)
5	15H559	1	Pipe Plug	1/4"
6	-	1	Part 10	(A) (C) 90 DEGREE ( AR40902 NO LONGER AVAILABLE) (JD500A*)
7	AR45484	1	TEE FITTING	(A) (C) (SUB FOR AR34874 ON JD500, JD500A&), (JD500B, JD500C AND JD510)
8	-	1	Part 12	-
9	-	1	Part 13	( AR45485 - NO LONGER AVAILABLE)
10	-	1	Part 14	(A) (B) (SUB FOR R39504 ON JD500, JD500A*, JD500A&, AND JD500B) ( R41283 - NO LONGER AVAILABLE)
10	R41284	1	LINE	(C) (SUB FOR R39504 ON JD500, JD500A* JD500A&, JD500B, JD500C, AND JD510)
11	T13119	4	O-Ring	-
12	R41285	1	Adapter Fitting	-
13	R36847	1	THERMOSTAT	RANGE 71°-83° C. (160°-182° F.) (JD500A*, JD500A&, JD500B, JD500C AND JD510)
13	R36846	1	THERMOSTAT	RANGE 82°-94° C. (180°-202° F.) (JD500A, AND JD500)
14	AR44840	1	HOUSING	(A) (C) (MARKED R41853 OR R42644)
15	R42693	1	GASKET	-
16	R26469	1	HOUSING	-
17	24M7096	2	Washer	(A) (C) 0.413" X 0.709" X 0.063"
18	19H2676	2	Cap Screw	(B) 3/8" X 1"
18	19H3239	2	Cap Screw	(A) (C) 3/8" X 1-1/4"
19	R44237	1	LINE	(JD500)
20	R42694	1	GASKET	-

THERMOSTAT HOUSING, THERMOSTAT AND WATER BYPASS PIPE [01D05]
