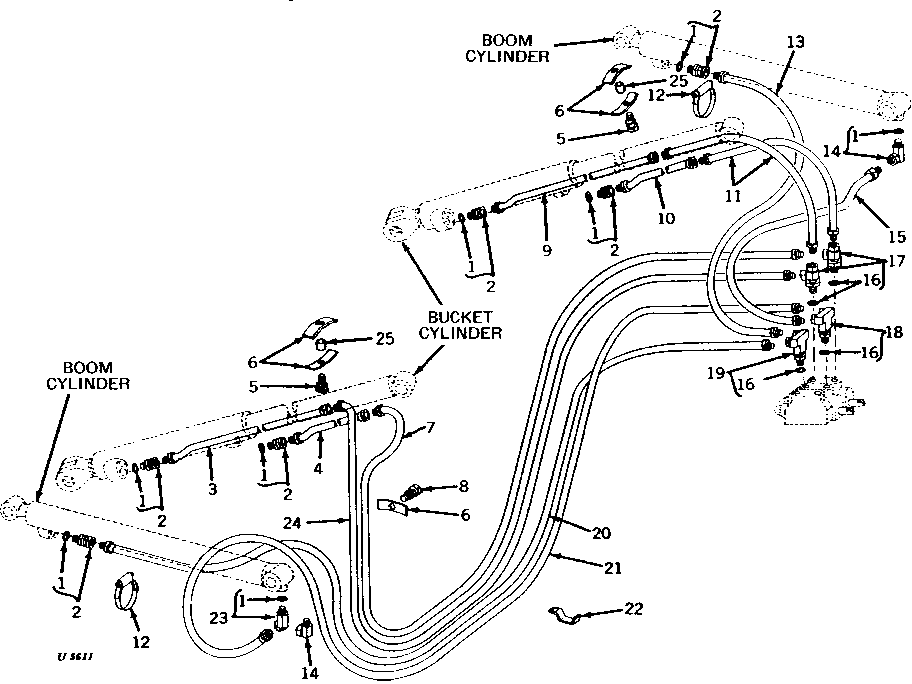

OIL LINES (LOADER BOOM AND BUCKET CIRCUIT) [02E20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U10778	8	O-Ring	-
2	AU11569	6	ADAPTER FITTING	STRAIGHT
3	-	1	Part 3	BUCKET CYLINDER, L.H., LONG ( AU12108 NO LONGER AVAILABLE)
4	-	1	Part 4	BUCKET CYLINDER, L.H., SHORT ( AU12109 NO LONGER AVAILABLE)
5	19H3239	2	Cap Screw	3/8" X 1-1/4"
5	12H304	2	Lock Washer	3/8"
6	U10516	5	Hose Clamp	-
7	AU11578	1	HYDRAULIC HOSE	3/8" X 2 540 MM (100") X 3/8", BUCKET CYLINDER, L.H., REAR
8	19H2676	1	Cap Screw	3/8" X 1"
8	12H304	1	Lock Washer	3/8"
9	AU12052	1	TUBE	BUCKET CYLINDER, R.H., LONG
10	-	1	Part 12	BUCKET CYLINDER, R.H., SHORT ( AU12051 NO LONGER AVAILABLE)
11	AW15486	2	HYDRAULIC HOSE	BUCKET CYLINDER, R.H. (SUB FOR AU11577)
12	AR21841	2	Clamp	-
13	AU11568	1	HYDRAULIC HOSE - FABRICATE	3/8" X 1 321 MM (52") X 3/8" BOOM DROP, R.H.
14	AN31756	1	ELBOW FITTING	90°
15	AW15486	1	HYDRAULIC HOSE	3/8" X 711 MM (28") X 3/8" BOOM RAISE, R.H. (SUB FOR AU11577)
16	R26906	4	O-Ring	-
17	AU11583	2	FITTING	-
18	AU11582	1	ADAPTER FITTING	LONG
19	AU11580	1	ADAPTER FITTING	SHORT
20	AU11578	1	HYDRAULIC HOSE	3/8" X 2 540 MM (100") X 3/8", BOOM DROP, L.H.
21	AU11576	1	HYDRAULIC HOSE - FABRICATE	3/8" X 1 829 MM (72") X 3/8", BOOM RAISE, L.H.
22	-	2	Part 24	( U13692 NO LONGER AVAILABLE)
23	AU11581	1	ELBOW FITTING	45°
24	AU11578	1	HYDRAULIC HOSE	3/8" X 2 540 MM (100") X 3/8", BUCKET CYLINDER, L.H., FRONT,
25	28H1884	1	Spacer	3/8" X 1/2"
