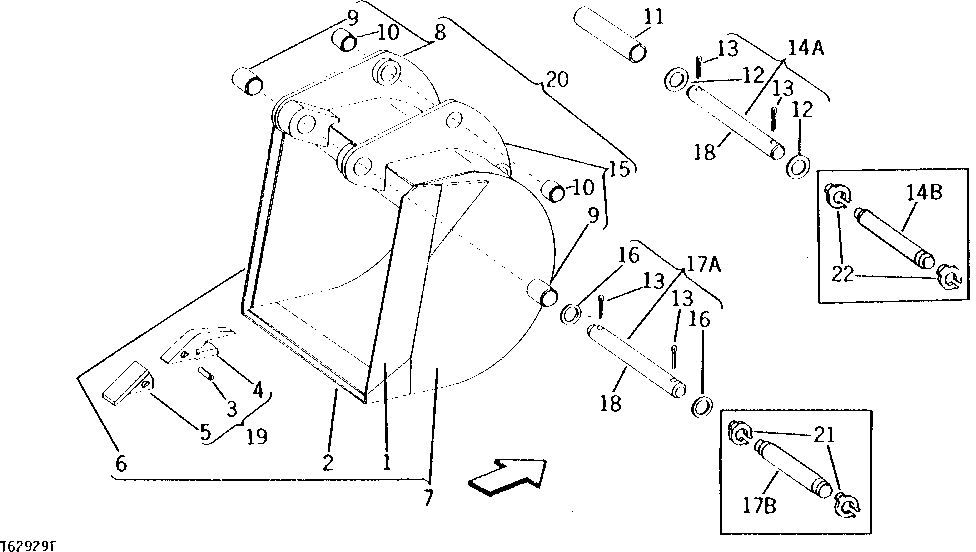

HEAVY-DUTY BUCKETS (WITH CURVED PIVOT PLATES) (1968- ) [02F24]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T38876	1	CUTTING EDGE	SIDE, L.H., 15.9 MM X 127 MM X 876.3 MM (5/8" X 5" X 34-1/2") (USE WITH AT37726, AT37727 AND AT37728)
1	U42741	1	CUTTING EDGE	SIDE, L.H., 15.9 MM X 101.6 MM X 698.5 MM (5/8" X 4" X 27-1/2") (USE WITH BU40373, AT34979, AT34987, BU40374, AT34980, AT34988, BU40375, AT34981 AND AT34989)
2	T38856	1	CUTTING EDGE	FRONT, 22.22 MM X 152.4 MM X 425.45 MM (7/8" X 6" X 16-3/4") (FOR 457.2 MM (18") BUCKET) (USE WITH AT37726 AND AT76972)
2	U42752	1	CUTTING EDGE	FRONT, 15.9 MM X 152.4 MM X 577.85 MM (5/8" X 6" X 22-3/4") (FOR 609.6 MM (24") BUCKET, (USE WITH BU40374, AT34980 AND AT34988)
2	T38862	1	CUTTING EDGE	FRONT, 22.22 MM X 152.4 MM X 577.85 MM (7/8" X 6" X 22-3/4") (FOR 609.6 MM (24") BUCKET) (USE WITH AT37727 AND AT76971)
2	U42754	1	CUTTING EDGE	FRONT, 15.9 MM X 152.4 MM X 730.25 MM (5/8" X 6" X 28-3/4") (FOR 762 MM (30") BUCKET) (USE WITH BU40375, AT34981 AND AT34989)
2	T38865	1	CUTTING EDGE	FRONT, 22.22 MM X 152.4 MM X 730.25 MM (7/8" X 6" X 28-3/4") (FOR 762 MM (30") BUCKET) (USE WITH AT37728 AND AT76969)
2	U42753	1	CUTTING EDGE	FRONT, 15.9 MM X 152.4 MM X 425.45 MM (5/8" X 6" X 16-3/4") (FOR 457.2 MM (18") BUCKET) (USE WITH BU40373, AT34979 AND AT34987)
3	T40910	1	PIN	(A) (SUB FOR U13927)
4	U43792	1	Bucket Tooth Adapter	(A) (SUB FOR (AR) U42750) 23.8 MM (15/16")
4	T417X230	1	BUCKET TOOTH ADAPTER	(A) (SUB FOR T36126) 17.46 MM (11/16")
5	U42751	1	POINT	(A)
6	U42740	1	CUTTING EDGE	SIDE, R.H., 15.9 MM X 101.6 MM X 698.5 MM (5/8" X 4" X 27-1/2") (USE WITH BU40373, AT34979, AT34987, BU40374, AT34980, AT34988, BU40375, AT34981 AND AT34989)
6	T38875	1	CUTTING EDGE	SIDE, R.H., 15.9 MM X 127 MM X 876.3 MM (5/8" X 5" X 34-1/2") (USE WITH AT37726, AT37727, AT37728, AT76972, AT76971 AND AT76969)
7	AT37726	1	BACKHOE BUCKET	COMPLETE, 457.2 MM (18") (SUB FOR BU40373, AT34979 AND AT34987) (SUB AT76972)
7	AT37727	1	BACKHOE BUCKET	COMPLETE, 609.6 MM (24") (SUB FOR BU40374, AT34980 AND AT34988) (SUB AT76971)
7	AT37728	1	BACKHOE BUCKET	COMPLETE, 762.0 MM (30") (SUB FOR BU40375, AT34981 AND AT34989) (SUB AT76969)
8	AU41835	1	PLATE	L.H., WITH BUSHINGS, (SUB AT36086)
9	T105987	2	BUSHING	(SUB FOR U42736)
10	T105988	4	Bushing	(SUB FOR U42739)
11	28H2240	1	BUSHING	BUCKET LINKAGE, 1-1/2" X 7"
12	U11649	2	WASHER	-
13	11H221	4	COTTER PIN	3/8" X 2-1/2"
15	AU41834	1	PLATE	R.H. WITH BUSHINGS, (SUB AT36086)
16	U11650	2	WASHER	-
18	-	1	Part 32	BUCKET (PKG. OF TWO PINS)
19	-	1	Part 34	(A) 23.8 MM (15/16") (USE WITH 22.22 MM (7/8") CUTTING EDGE) ( AU41838 - NO LONGER AVAILABLE) (SUB T40910, U43792 AND U42751)
19	AT34983	1	TOOTH	(A) 17.46 MM (11/16") (USE WITH 15.9 MM (5/8") CUTTING EDGE)
20	AT36086	1	PLATE	-
21	T59445	2	SNAP RING	-
22	T59452	2	SNAP RING	-
14A	T125931	1	PIN FASTENER	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
14A	AU42334	1	PIN FASTENER	COUPLER LINKS TO BUCKET, (SUB (2) U11649, (2) 11H221 AND T125931)
14B	T59451	1	PIN FASTENER	COUPLER LINKS TO BUCKET, (SUB (2) U11649, (2) 11H221 AND T125931)
17A	T125926	1	PIN FASTENER	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
17A	AU42333	1	PIN FASTENER	BUCKET TO DIPPERSTICK, (SUB (2) U11650, (2) 11H221 AND T125926)
17B	T59450	1	PIN FASTENER	BUCKET TO DIPPERSTICK, (SUB (2) U11650, (2) 11H221 AND T125926)
