BACKHOE HIGH-CAPACITY BUCKETS ( -1968) [02F23]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

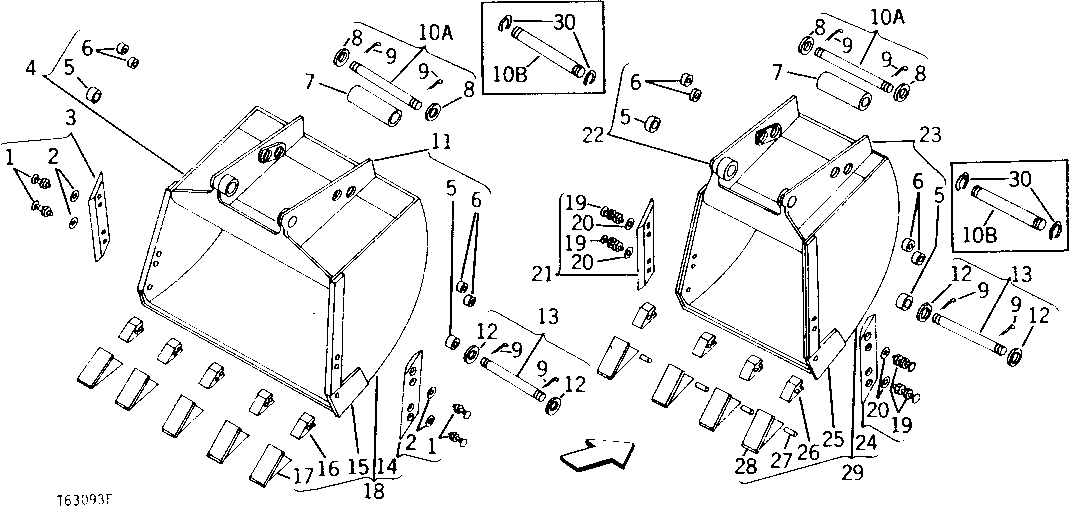

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U14555	6	Lock Nut	-
1	10H1040	6	Bolt	5/8" X 2", (FOR 762 MM (30") BUCKET)
2	24H1368	6	Washer	21/32" X 1-5/16" X 0.090", (FOR 762 MM (30") BUCKET)
3	AU13549	1	CUTTING EDGE	SIDE, L.H. (FOR 762 MM (30") BUCKET)
4	AU13411	1	PLATE	L.H., WITH BUSHINGS (FOR 762 MM (30") BUCKET)
5	U16017	2	BUSHING	DIPPER PIVOT
6	U11121	4	BUSHING	BUCKET PIVOT
7	28H2240	1	BUSHING	1-1/2" X 7"
8	U11649	2	WASHER	-
9	11H221	4	COTTER PIN	3/8" X 2-1/2"
11	AU13410	1	PLATE	R.H. WITH BUSHINGS
12	24H1561	2	Washer	1-3/4" X 2-3/4" X 0.060", (SUB FOR U11650, THIS APPLICATION)
13	AU13559	1	PIN FASTENER	DIPPERSTICK TO BUCKET
14	AU13548	1	CUTTING EDGE	SIDE, R.H. (FOR 762 MM (30") BUCKET)
15	U16030	1	CUTTING EDGE	FRONT (FOR 762 MM (30") BUCKET)
16	U14436	1	SHANK	(FOR 762 MM (30") BUCKET)
17	U14437	1	POINT	(FOR 762 MM (30") BUCKET)
18	-	1	Part 20	HIGH-CAPACITY, 762 MM (30"), COMPLETE, WITH BUSHINGS
19	10H1034	6	Bolt	1/2" X 1-3/4"
19	12H301	6	Lock Washer	1/2"
19	14H826	6	Nut	1/2"
20	24H1162	6	Washer	17/32" X 1-1/4" X 0.060"
21	AU12235	1	CUTTING EDGE	SIDE, L.H.
22	AU13647	1	PLATE	L.H., WITH BUSHINGS
23	AU13646	1	PLATE	R.H., WITH BUSHINGS
24	AU12234	1	CUTTING EDGE	SIDE, R.H.
25	U13926	1	CUTTING EDGE	FRONT, (FOR 457.2 MM (18") BUCKET)
25	U16426	1	CUTTING EDGE	FRONT, (FOR 508 MM (20") BUCKET)
25	U13917	1	CUTTING EDGE	FRONT, (FOR 609.6 MM (24") BUCKET)
26	U13928	1	SHANK	-
27	T40910	1	PIN	(SUB FOR U13927)
28	U13929	1	POINT	-
29	-	1	Part 35	HIGH-CAPACITY, 457.2 MM (18"), COMPLETE, WITH BUSHINGS
29	-	1	Part 36	HIGH-CAPACITY, 609.6 MM (24"), COMPLETE, WITH BUSHINGS
30	T59452	2	SNAP RING	-
10A	AU11366	1	PIN FASTENER	CONTROL LINK TO BUCKET
10B	T59458	1	PIN FASTENER	CONTROL LINK TO BUCKET, (SUB AU11366)
